Orion 7152 User Manual

4
Lock bolt
Alignment screws
(x3)
R.A. clutch
wheel
Elevation
adjustment
handle
Locking screws
(recessed)
Alignment screws
Azimuth adjustment knob (1 of 2)

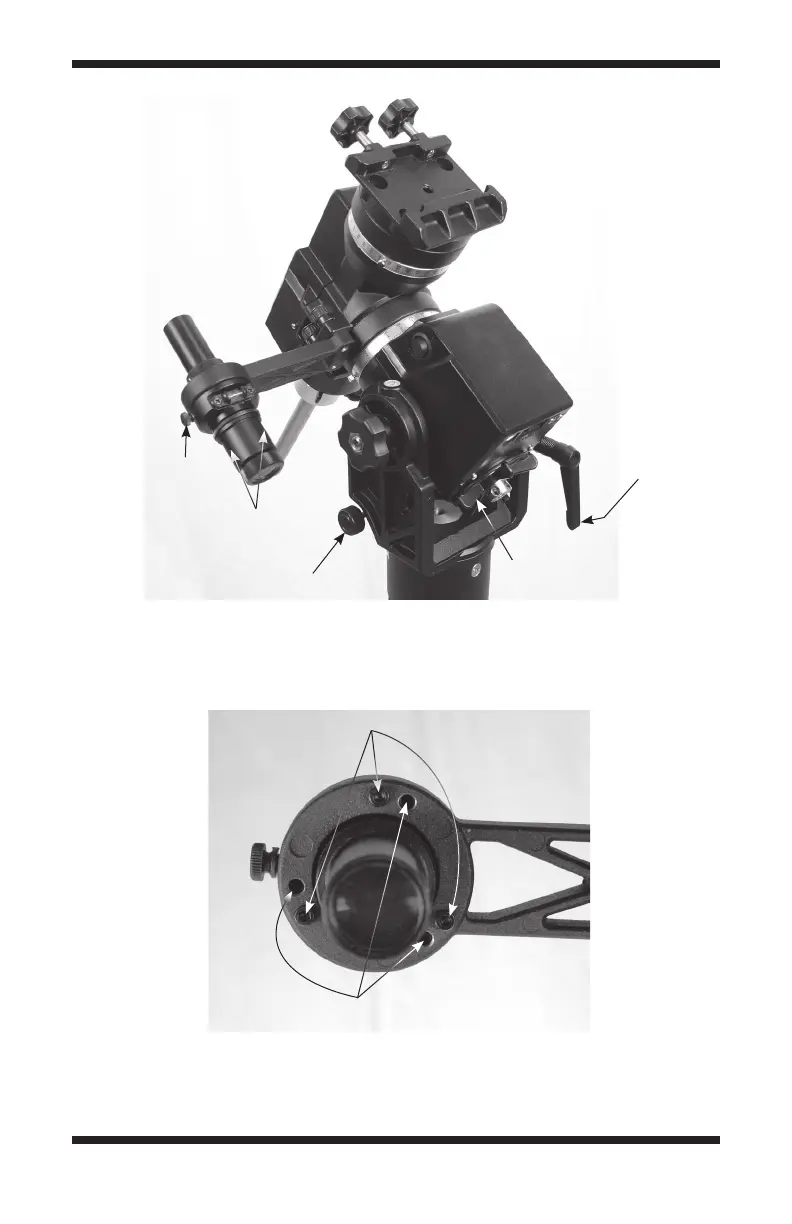

Figure 4. Calibrating the polar scope requires adjusting the mount’s manual elevation
and azimuth controls.
Figure 5. The screws with the raised heads on the front of the polar scope bracket are
the alignment screws; the recessed screws are merely locking screws.
