5.10.2. Closing operation from the open position
Initial conditions: Grounding switch open, circuit-
breaker closed and springs charged.

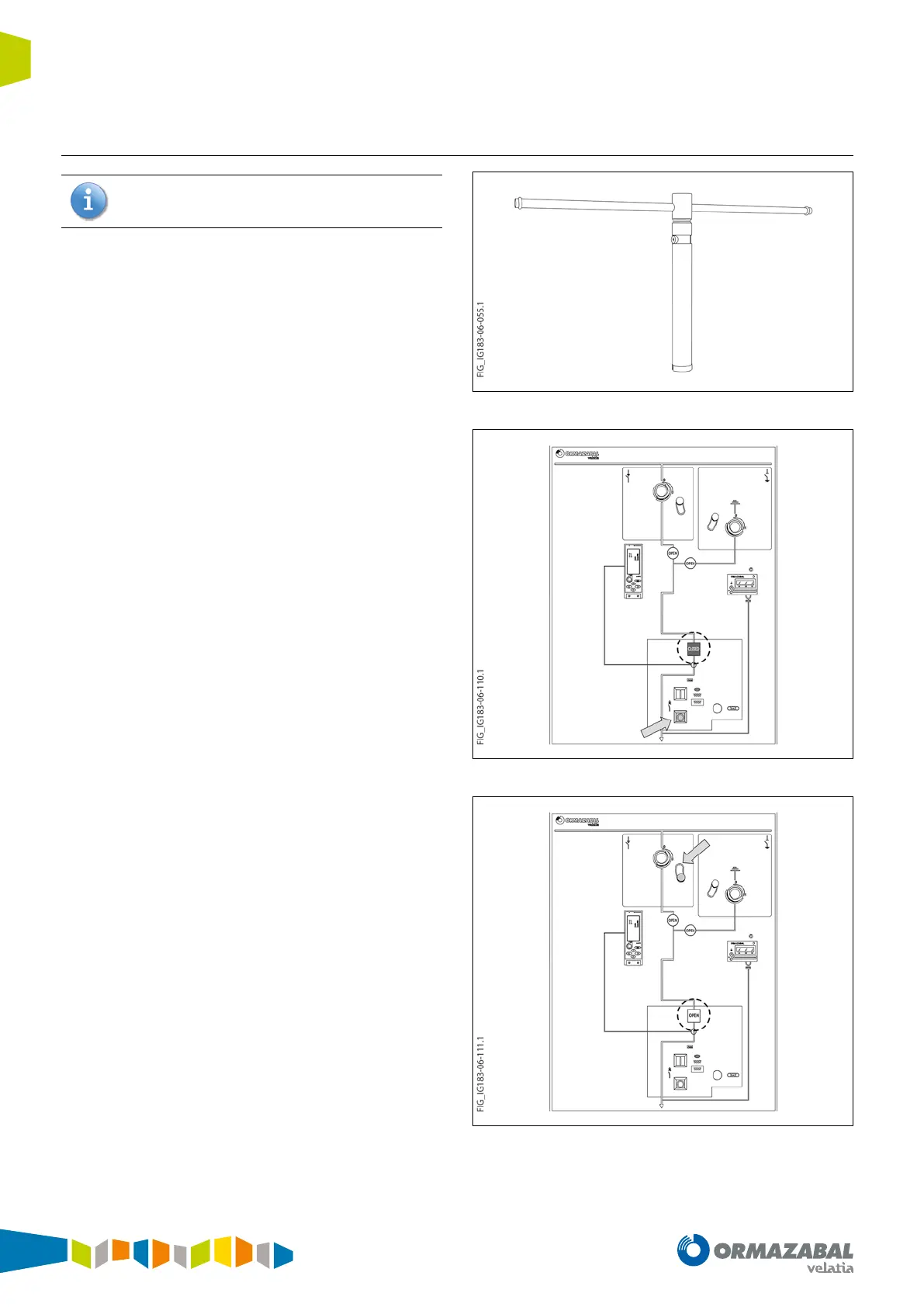

Figure 5.37. B/BM Driving mechanism lever
1. Open the circuit-breaker by pressing the “0” button on
the front push-button and check the status indicator.
Figure 5.38. Press the “0” button
2. Move the access handle in the grey zone to its lower
position.
Figure 5.39. Move the handle in the grey area
