Connect All Neutral Wires
3

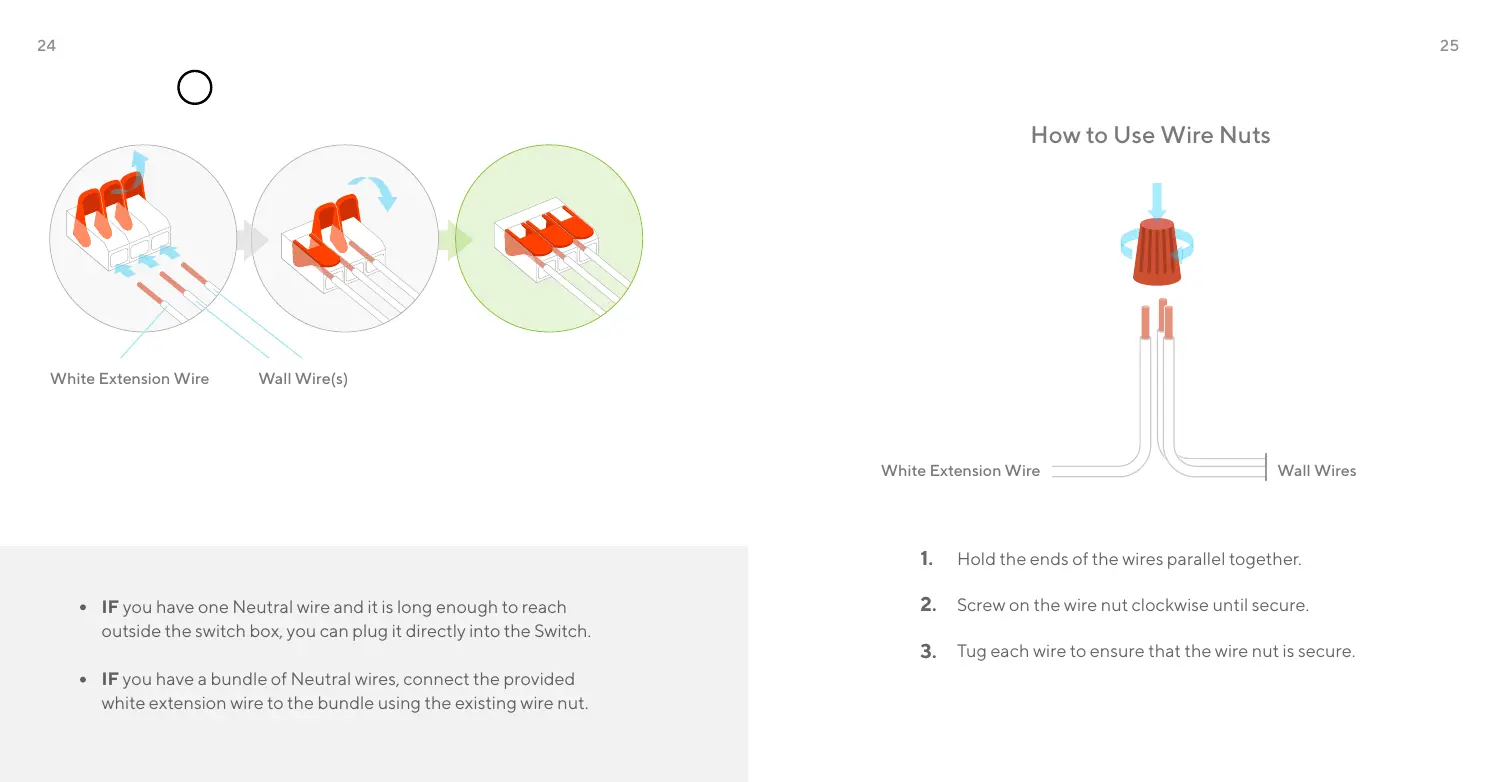

If you have one or two Neutral wires coming out of the wall,
attach them to the provided white extension wire, using the
provided 3-way wire connector.
1 2 3
IF you have one Neutral wire and it is long enough to reach
outside the switch box, you can plug it directly into the Switch.
IF you have a bundle of Neutral wires, connect the provided
white extension wire to the bundle using the existing wire nut.
Tug each wire to ensure that the wire nut is secure.
Screw on the wire nut clockwise until secure.
Hold the ends of the wires parallel together.
