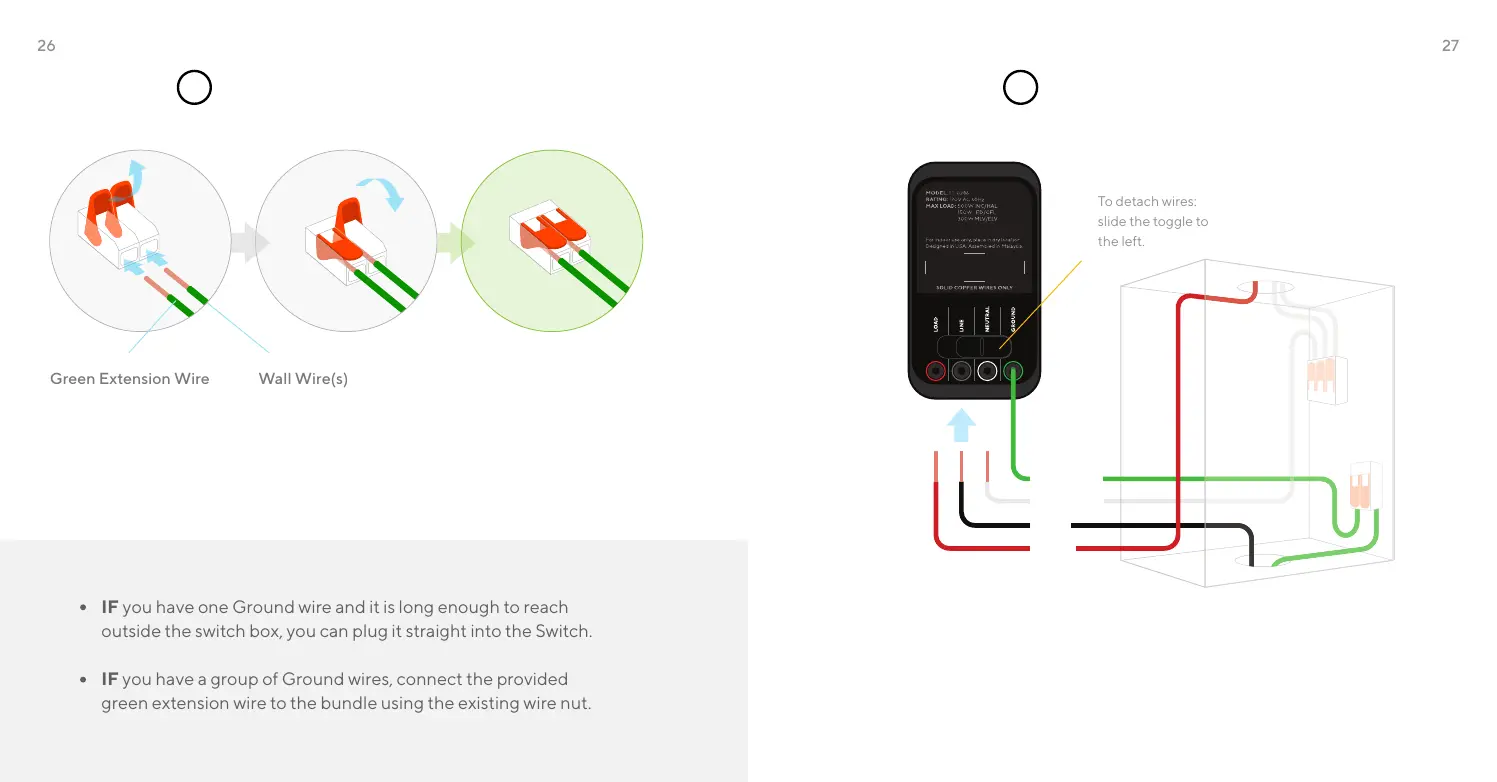

Using the provided wire connector, attach the Ground wire
coming from the wall to the provided green extension wire.
Connect All Ground Wires
4
IF you have one Ground wire and it is long enough to reach
outside the switch box, you can plug it straight into the Switch.
IF you have a group of Ground wires, connect the provided
green extension wire to the bundle using the existing wire nut.
1 2 3
Plug Wires into Switch
5
Simply plug in the wires from your wall to the
corresponding ports on the back of the Orro Switch
(wires will lock in automatically).
To detach wires, hold slider to the left.
LOAD
LINE
NEUTRAL
GROUND
To detach wires:
slide the toggle to
the left.
*
