THE ORVIS COMPANY | ANDOVER, HANTS, UK | www.orvis.co.uk
Orvis Technical Questions: reelrepair@orvis.co.uk or
+ 44-1264-349526
Mach

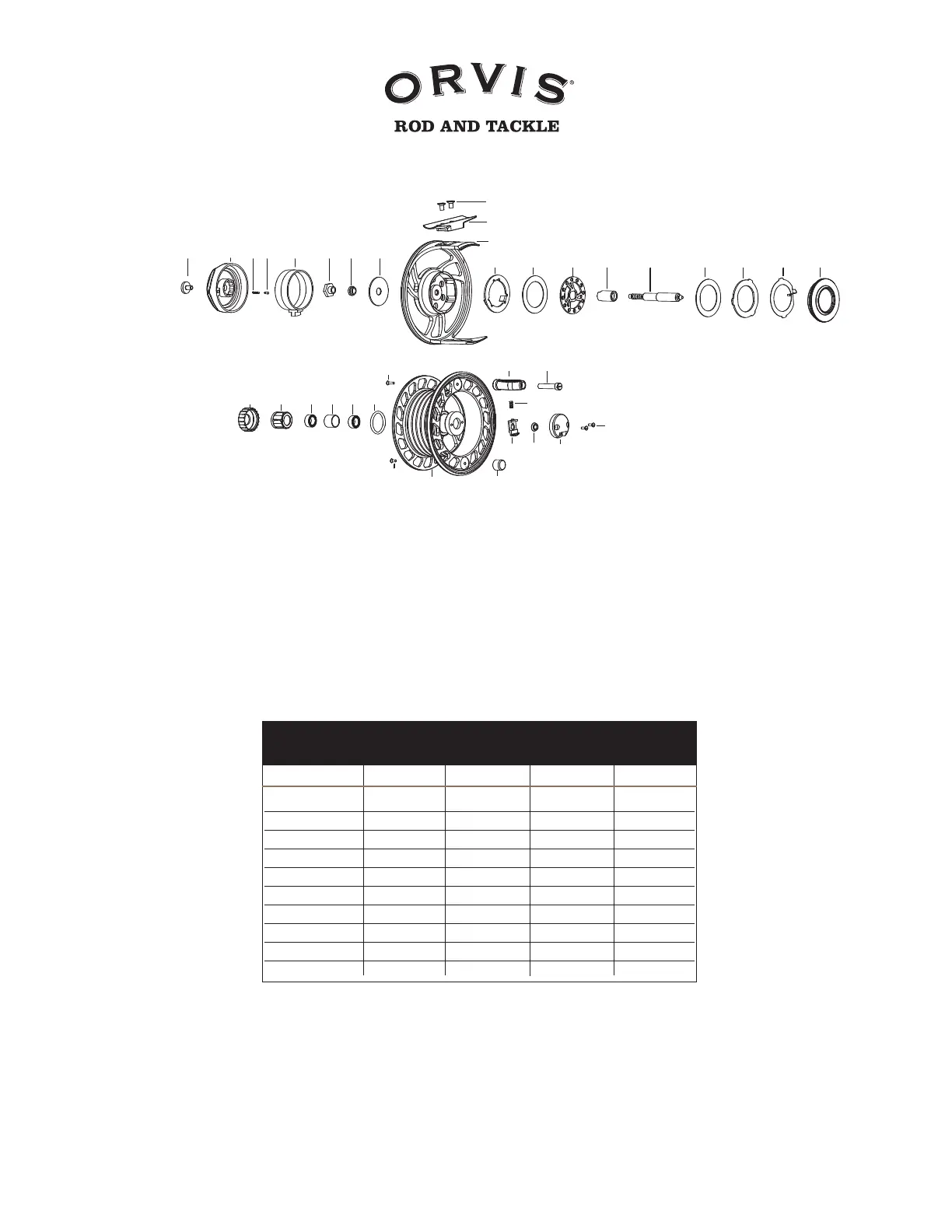

REEL ASSEMBLY
1 Knob Retaining Screw
2 Drag Knob
3 Detent Spring
4 Detent Plunger
5 Drag Knob Stop
6 Drag Adjustment Nut
7 Drag Nut Slider
8 Disc Washer Spring
9 Foot Screws
10 Reel Foot
11 Reel Body
12 Bottom Clutch Plate
13 Broflon Drag Washer
14 Stainless Steel
Clutch Plate
15 Drive Spindle
16 Center Spindle
17 Broflon Drag Washer
18 Top Clutch Plate
19 Clicker Spring
20 Drag Cover
21 Spool Release Screws
22 Spool Release Cover
23 Handle Spindle
24 Handle Knob
25 Spool Release Trigger
Spring
26 Oiler Pad
27 Spool Release Trigger
28 Counterweight
29 Spool
30 Handle Screw
31 Counterweight Screw
32 O-Ring
33 Sealed Stainless Steel
Radial Bearing
34 Bearing Spacer
35 Sealed Stainless Steel
Radial Bearing
36 One-Way Clutch Bearing
37 Clutch Retainer
Mach Reel Specifications
Capacity in Yards
Stated capacities are based on Orvis 20-lb. Dacron
®
and Orvis
Wonderline
™, a standard weight-forward floating fly line. Alternate capaci-
ties are based on
*30-lb. Orvis Dacron Backing.
WF4 150 yds
WF5 125
WF6 100
WF7 75 225 yds
WF8 200 275* yds
WF9 175 250*
WF10 150 225* 375* yds
WF11 200* 350*
WF12 325*
WF13 300*
III IV V VI
LINE WEIGHT
MACH REEL
Capacity Chart
Mach III weight: 6
1
⁄8 oz. | Mach IV weight: 6
1
⁄2 oz. | Mach V weight: 8
1
⁄16 oz.
Mach VI weight: 8
9
⁄16 oz.
1 2 3 4 5 6 7 8
9
10
11
12 13 14 15 16 17 18 19 20
21
27 26 22
25
24 23
29
30
28
31
37 36 35 34 33 32
