Section 3.0 - INSTALLATION
3.1. CLEARANCES TO COMBUSTIBLES
To install your appliance correctly, it is extremely important to respect all clearances to any
combustibles as mentioned on your insert certification label. (See figure 3.1 and table 3.1)

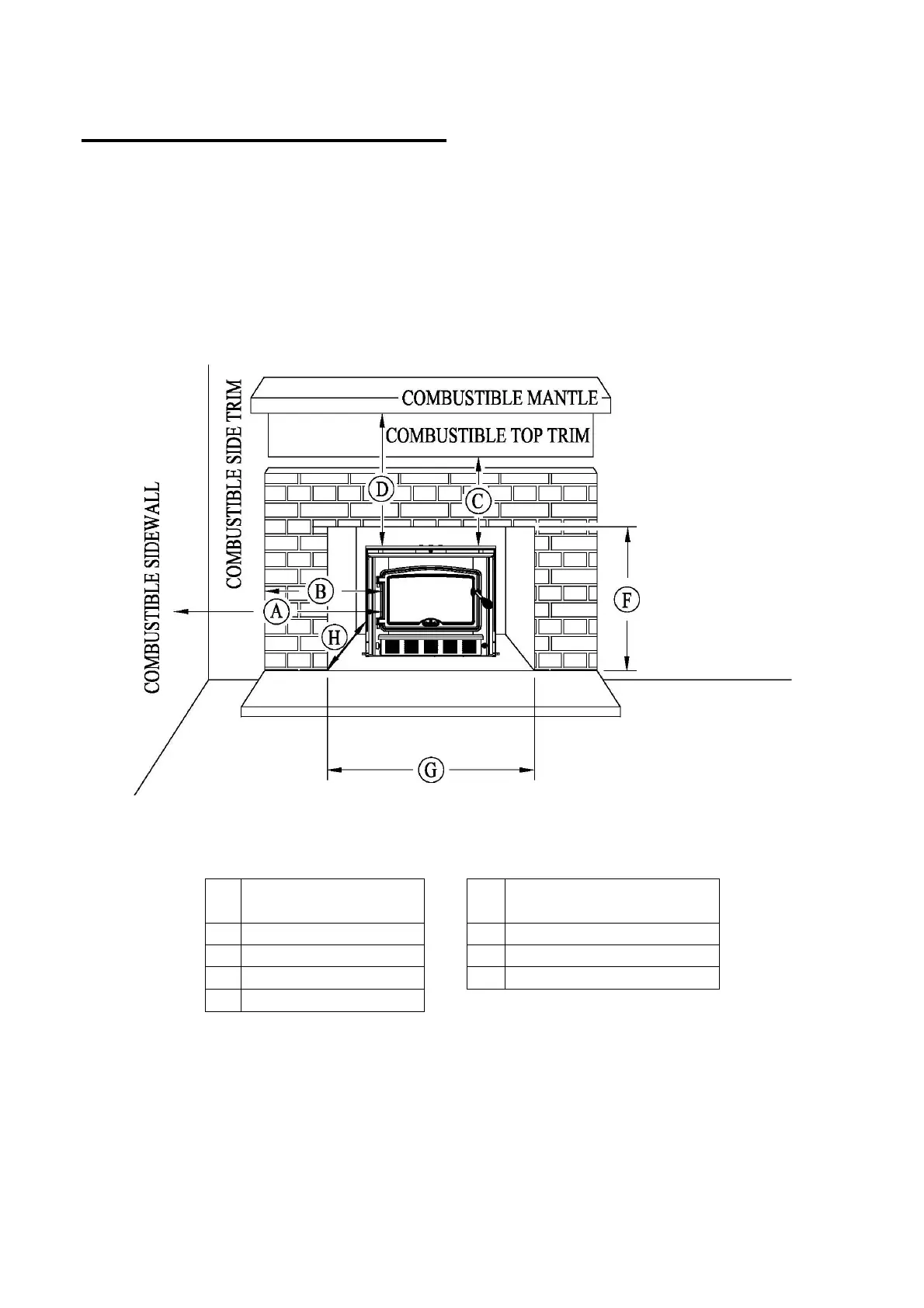

Figure 3.1
CLEARANCES
MINIMUM MASONRY
OPENING
A
13’’ (330 mm)
F
24” (610 mm)
B
22’’ (559 mm)
G
29” (737 mm)
C
10’’ (254 mm)
H
16.5” (420 mm)
D
29’’ (737 mm)
Table 3.1
Note: If side mantle protrudes more than 1.5” (38mm) in front of face of fireplace, then use
sidewall clearance.
