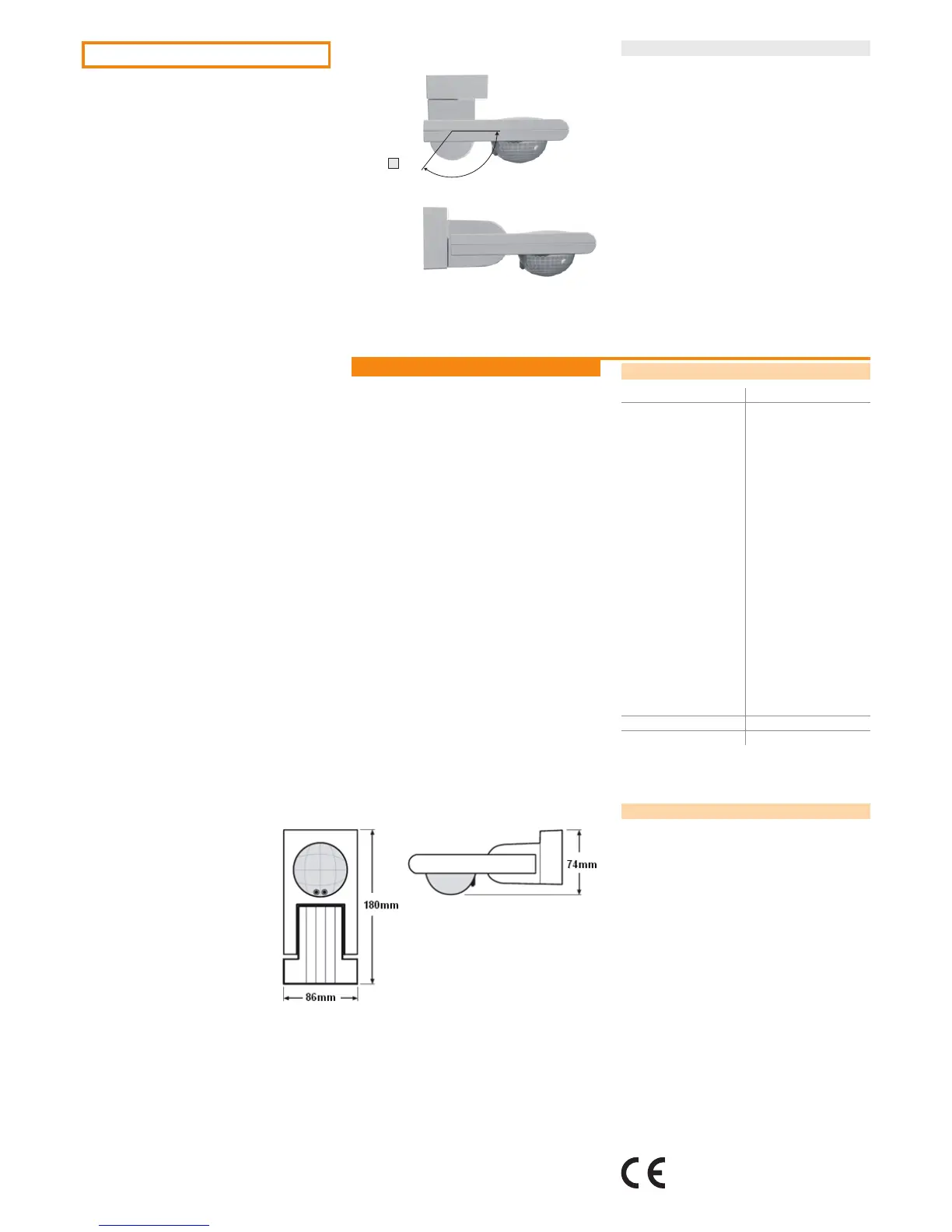

Verical detection area
R Turn the swivel arm to adjust the orientation (max. 120°).
Appendix
Technical data
Operating voltage 230 V AC/50-60 Hz
Switch output load capacity Incandescent lamp: 2300 W
HV halogen lamps: 1500 W
Fluorescent lamps: 1000 VA
Inductive load: 600 VA
Max. number of ECGs:
5x QT-FQ 2x80 or
QTP5 1x80 or
QTP5 2x54
7x QTP5 2x14-35 or
QTP5 1x54
9x QTP5 1x14-35
5x QTP8 2x58
9x QTP8 1x58
5x QT-FIT8 2x58 or
QT-FIT8 2x36
9x QT-FIT8 1x58 or
QT-FIT8 1x36
5x QTi 2x35/49/80
10x QTi 2x28/54
14x QTi 1x28/54
Operating temperature –30 °C ... +70 °C
Protection type IP 55
Dimensioned drawing
The Low Voltage Directive has been complied with according to
EN 60669-2-1.
Conformity with the relevant EU directives is
conrmed by the CE symbol.
