2.3 Battery Charging
Four batteries are provided, two for the wristband and two
spares. Each battery is equipped with a LED display alert-
ing you when the battery is low on charge. If the battery is
low on charge the LED will illuminate RED. The LED will
remain illuminated until the battery is adequately charged.
Note: A fully charged device can be employed for 16hours
depending on its use.
Charging time from full discharge is approximately 2 hours.
i-limb
®
Power Pack batteries for i-digits™ should only be
charged using the battery charger (fig.6) supplied. Place
the batteries in the charger as illustrated. Insert the char-
ger lead from the mains charger into the charger base unit.
Insert the mains charger into the power outlet (fig.5).
On the base plate (fig.7) of the charger you will see the vari-
ous light sequences:
• Middle light on: Charger is plugged in
• 2nd and 5th lights blinking Green: Batteries are
charging
• 2nd and 5th lights solid Green: Batteries are charged
• 1st and 4th Red lights on: Battery fault, unplug and
try again. If lights continue to illuminate, contact
Customer Support.

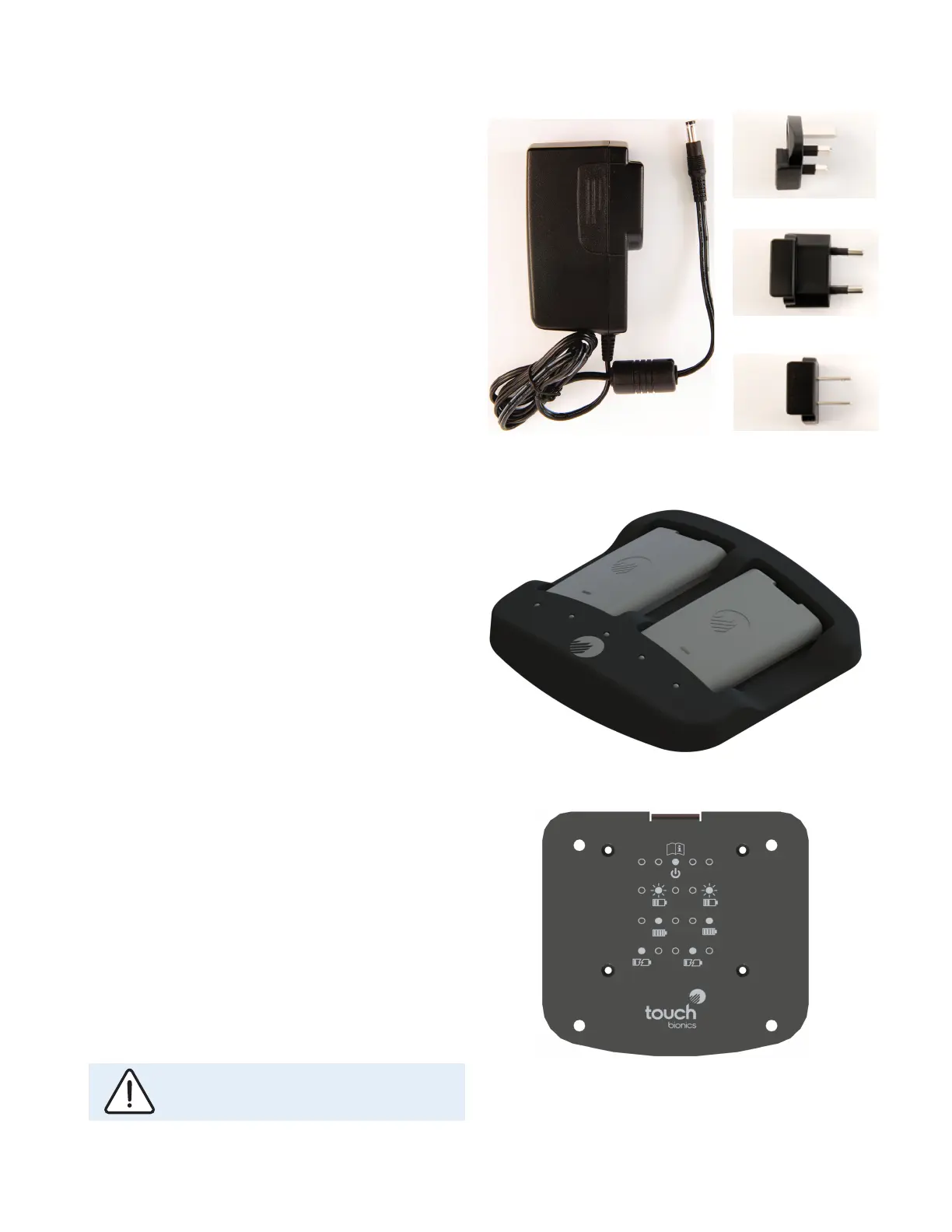

Fig. 5: Charger
Fig. 6: Charger base unit
Fig. 7: Base plate
UK
Europe
USA and Japan
Only use the plug to disconnect the charger,
never pull the cable to remove the lead.
