INSTALLATION INSTRUCTIONS
Installation instructions for exhaust systems for duct fan, type CK.
Exhaust
system
Exhaust system for ceiling
Exhaust system
Installation with duct clamps for duct fan CK.
Duct clamp, type MK is made of pre-galvanized steel
and is rubber-lined to seal connection and absorp vibra-
tions.The clamp allows the fan to be easily removed for
inspection and cleaning.
Available in sizes: Ø 80, 100, 125, 150, 160, 200, 250,
315, 355, 400, 500 and 630 mm.
Duct clamps

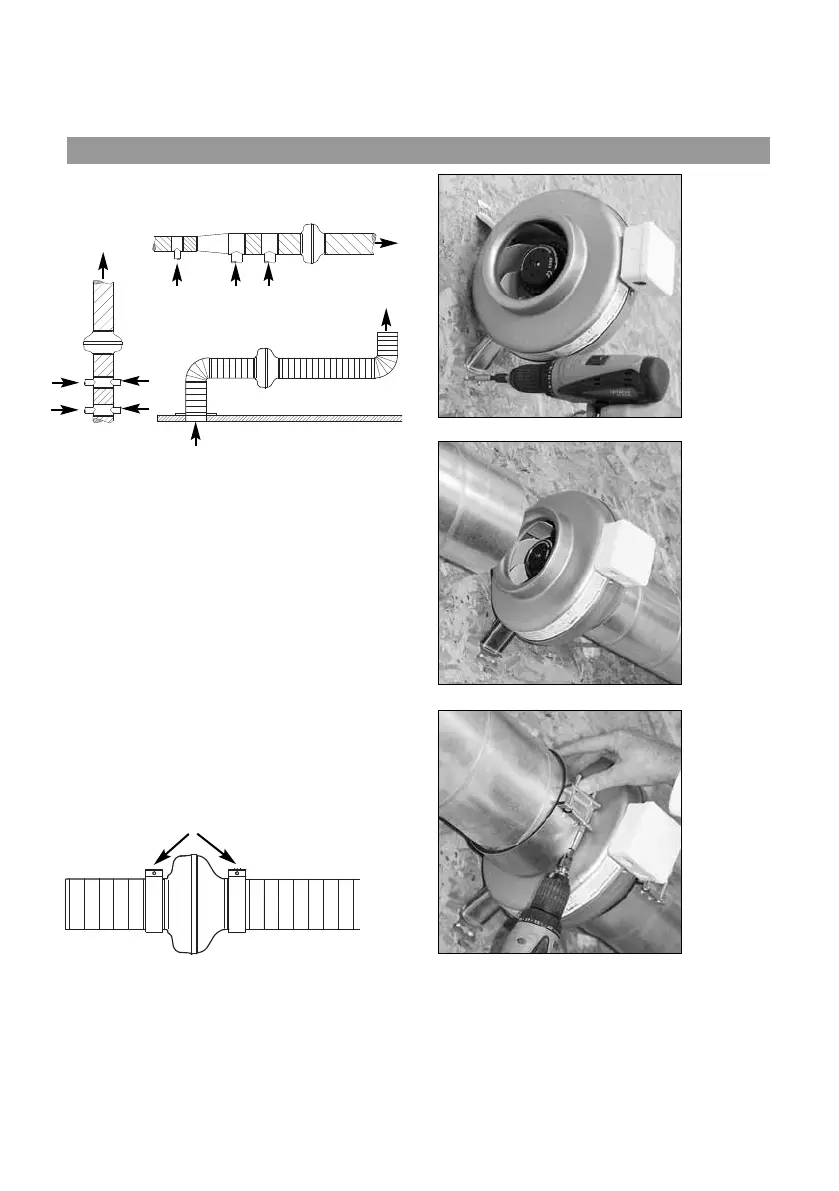

1.
Mark the
measure of A
on the wall or
roof and then
fasten the fan.
2.
Put together
the ducts
and the fan.
3.
Strap the
duct clamps
on each side
of the fan
with the
screws.
