OsteoSys DEXXUM T - Adjusting Detector Timing Belt; Jig for Adjusting Tension of Detector Timing Belt

Service Manual (English)
OsteoSys Co., Ltd.
Model Designation: DEXXUM T DOC. No. : OT09-2F7431-SVM-05
Service Manual Service Description
143
C. Adjusting detector timing belt
To adjust detector timing belt tension, attach detector timing belt tension adjusting
jig as shown in Figure 4-11 to the bottom of Pulley, connect torque wrench(No. 1
in Figure 5-11), set torque value to 8KG. Loosen Brkt’ wrench bolts next to Pulley
to move Brkt’ (No. 2 in Figure 5-11).
Once tension is adjusted, re-fix Brkt’ and check timing belt by moving several
times with hands.
If no abnormality detected, turn the equipment ON, check movement using Test
program.

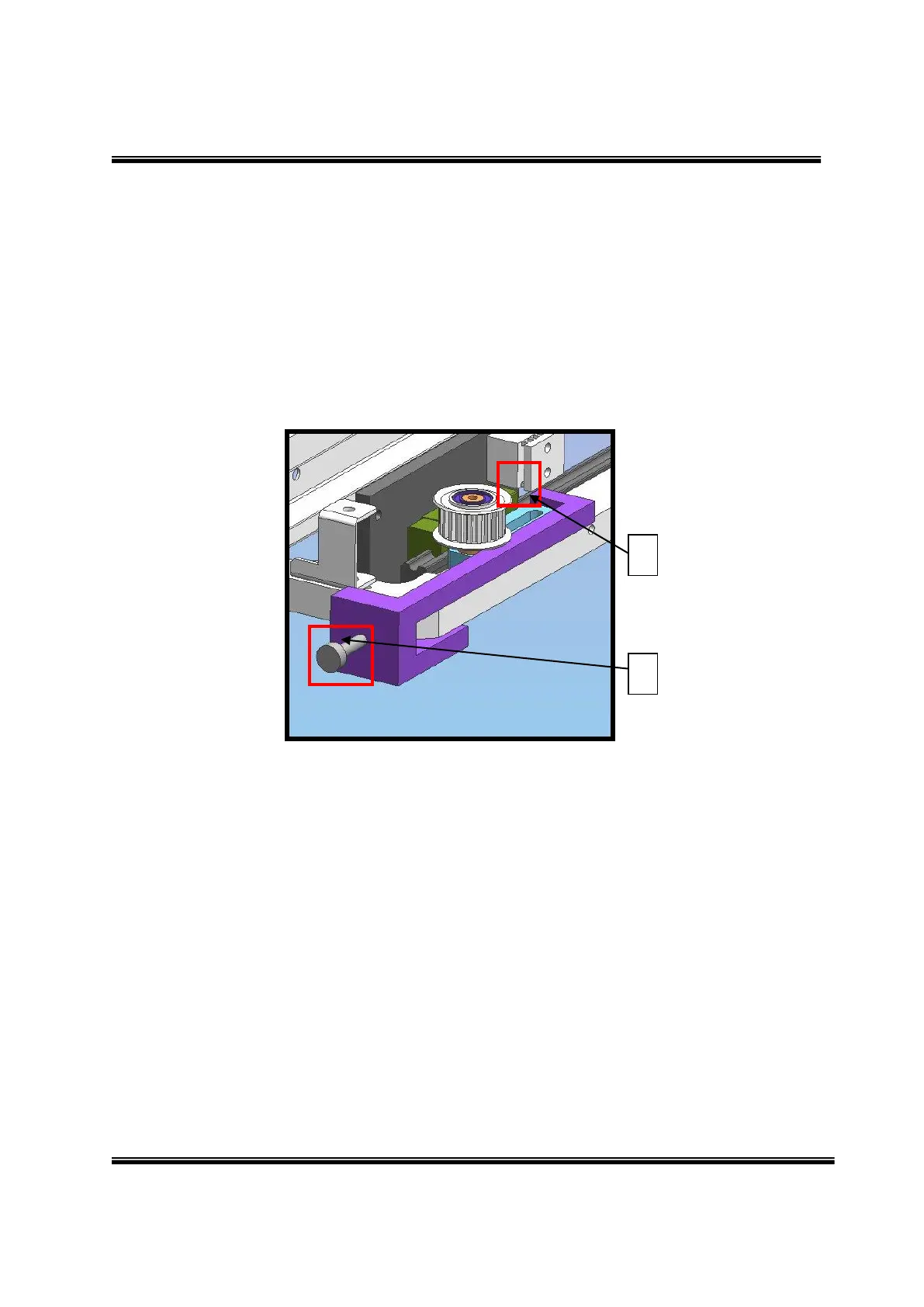

Figure 5-11. Jig for adjusting tension of detector timing belt
After adjusting tension of detector timing belt, make sure to check for system
Alignment
1
2
