OsteoSys DEXXUM T - Replacing Curtain Film Roller and Roller Shaft; Locations of Curtain Film Roller and Shaft; Removing Snap Ring

Service Manual (English)
OsteoSys Co., Ltd.
Model Designation: DEXXUM T DOC. No. : OT09-2F7431-SVM-05
Service Manual Service Description
190
7-17. Replacing curtain film roller and roller shaft
Curtain roller Top 2EA (FRU NO: FRU009-018)
Curtain roller Bottom 2EA (FRU NO: FRU009-19)
Roller shaft 2EA (FRU NO: FRU009-20)
‘7-12. Referring to ‘Replacing curtain film’, remove curtain film from the equipment.
Replacing curtain film ☞ 7-12. Replacing curtain film

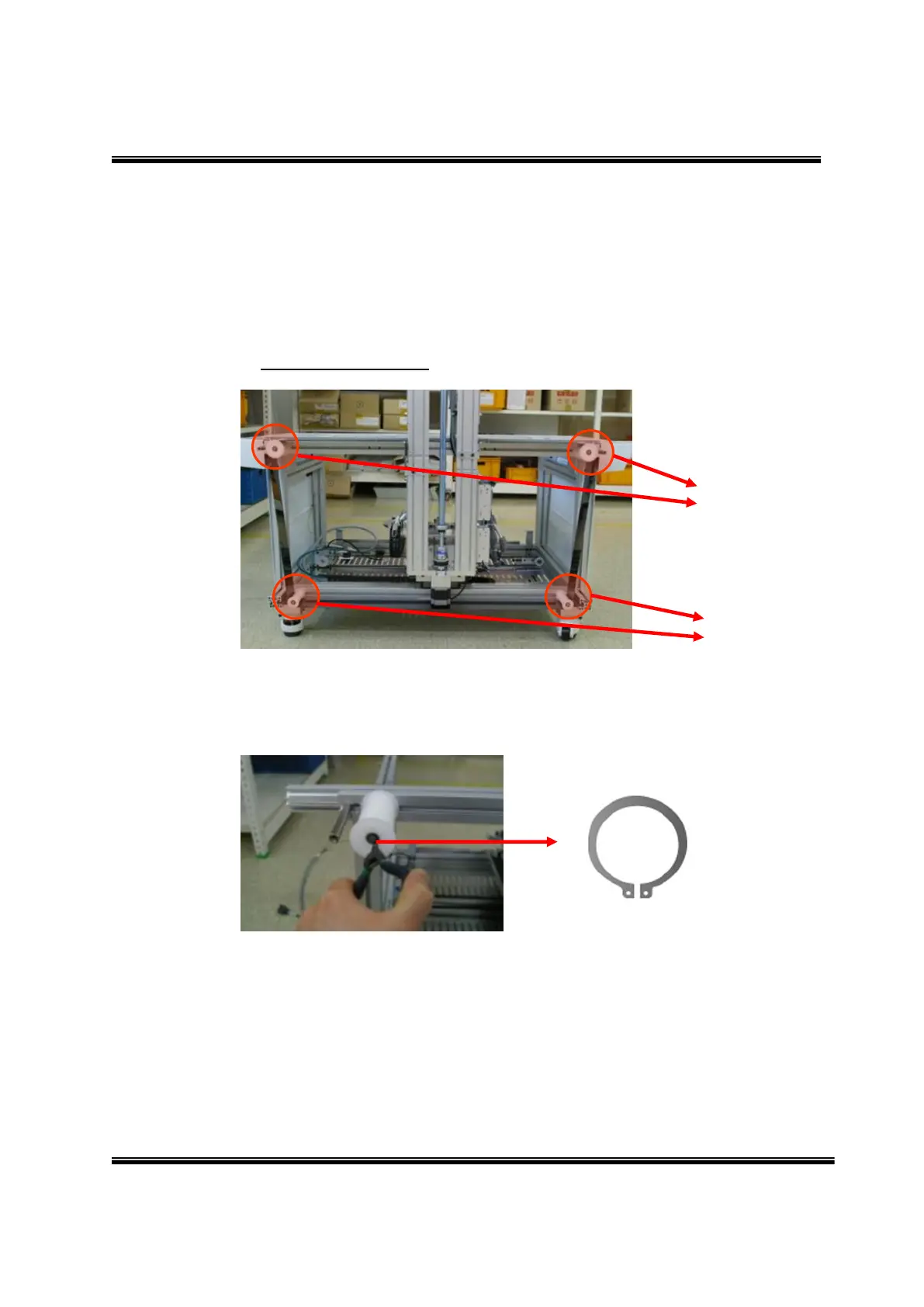

Figure 7-77. Locations of curtain film roller and shaft
A. Replacing curtain roller
1) To replace damaged roller, remove ring by opening snap ring.
See Figure 6-73.
Figure 7-78. Removing Snap ring
Curtain roller Top
Curtain roller Bottom
