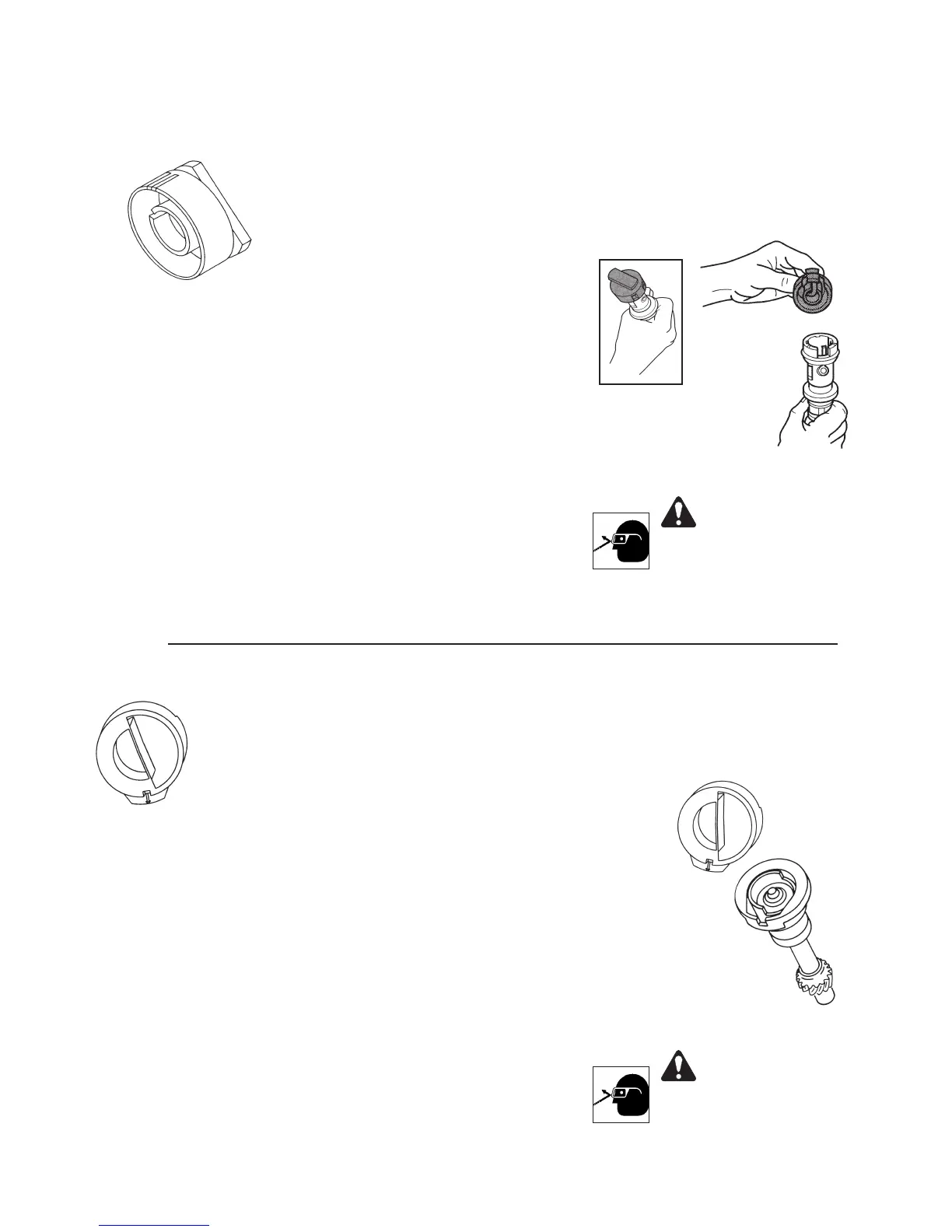

511537 (6470) Ford Camshaft Sensor Synchronizer Tool
Application: 1999 – 2002 5.0L V8 Explorer, Mountaineer
2004 – 2007 3.9L Freestar (VIN 6)
2004 3.9L Monterey (VIN 6)
1999 – 2004 3.8L V6 Mustang
1999 – 2003 3.8L V6 Windstar
CAUTION: Before removing the camshaft sensor housing
assembly, note the position of the camshaft sensor electrical
connector. To prevent equipment damage, the connector
MUST be reassembled in the same position during installation.
1. Rotate crankshaft to set No. 1 cylinder at top dead center of
compression stroke.
2. Engage camshaft sensor housing vane in slot of tool No. 511537
(6470).
3. Rotate tool on camshaft sensor housing until tool engages
housing notch. (Tool should be square and in contact with entire
top of housing.)
4. Install camshaft sensor housing and tool assembly into engine
according to instructions in the vehicle service manual. Torque
fasteners to factory specications.
WARNING: Wear eye
protection that meets ANSI
Z87.1 and OSHA standards.
WARNING: Wear eye
protection that meets ANSI
Z87.1 and OSHA standards.
Camshaft
Sensor
Housing
No. 511537
(6470)
Note: Same as Ford No. 303-630.
511538 (6471) Ford Camshaft Sensor Synchronizer Tool
Application: 1993 – 1995 3.0L V6 Ford Taurus/Mercury Sable
CAUTION: Before removing the camshaft sensor housing
assembly, note the position of the camshaft sensor electrical
connector. The connector MUST be reassembled in the same
position during installation.
1. Rotate crankshaft to set No. 1 cylinder at top dead center of
compression stroke.
2. Engage camshaft sensor housing vane in slot of tool No. 6471
(511538).
3. Rotate tool on camshaft sensor housing until tool engages housing
notch. (Tool should be square and in contact with entire top of
housing.)
4. Install camshaft sensor housing and tool assembly into engine
according to instructions in the vehicle service manual. Torque
fasteners to factory specications.
Camshaft
Sensor
Housing
No. 6471
(511538)
Note: Same as Ford No. 303-453 (T93P-12200-A).
