OTC 6489 - 511546 (6478) Ford Camshaft Gear Holding Tool; 511547 (6479) Ford Crankshaft Holding Tool

Parts List & Operating Instructions
511547 (6479) Ford Crankshaft Holding Tool
Application: 1997 – 2011 4.0L SOHC Explorer (V6), Mountaineer (V6), Ranger (VIN E)
1997 – 2008 4.0L SOHC Explorer, Mountaineer, Ranger (VIN X)
2005 – 2010 4.0L SOHC Mustang (VIN N)
511546 (6478) Ford Camshaft Gear Holding Tool
Application: 1997 – 2011 4.0L SOHC Explorer (V6), Mountaineer (V6), Ranger (VIN E)
1997 – 2008 4.0L SOHC Explorer, Mountaineer, Ranger (VIN X)
2005 – 2010 4.0L SOHC Mustang (VIN N)

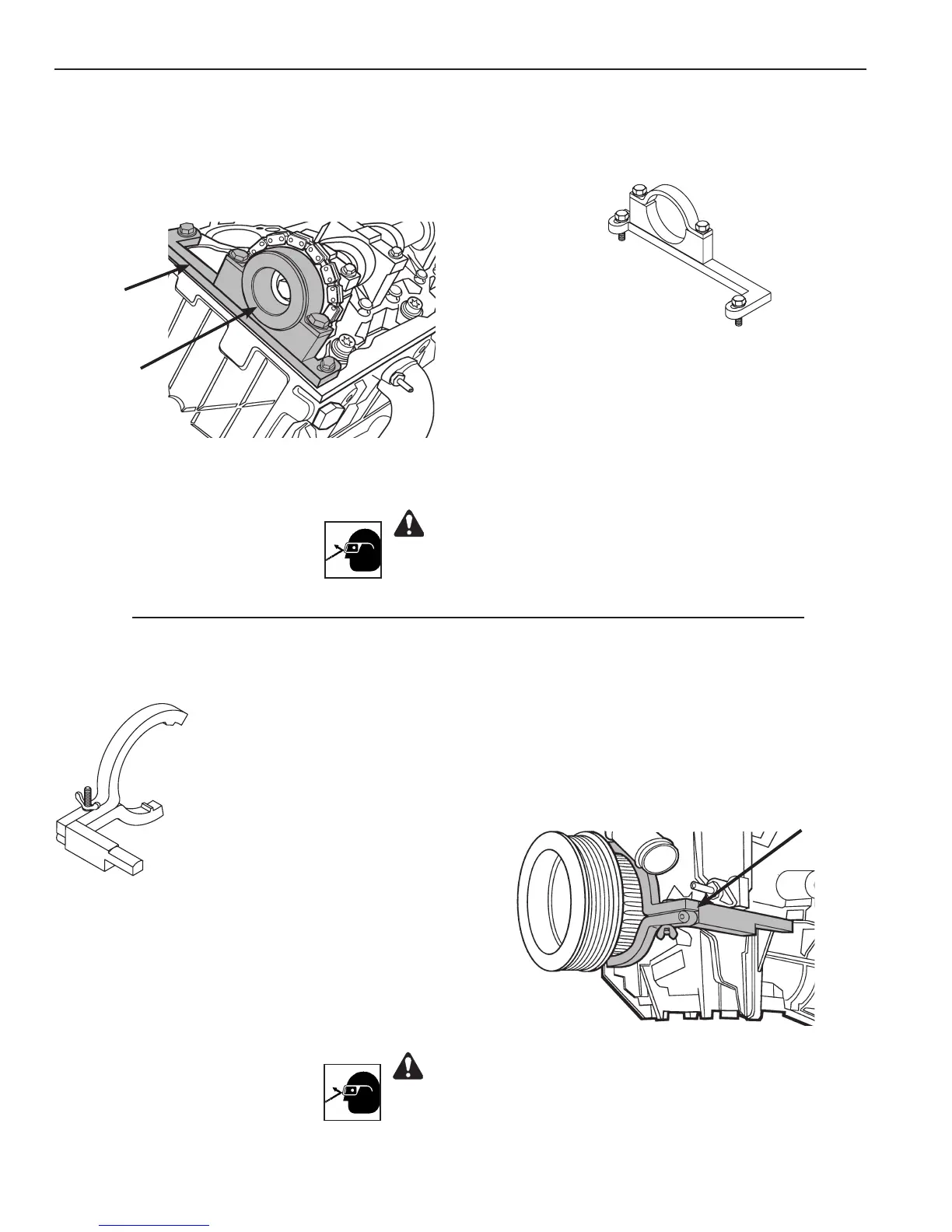

1. Install tool Nos. 511546 (6478) and 511550 (6482)
on the camshaft as shown.
2. Secure tool No. 511546 (6478) to the cylinder head.
3. Service the timing chain as required according to
instructions in the vehicle service manual.
4. Torque fasteners to factory specications.
No. 511546
(6478)
No. 511550
(6482)
1. Install tool No. 511547 (6479) on the
crankshaft damper.
2. Rotate the engine counterclockwise (CCW)
until the tool stops against the engine block.
3. Service the timing chain as required
according to instructions in the vehicle
service manual.
4. Torque fasteners to factory specications.
No. 511547
(6479)
Note: Same as Ford No. 303-573 (T97T-6303-A).
WARNING: Wear eye
protection that meets ANSI
Z87.1 and OSHA standards.
WARNING: Wear eye
protection that meets ANSI
Z87.1 and OSHA standards.
