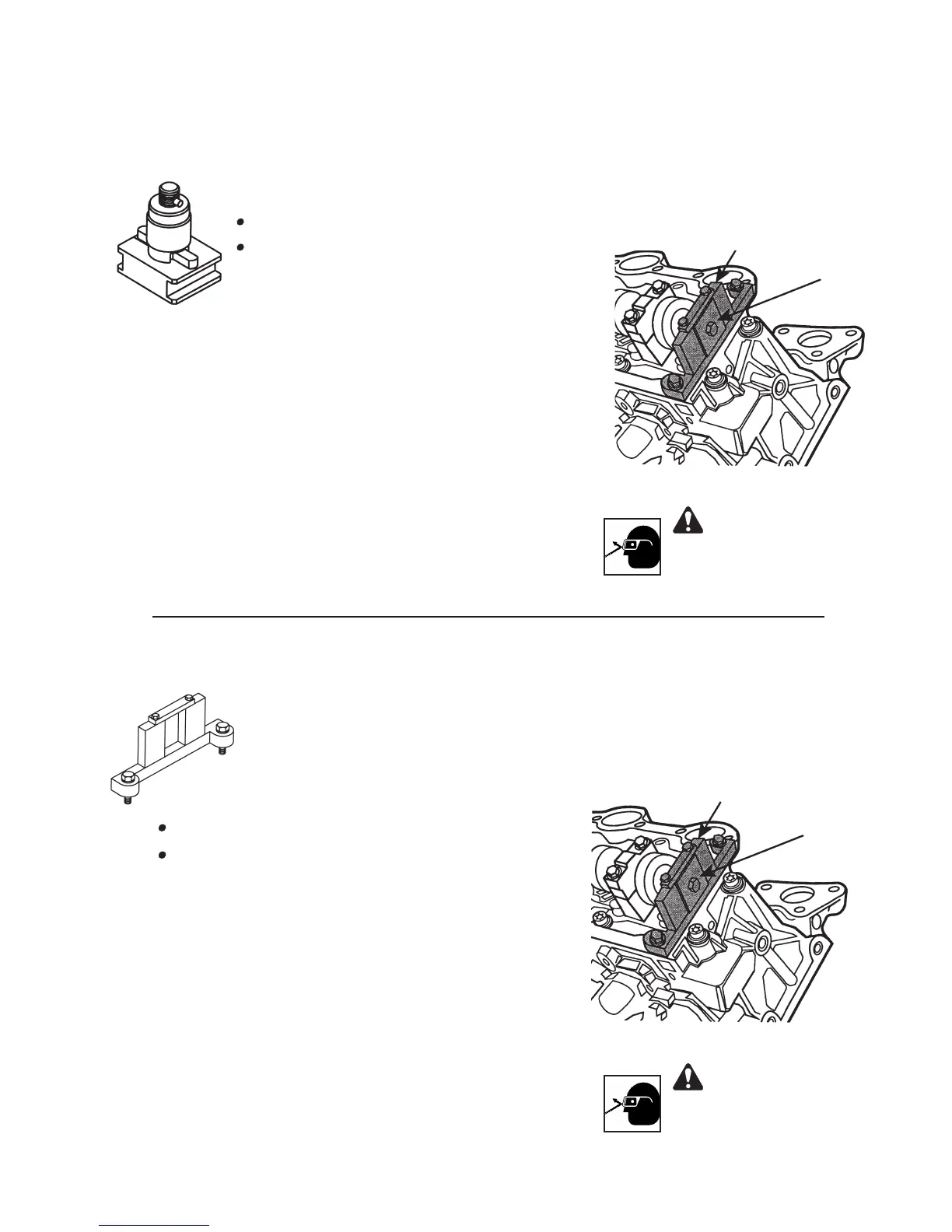

OTC 6489 - 511548 (6480) Ford Camshaft Holding Tool Adapter; 511549 (6481) Ford Camshaft Holding Tool

511548 (6480) Ford Camshaft Holding Tool Adapter
Application: 1997 – 2011 4.0L SOHC Explorer (V6), Mountaineer (V6), Ranger (VIN E)
1997 – 2008 4.0L SOHC Explorer, Mountaineer, Ranger (VIN X)
2005 – 2010 4.0L SOHC Mustang (VIN N)
511549 (6481) Ford Camshaft Holding Tool
Application: 1997 – 2011 4.0L SOHC Explorer (V6), Mountaineer (V6), Ranger (VIN E)
1997 – 2008 4.0L SOHC Explorer, Mountaineer, Ranger (VIN X)
2005 – 2010 4.0L SOHC Mustang (VIN N)
No. 511549
(6481)
No. 511548
(6480)
Note:
• Same as Ford No. 303-576 (T97T-6256-D).
• This tool is used with No. 511549 (6481)
Ford Camshaft Holding Tool.
1. Install tool Nos. 511548 (6480) and 511549 (6481) on
the camshaft as shown.
2. Secure tool No. 511549 (6481) to the cylinder head.
3. Service the timing chain as required according to
instructions in the vehicle service manual.
4. Torque fasteners to factory specications.
1. Install tool Nos. 511548 (6480) and 511549 (6481) on
the camshaft as shown.
2. Secure tool No. 511549 (6481) to the cylinder head.
3. Service the timing chain as required according to
instructions in the vehicle service manual.
4. Torque fasteners to factory specications.
No. 511549
(6481)
No. 511548
(6480)
Note:
• Same as Ford No. 303-577 (T97T-6256-C).
• This tool is used with No. 511548 (6480) Ford
Camshaft Holding Tool Adapter.
WARNING: Wear eye
protection that meets ANSI
Z87.1 and OSHA standards.
WARNING: Wear eye
protection that meets ANSI
Z87.1 and OSHA standards.
