User’s Guide of DO3000 Door Operator
Lead the green future All rights reserved © OTIS 37/48

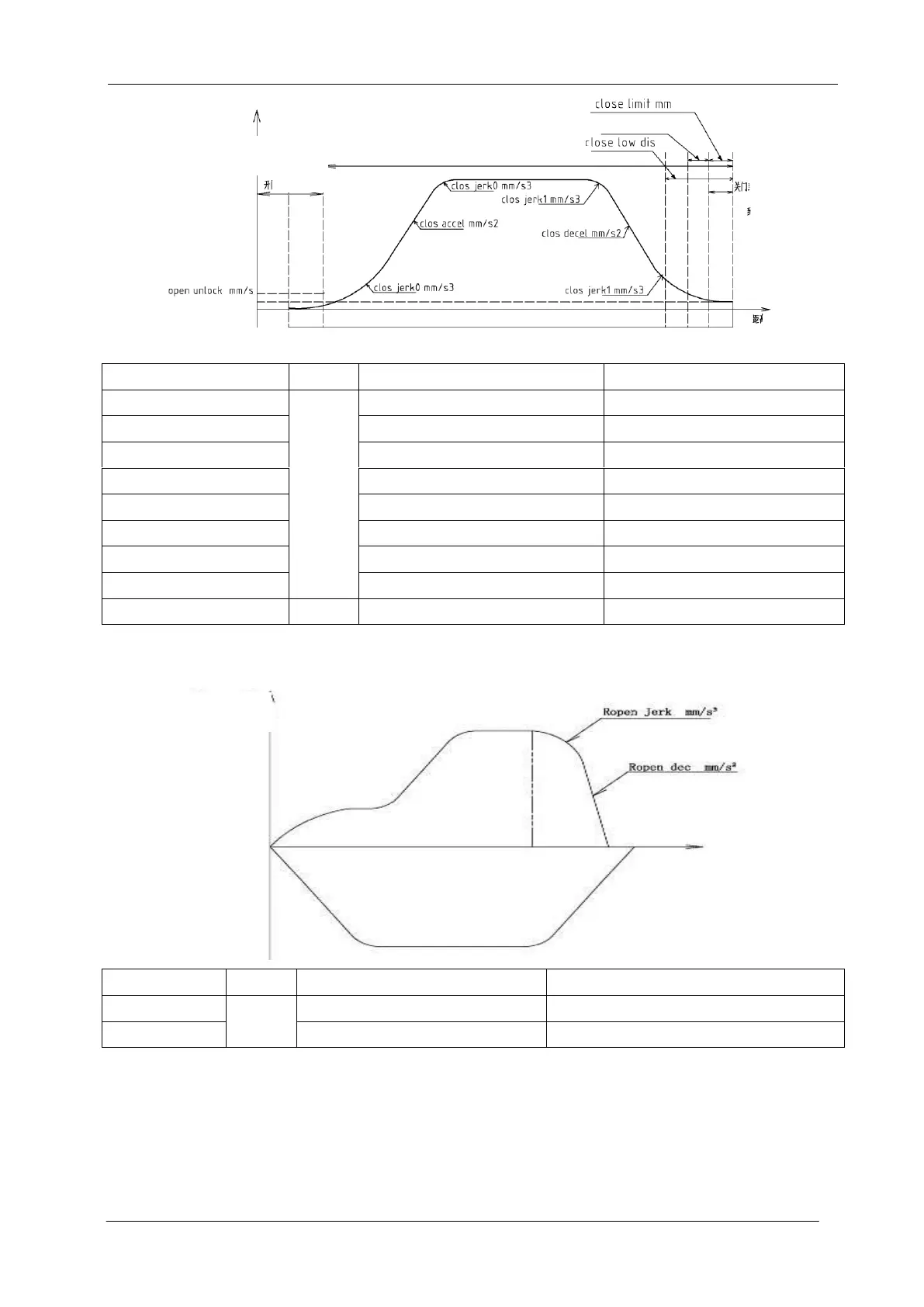

Fig. 3-13 Close Curve
Parameters
Menu
Function No. and Position
Description
Close arrive mm/s
3311
11
Close arrive speed
Close low dis mm
12
close low-speed distance
Close accel mm/s2
13
Close acceleration
Close jerk0 mm/s3
14
Close jerk acceleration
Close decel mm/s2
15
Close deceleration
Close jerk1 mm/s3
16
Close jerk deceleration
Close unlock mm/s
17
Close unlock speed
Close unlock S%
18
Close unlock distance
Close limit mm
3315
19
Close arrive position
3.5.3 Reopen curve
Reopen curve is as shown in Fig.3-14.
Parameters
Menu
Function No. and Position
Description
Ropen Dec
3315
21
Reverse open deceleration
Ropen Jerk
22
Reverse open jerk deceleration
Fig. 3-14 Reopen curve
3.6 Common Troubleshooting
You can view the fault code through server. Enter the menu 321 to view the current fault, and enter the
menu 322 to view the historical fault. Enter the menu 324, and press ENTER key to clear the fault.
3.6.1 Door operator can not open the door
Control system issues the open/close signal, but the door operator can not open / close the door
Speed mm/s
Moving process of door
Close arrive
Position hold
Open
arrive
Distance mm
Close arrive switch position
Speed mm/s
Time s
