User’s Guide of DO3000 Door Operator
Lead the green future All rights reserved © OTIS 5/48

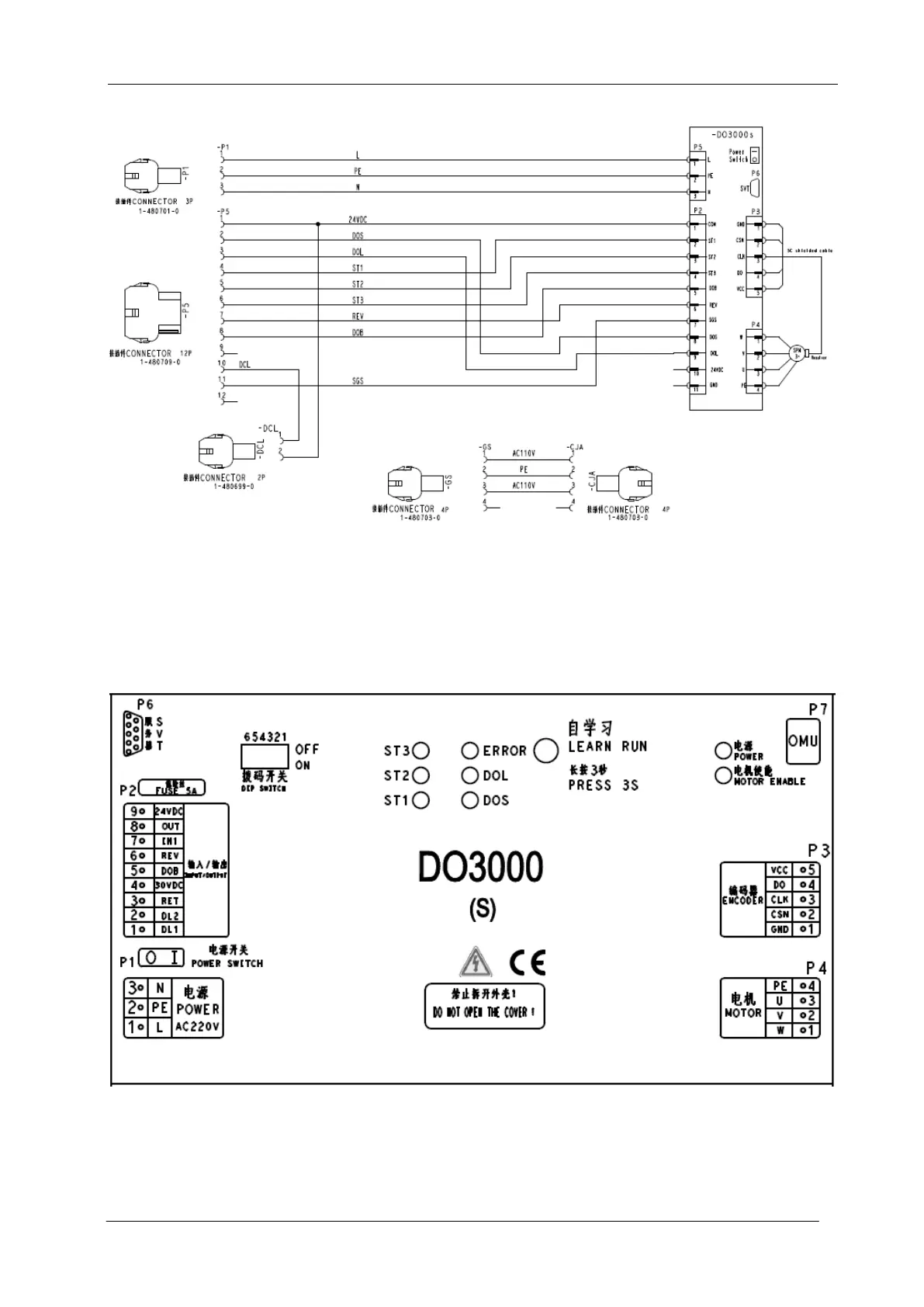

2.1.3 Wiring of HAA24360AE2 controller components (as shown in Fig.2-3)
Fig.2-3 Wiring of HAA24360AE2 controller
2.2 Definitions and Descriptions of Terminals
2.2.1 Controller case
2.2.1.1 HAA24360AK1 ~ HAA24360AK4 controller
Fig.2-4 Controller case
