Page 5
Diagram 8
Item 25 - 5/16 Washer
Item 28 - 1/4 Nylon Hex Lock Nut
10. Bolt frame brackets (Item 3 and Item 4) to sled using holes predrilled in Step 8.
Use appropriate fasteners shown in Diagram 8.
3
25
28
4
7. Position sled (Item 1) as shown in Diagram 7 with curved front to your left.
8. Drill the 4 marked holes using a 5/16” bit.
9. Drill the 7/16” hole in center of lip approximately 16” from bend in sled. The back wind support bar (Item 5 not
shown) is to be propped here. Ref Diagram 7.

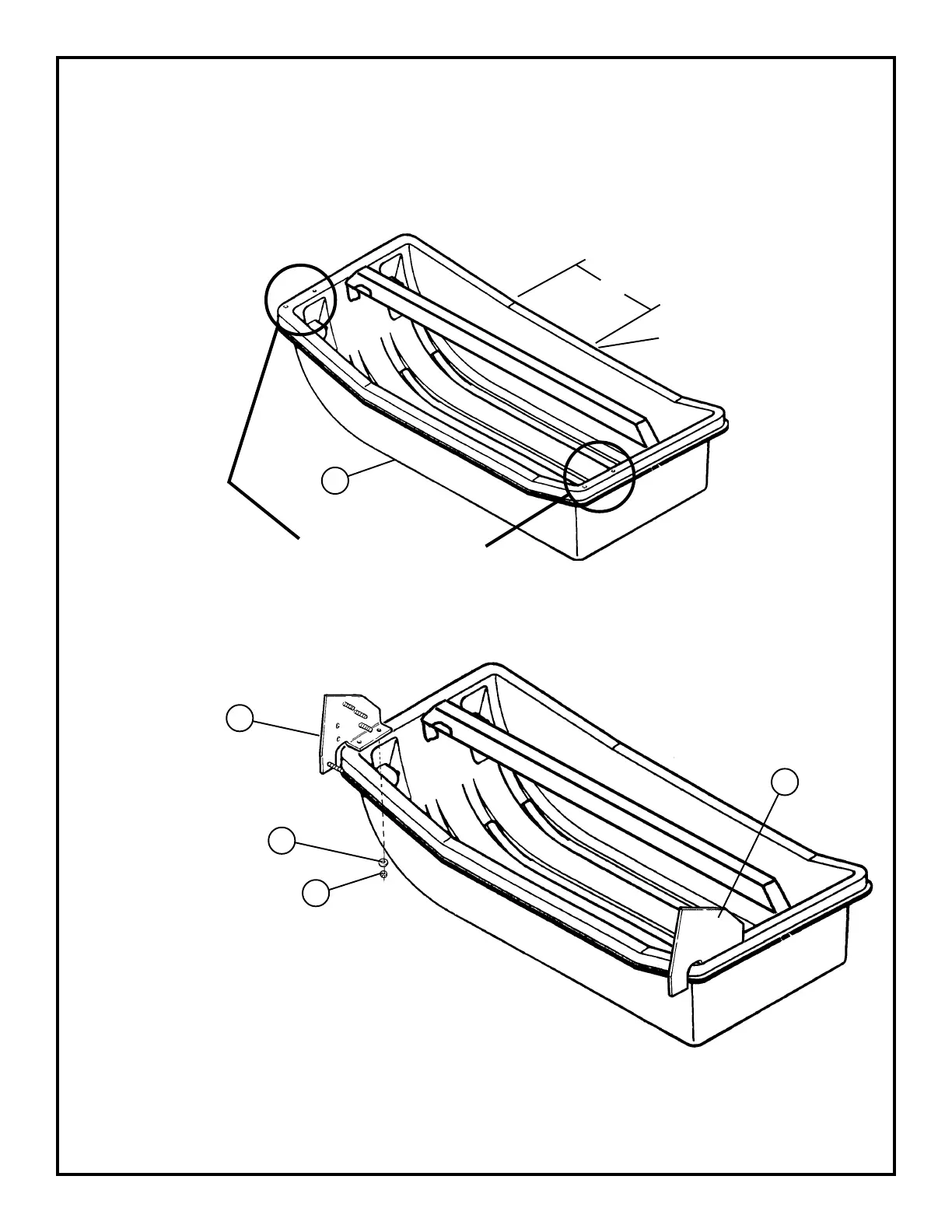

Diagram 7
Drill 4 premarked holes
with 5/16” drill bit.
16”
7/16”
Hole
1
Seat assembly not shown for clarity.
To Next Page
