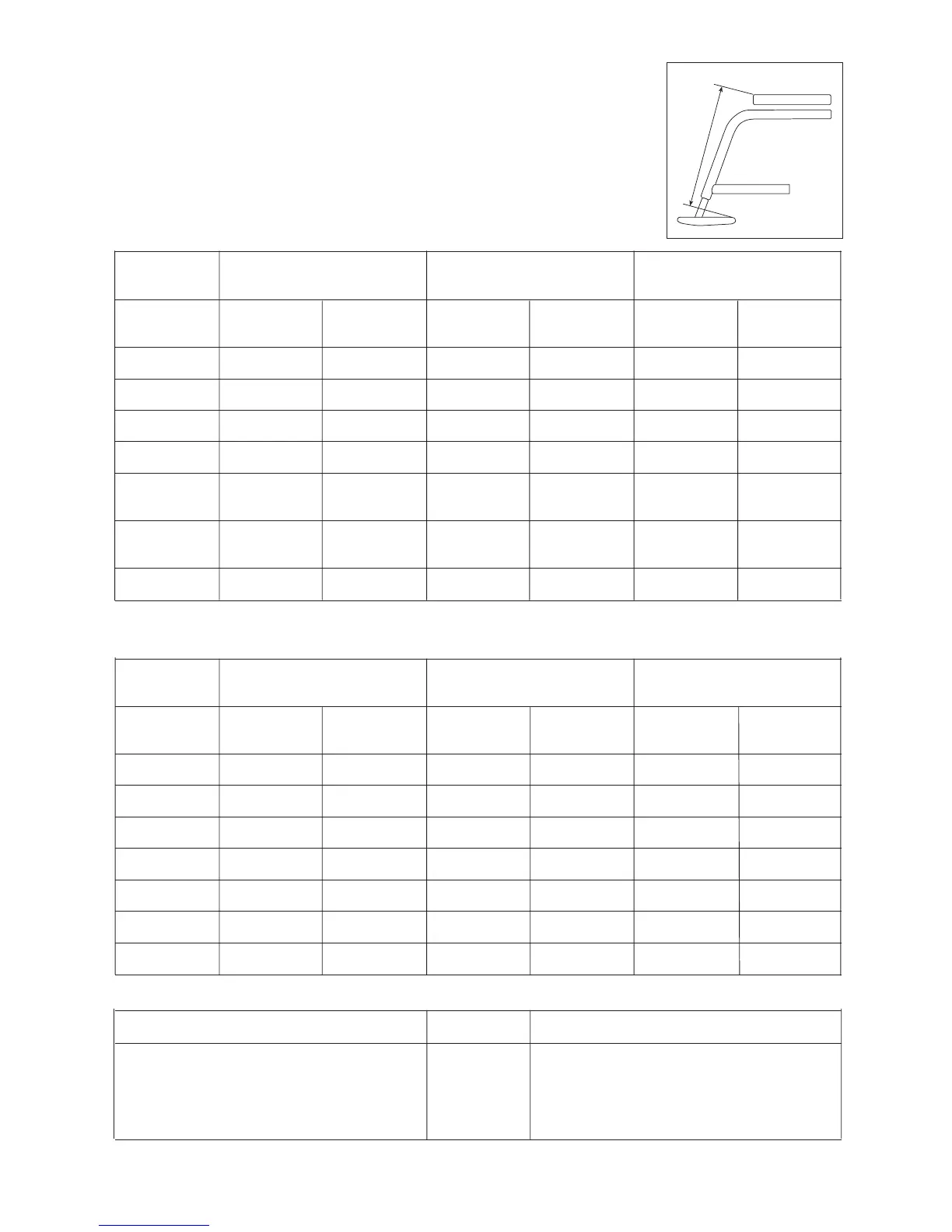

Footrest for Footrest Bar – short Footrest Bar – long
short lower leg lengths (23 cm) (32 cm)
Min. Max. Min. Max. Min. Max.
(with* ST 28) (with ST* 28) (with ST* 38) (with ST* 42) (with ST* 42) (with ST* 42)
SL 70 15.0 cm 30.0 cm 31.0 cm 43.0 cm 37.5 cm 51.0 cm
SL 80 15.0 cm 30.0 cm 30.0 cm 43.5 cm 39.0 cm 49.0 cm
TR – – 32.0 cm 46.0 cm 39.5 cm 52.0 cm
V _ _ 32.0 cm 45.0 cm 39.0 cm 53.0 cm
Teen 15.0 cm 30.0 cm 31.0 cm 42.5 cm 38.5 cm 51.0 cm
(with ST* 28) (with ST* 32) (with ST* 32) (with ST* 32)
XXL 32.0 cm 45.0 cm 39.0 cm 53.0 cm
(with ST* 40)
FL 29.0 cm 44.5 cm 36.5 cm 52.0 cm
Flip-Up Footrest
Footrest Bar – short Footrest Bar – medium Footrest Bar – long
(14 cm) (19 cm) (24 cm)
Min. Max. Min. Max. Min. Max.
(with ST* 40) (with ST* 40) (with ST* 40) (with ST* 40) (with ST* 40) (with ST* 40)
SL 70 – – – – – –
SL 80 – – – – – –
TR – – – – – –
V 34.0 cm 40.0 cm 39.0 cm 45.0 cm 44.0 cm 50.0 cm
Teen – – – – – –
XXL 34.0 cm 40.0 cm 39.0 cm 45.0 cm 44.0 cm 50.0 cm
FL 30.0 cm 50.0 cm – – 35.0 cm 60.0 cm
The adjustment possibilities are the result of the following measures:
Min.
Difference in cm
Max.
Footrest bar – high attachment +10–14 Footrest bar – low attachment
Footrest – attached more backward +1 Footrest – attached more forward
Footrest – mounted horizontally to the frame +1 Footrest – attached more backward by 10°
ST* 42 (short frame) +0.6…+2.4 ST* 34/36/38/40
ST* 46 (long frame) +0.6 ST* 44
ST* = Seat Depth
Measurements from Anterior Edge of the Seat Fabric
to Posterior Footplate Edge
(Lower leg length less thickness of the seat cushion used)
