• Put wiring cover back and then tighten the screw.
• Close the panel.
Notes:
• All wires of indoor and outdoor unit should be connected by a qualified person.
• If the length of power connection wire is insufficient, please contact your dealer for a new one.
Do not extend the wire by yourself.
• A circuit break must be installed in the line. The air switch should be all-pole parting and the contact
parting distance should be more than 3 mm.

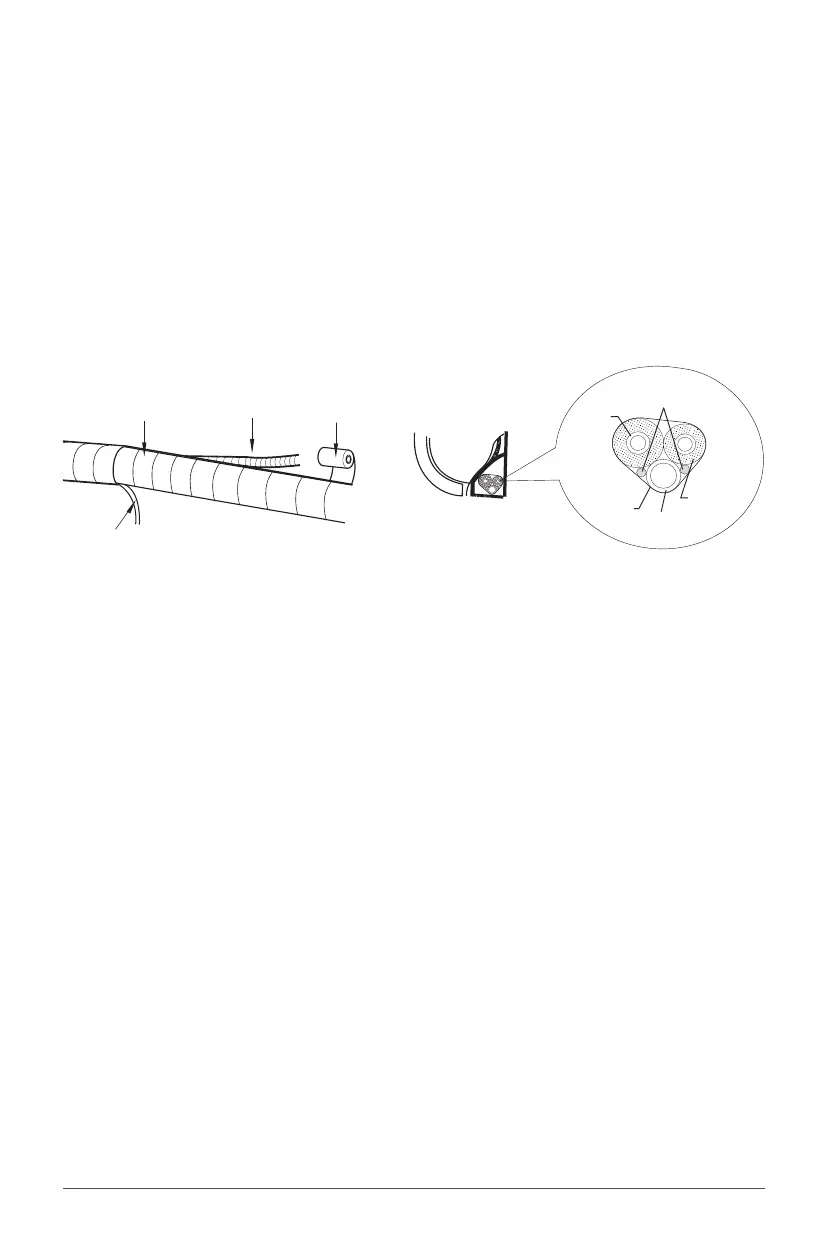

Step 8: Bind up pipes
• Bind up the connection pipe, power cord and drain hose with the band.
• Reserve a certain length of drain hose and power cord for installation when binding them.
When binding to a certain degree, separate the indoor power and then separate the drain hose.
• Bind them evenly.
• The liquid pipe and gas pipe should be bound separately at the end.
Notes:
• The power cord and control wire cannot be crossed or winded.
• The drain hose should be bound at the bottom.
Step 9: Hang the indoor unit
• Put the bound pipes in the wall pipe and then make them pass through the wall hole.
• Hang the indoor unit on the wall-mounting frame.
• Stuff the gap between pipes and wall hole with sealing gum.
• Fix the wall pipe.
• Check if the indoor unit is installed firmly to the wall.
connection
pipe
drain hose
band
indoor power cord
indoor unit
gas
pipe
indoor and outdoor
power cord
band
drain hose
liquid pipe
