Temperature Derating
All FXR inverters can deliver their full rated wattage at temperatures up to 25°C (77°F). The
FXR maximum wattage is rated less in higher temperatures. Above 25°C, each inverter model
is derated by a factor of 1% of that model’s rated wattage for every increase of 1°C. This
derating applies to all power conversion functions (inverting, charging, selling, offsetting, etc.)
Figure 13 is a graph of wattage over temperature, showing the decrease in rated wattage with
increased temperature. The graph ends at 50°C (122°F) because the FXR inverter is not rated
for operation above that temperature.

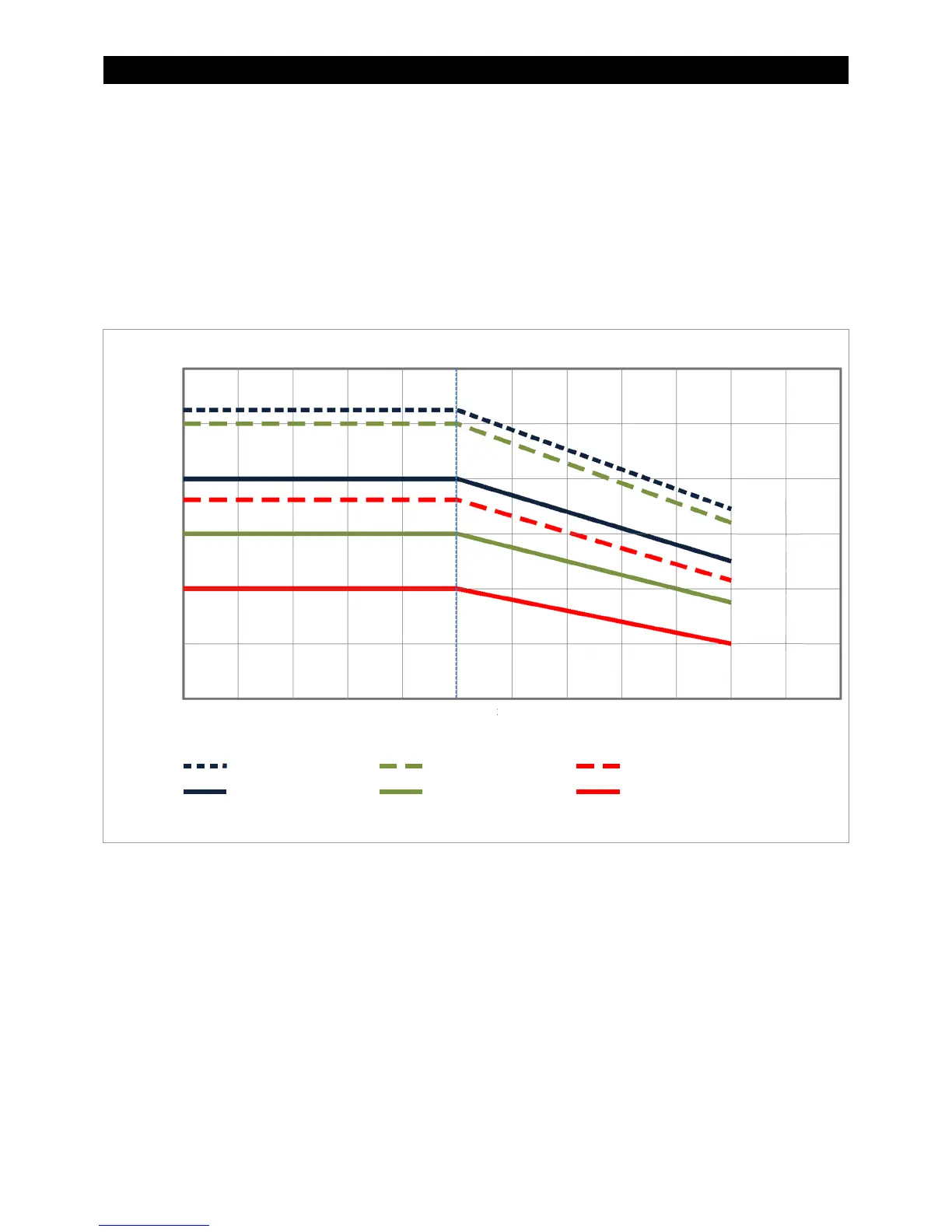

Figure 13 Temperature Derating
Regulatory Specifications
Listings
This product carries a listing report by ETL. It is listed to the following standards:

UL 1741— Inverters, Converters, Controllers and Interconnection System Equipment for Use With
Distri
buted Energy Resources (2nd Edition, 1/28/2010 with supplem
ent SA)

CSA C22.2 — General Use Power Supplies, No. 107.1-01 Issue: 2001/09/01 Ed:3 (R2006)
