Chapter 2: Installation and Setup
To access the Vehicle screen:
•Touch the Vehicle tab.
Table 2-5 describes the buttons and fields on the Vehicle screen.

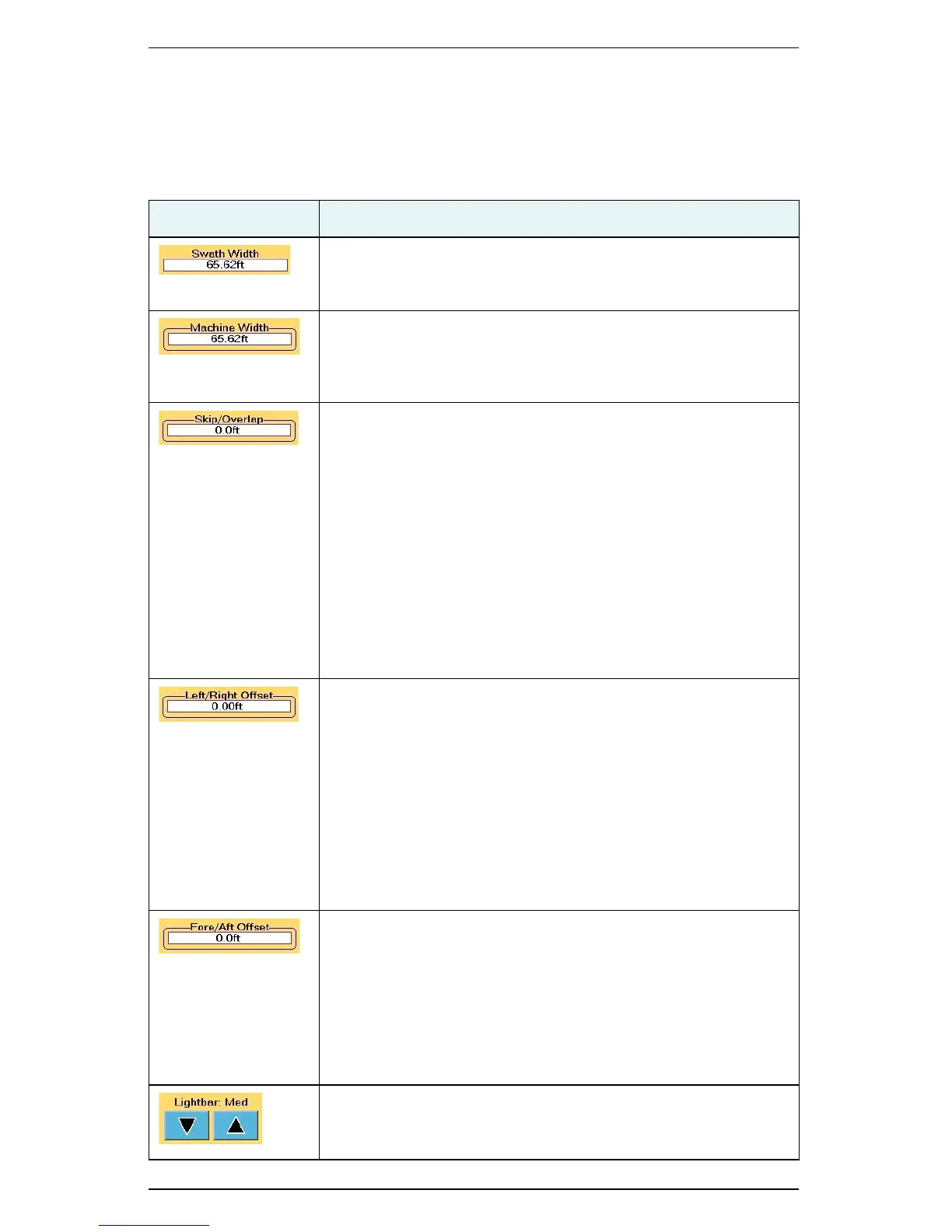

Table 2-5: Vehicle screen button and field descriptions
Button/Field Description
Swath Width
S3-generated value that is the sum of the Machine Width and the
Skip/Overlap values.
Machine Width
Width of the vehicle or implement for the current job. Touch this
field to display the Edit Machine Width window where you enter
the machine width and then touch OK.
Skip/Overlap
Set this value to drive a pattern where rows intentionally skip or
overlap.
Touch this field to display the Edit Skip/Overlap window where
you touch the appropriate button (Skip or Overlap), enter a value,
and then touch OK. When you touch the Skip button or Overlap
button the Edit Skip/Overlap window visually displays a skip or
overlap. For an example of setting field values on the S3 see
“Setting the Fore/Aft Offset” on page 23.
When you enter a skip or overlap the Map screen shows this as an
area between swaths in the green coverage lines, where a skip is
the white area between swaths and an overlap is the dark green
overlap between swaths.
Left/Right Offset
Distance between the GPS antenna centerline and the vehicle or
implement centerline and used to correct for an antenna that is
not installed on the vehicle or implement centerline. Set to the
right or left.
Touch this field to display the Left/Right Offset window where you
touch the appropriate button (Left or Right), enter a value, and
then touch OK. When you touch the Left button or Right button
the Left/Right Offset window visually displays a left offset or right
offset. For an example of setting field values on the S3 see
“Setting the Fore/Aft Offset” on page 23.
Fore/Aft Offset
Fore or aft offset of the antenna from any implement. If the
implement is in front of the vehicle, such as on a harvester, enter
the distance between the implement and the antenna as a fore
offset. If the implement is located behind the vehicle, such as a
drawn planter, enter the distance as an aft offset.
For instructions on setting a fore or aft offset see “Setting the
Fore/Aft Offset” on page 23.
Lightbar
Reaction speed of the virtual lightbar (manual guidance indicator
sensitivity). Set to Low, Med (Medium) or High.
