Snapping the A-B Pivot Line to the Current Location
When traveling on or near a pivot guideline and you use the Snap function, the S3
moves the guideline position by the designated distance and the current pass number.

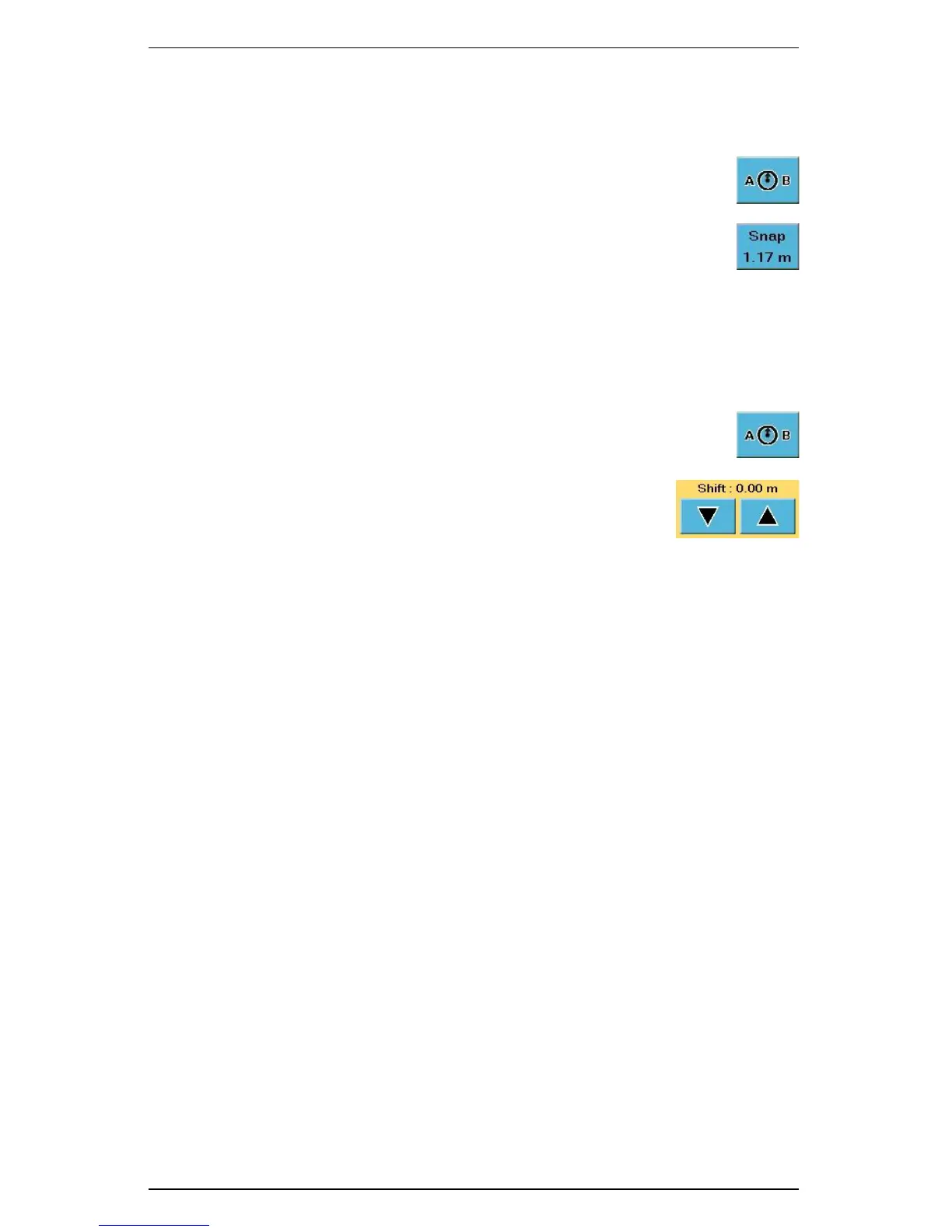

1. While in Pivot Guidance mode touch the Pivot Guidance control
button. The Pivot Guidance window appears.
2. Touch the Snap button. The nearest A-B pivot guide line aligns
with the current vehicle position (snap A-B to here).
3. Touch the Pivot Guidance control button to close the Pivot
Guidance window.
Shifting the A-B Pivot Line
When traveling on or near a pivot guideline and you use the Shift function, the S3
moves the guideline position by the designated distance and the current pass number.
1. While in Pivot Guidance mode touch the Pivot Guidance control
button. The Pivot Guidance window appears.
2. Touch the appropriate Shift button to nudge the A-B line
left (down arrow button) or right (up arrow button)
relative to the direction of travel.
3. Touch the Pivot Guidance control button to close the
Pivot Guidance window.
