Appendix C: S3 Screen Description Reference
L- B a n d S c r e e n

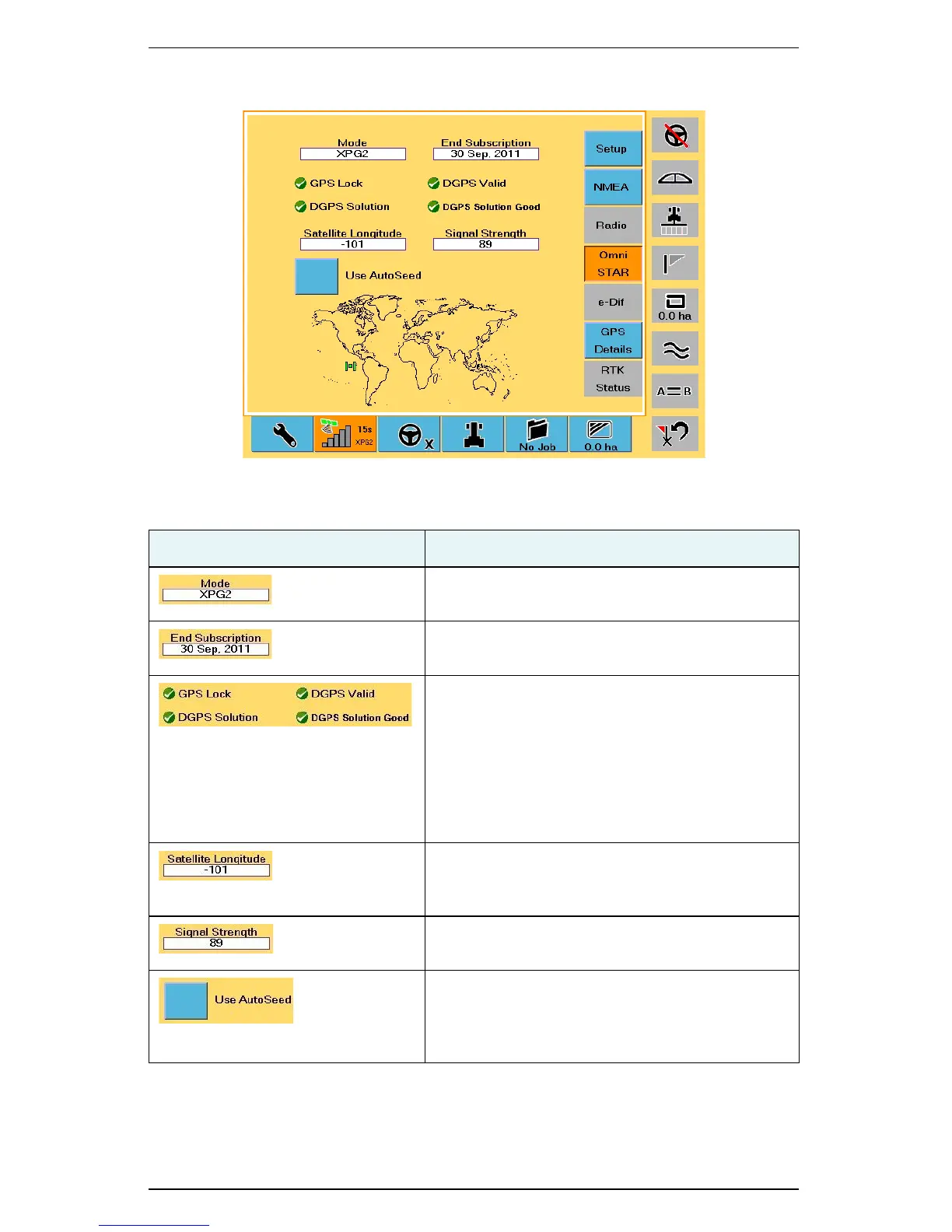

Table C-7: L-Band screen button and field descriptions
Button/Field Description
Mode field
L-Band level of service (purchased from provider).
End Subscription field
Subscription expiration date.
Status indicators (green check mark indicates good
status; red exclamation point indicates poor
status):
• GPS Lock
• DGPS Valid
• DGPS Solution
• DGPS Solution Good
Satellite Longitude field
Satellite location (longitude) that covers the area in
which you will be working.
Signal Strength field
Strength of L-Band signal.
Use Autoseed button
Improves convergence time when on (checks if
receiver has moved when it was last powered
down and uses that location if it has not moved).
To Next Page
