Appendix C: S3 Screen Description Reference
Radio Screen
Table C-6: Radio screen button and field descriptions
Button/Field Description
Radio Mode field
Refer to your antenna user guide for additional details on this
field.
Radio field (read-only)
Radio installed in your antenna.
Signal Strength field (read-only)
Displays the strength of the radio signal.
Frequency field
Set the radio frequency.
Radio ID field
Set the radio receiver channel.
Base Battery field (only appears when using BaseLine)
Radio battery voltage and charge level (5 bars = 100%, 4 bars =
80%, 3 bars = 60%, 2 bars = 40%, 1 bar = 20%, and no bars
indicate that the battery needs to be charged).

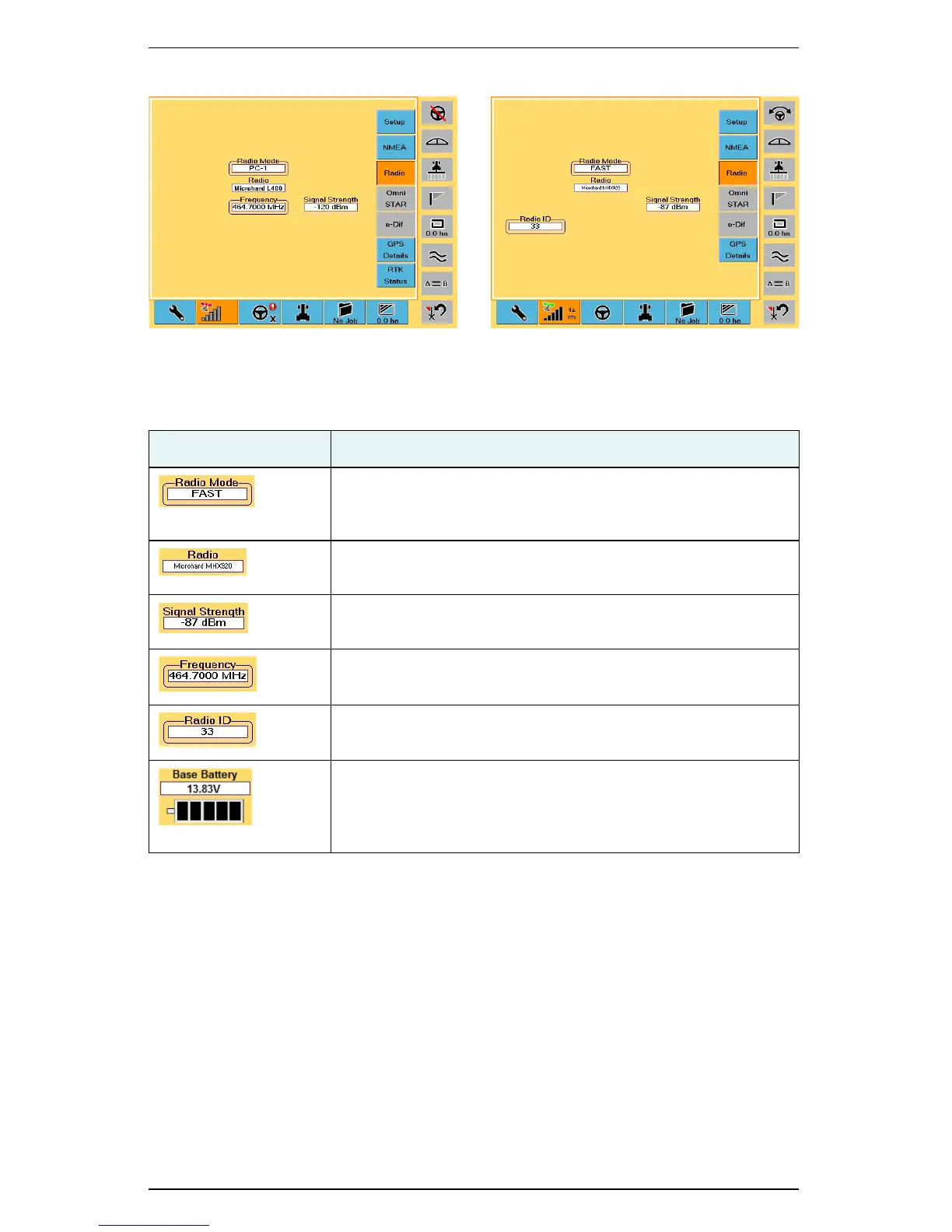

Microhard MHX920 radioMicrohard L400 radio
