Step 12: Fold the steel frame
1) Depress the button on the sliding leg hubs, making sure all sides are unlocked from the legs.
With two persons at diagonal corners slowly slide the gazebo sides downward while one
persons walks inward fully compressing the frame.
Step 13: Store your gazebo
1) To prolong the life of your gazebo make
sure all components are clean and dry
before placing in the carry bag.
2) Place folded frame "feet first" into the
carry bag.
3) Place stakes in the stake bag to prevent
damage to the canopy.
4) Place folded canopy along the side of the
frame and carefully zip the bag closed.
5) Store in a clean, dry area.
Step 11: Remove canopy
1) Detach all Velcro® fasteners and remove
canopy. Fold for storage.

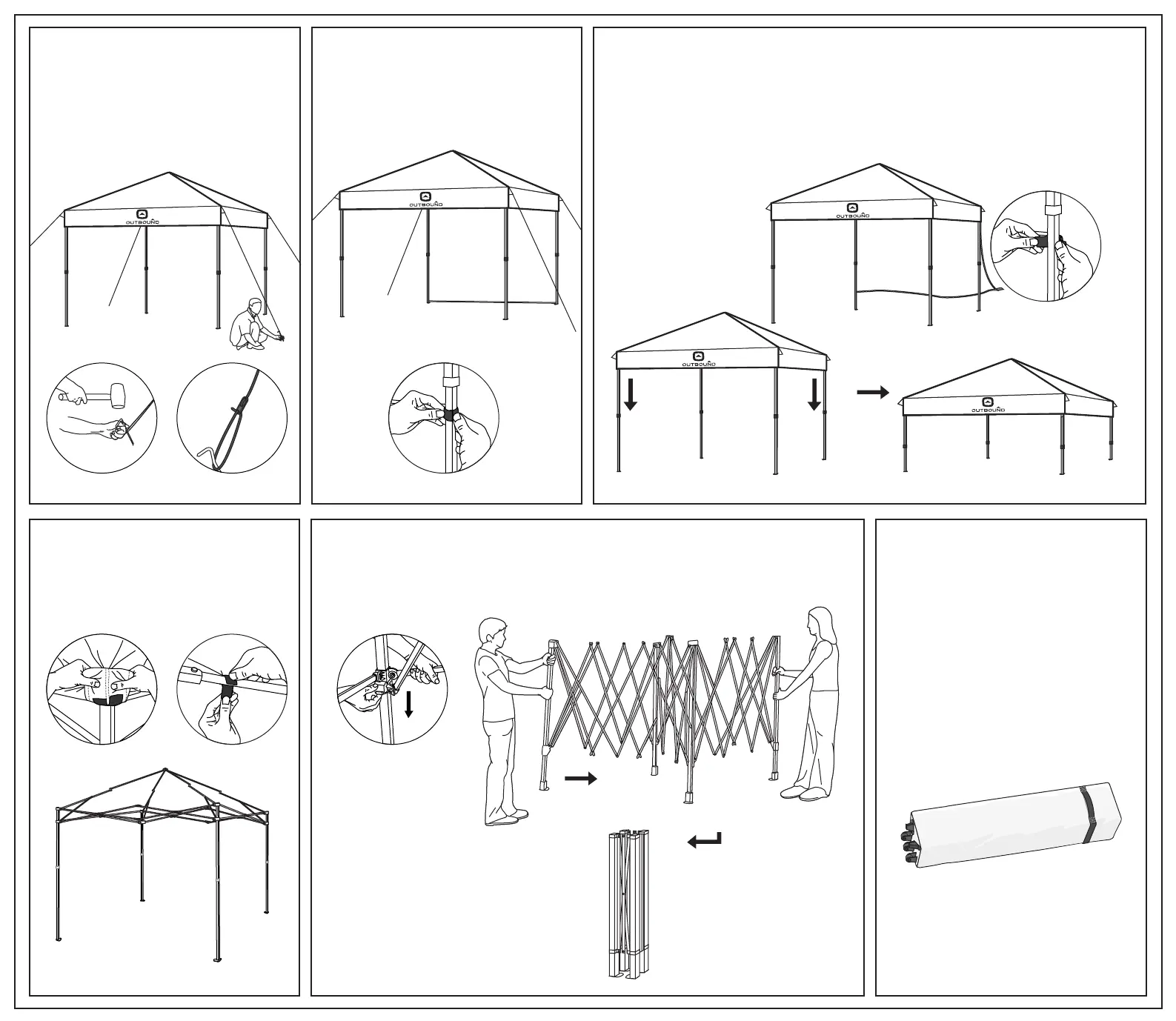

Step 8: Secure guy line
1) Secure gazebo using all guy lines and
stakes.
Gazebo must be secured for proper
function.
2) Hammer stakes into ground at a 45
0
angle
using a hammer or mallett.
Step 9: Attach wind wall
1) Attach the wall on the back side of the
tent by wrapping Velcro® tabs around the
steel frame.
Step 10: Disassembly
1) To disassemble work in reverse order. Be cautious of pinch points.
2) Detach Velcro® and remove wind wall.
3) Remove stakes with hammer or stake puller. DO NOT pull on tent.
4) To lower the gazebo, carefully lower two legs at the same time. Press the push buttons located
at the middle of each leg and slide the legs downward. Lower the opposite legs in the same
manner.
STORE GAZEBO UP RIGHT TO AVOID
DAMAGE TO FABRIC, FRAME, OR BOTH.
TM
MC
XP1010ST-1 05/15
