XP1010ST-1(076-5464-6)

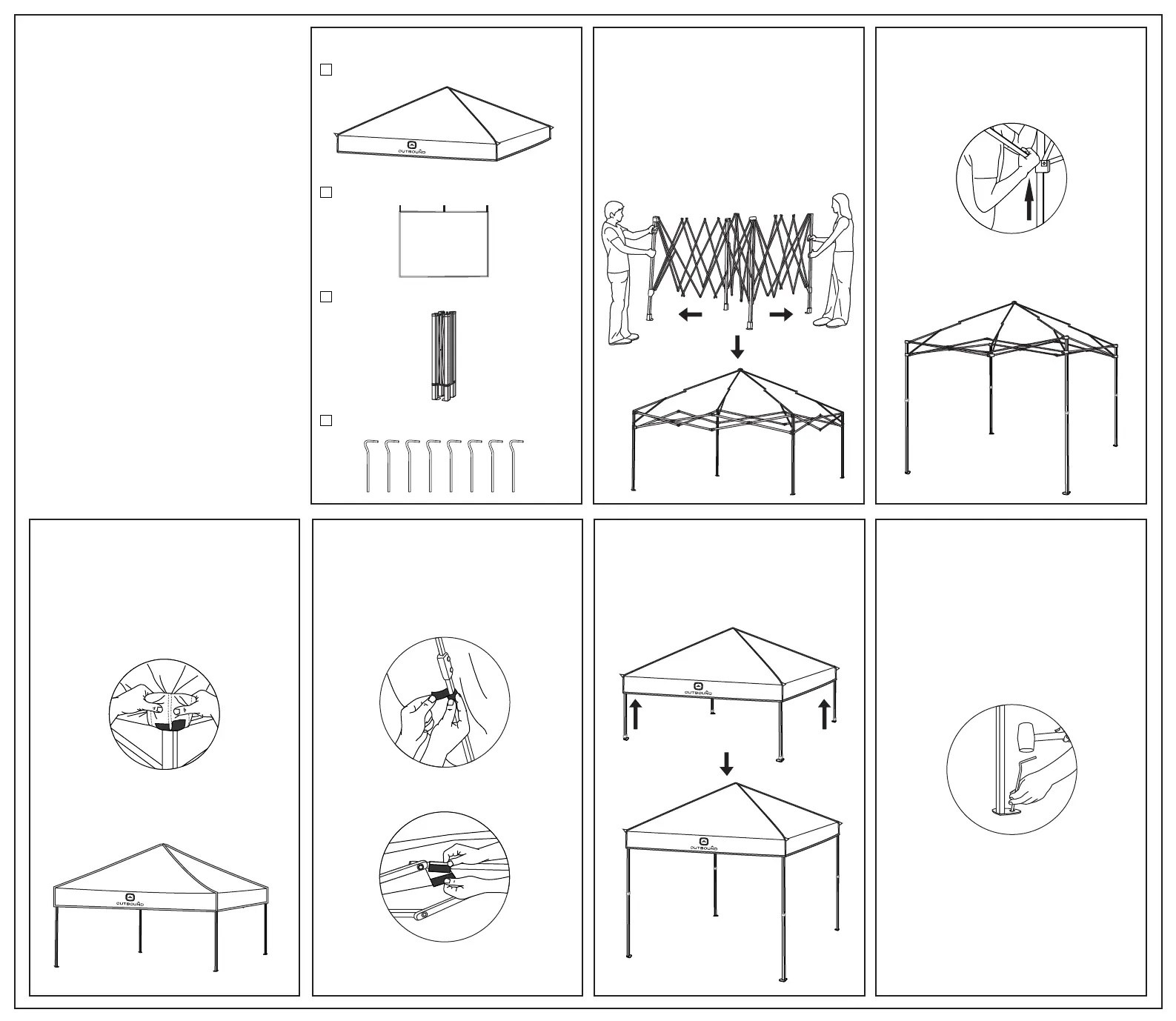

ASSEMBLY INSTRUCTIONS
Step 1: Verify package contents
Canopy : 1 each
Step 2: Pull and extend the gazebo frame
1) With two persons standing at diagonal
corners of the structure, grab a leg and
have one person stand in place while
the other walks the frame out.
2) Do not extend the legs at this time to allow
for ease of roof assembly.
Tent Stakes : 8 each
Wind Wall : 1 each
Frame : 1 each
Step 5: Fasten Velcro® tabs
1) Locate the Velcro® fasteners on the
underside of fabric body. Attach to
roof frame.
IMPORTANT NOTES:
* THIS RECREATIONAL PRODUCT REQUIRES A
MINIMUM OF TWO PEOPLE TO ASSEMBLE.
* Avoid pinch points when opening and closing
the gazebo frame.
* Do not drop carry bag.
* Do not bounce bag on its end to remove
product, as these actions may damage the
frame.
* Select a level site clear of rocks, branches,
and other hard or sharp objects.
* Secure with all stakes and guylines provided
to prevent property damage or personal
injury.
* For best results in windy conditions, position
corner of gazebo into the wind.
Step 6: Adjust the height
1) Extend legs two at a time to adjust height.
Step on foot of frame leg and pull up until
push button pops out. Circle around and
repeat process with remaining legs.
Step 7: Stake gazebo
1) Secure gazebo by driving stakes through
the holes in the base of each frame post.
Step 4: Attach the canopy
1) Unfold the canopy and place over the
frame.
2) Attach the Velcro® fasteners on the canopy
to the Velcro® at the top of the legs.
3) Gazebo will appear as shown.
Step 3: Lock sliding hubs
1) Lift the sliding hub upward locking the hub
into place. Listen for the “click”.
2) Frame only will appear as shown.
XP1010ST-1 05/15
