Outline M5000-4 - 4 Interfaces

1. Channel 1 input attenuator
2. Channel 1 meter LEDs 3. Channel 2 meter LEDs 4. Channel 2 input attenuator 5. On/off power switch 6. Channels 1&2 ready LED 7. Channels 1&2 temperature warning LED 8. AC mains power plug 9. Air vents
10. Channels 3&4 line input XLR connector 11. Channels 1&2 line input XLR connector 12. Channel 4 output Speakon connector 13. Link switch channels 3-4 14. Channel 3 output Speakon connector
15. Channel 2 output Speakon connector 16. Link switch channels 1-2 17. Channel 1 output Speakon connector

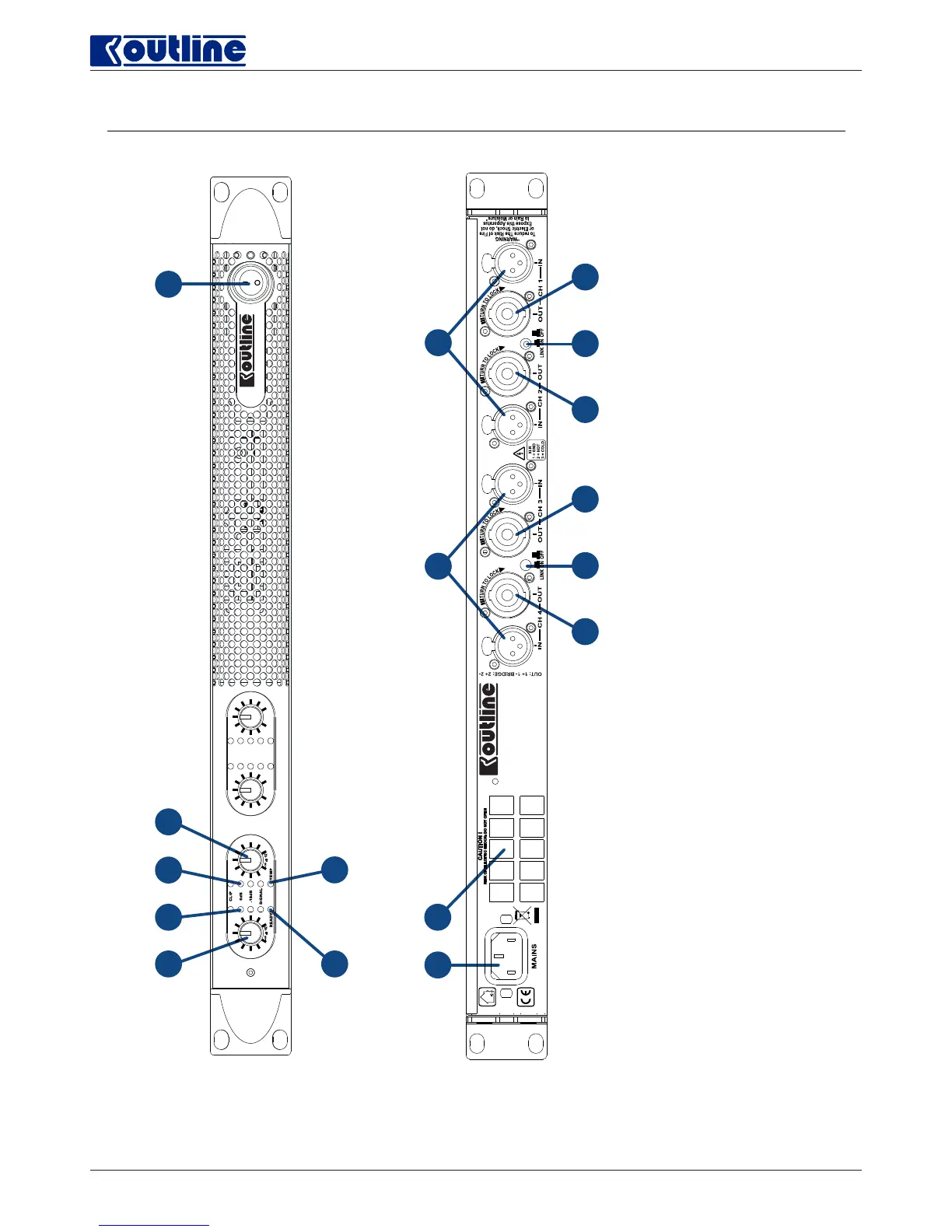

FIGURE 2: M5000-4 front panel view.
FIGURE 3: M5000-4 rear panel view.
1 2 3 4 6 7
5
8
1613 1714
9
10 11
1512
TEMP
READY
SIGNAL
-18dB
6dB
CLIP
dB
+32
8
-
dB
+32
8
-
M5000-4
PAT. PEND.
Made in Italy
4 Interfaces
The Sound of Big Ideas
