UK: INSTRUCTION MANUAL
6. Storage
If the light units are not used for a long time, they should be recharged every 12 months.
Store the Light Unit Set in a cool and dry place.
7. Light Source: LED
The light source and control gear is not replaceable. Making the light source and control gear replaceable would
also introduce weak points in the construction, that could reduce the lifetime of the product.

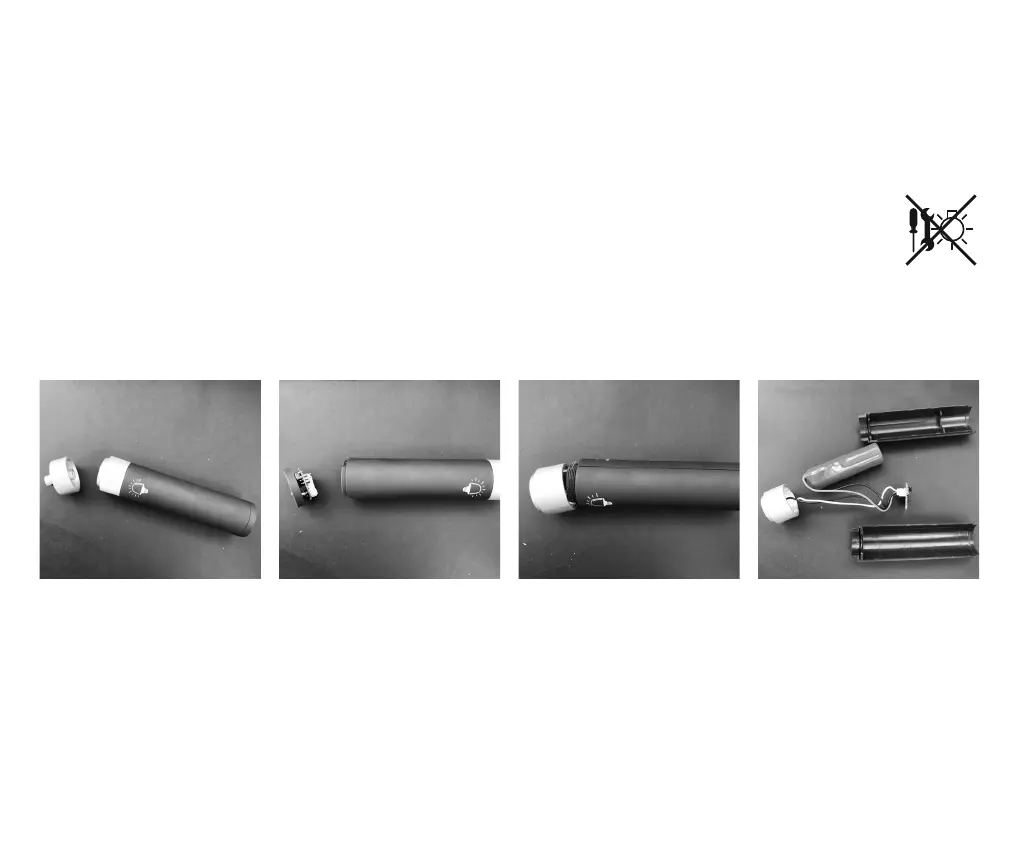

8. Instruction for disassembling when the product has reached the end of its usable life
All disassembly can be done with hand, no tools required. Unless otherwise noted.
Unscrew top part of aluminium
head, counterclockwise.
Remove bottom cap, twisting it
gently clockwise until it comes
loose with an audible click.
Gently remove it, observing not
to damage the three-pin
connector attaching it the to the
upper inner circuit board.
Unscrew the lower part of the
aluminium head containing the
LED module, counterclockwise.
Take care not to damage the
wires.
Remove the two shell parts from
each other, by gently pressing
along the seams to release the
tabs holding them together.
Do not use excessive force.
Do this on both seams.
1. 2. 3. 4.
