Page #5 background imageLoading...
Page #5 background image
Operator
Terminals
Push Button
CNO
DOOR 1
6.35mm1/4”
split & strip wire
POWER
9-42VDC
9-30VAC
Power Common
9-42VDC or 9-30VAC
WIRING
6.35mm1/4”
split & strip wire
Operator
Terminals
Power Common
OPEN
CLOSE
STOP
OPERATOR PUSH BUTTON
CONTROL SIGNAL
TERMINAL STRIP
OPEN CLOSE STOP GND
OPEN/CLOSE/STOP
PUSH BUTTON CONTROL
9-42VDC or 9-30VAC
* NOTE: If operator has a jumper
between the stop and ground terminal
it must be removed.
*

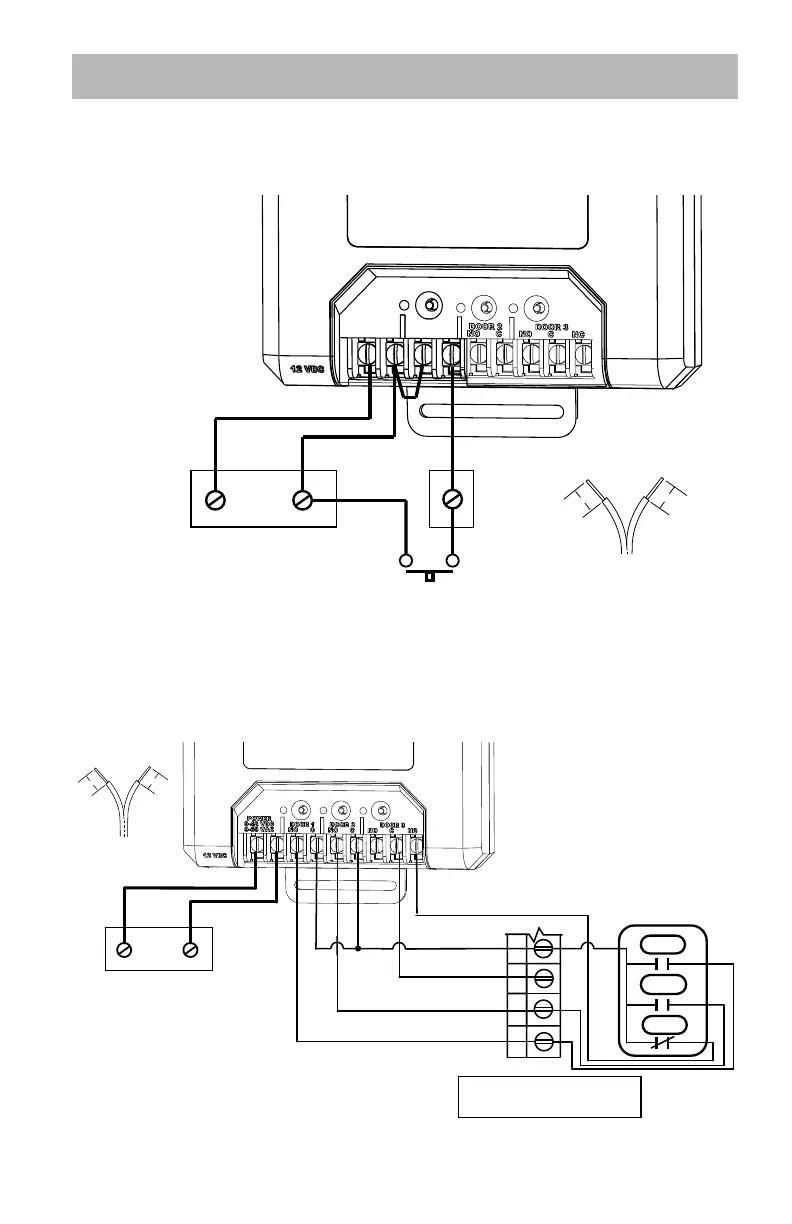

FIG. 4. Garage door operator powered from operator for
Open/Close/Stop operation.
FIG. 3. - Three-Wire commercial door or gate operator powered
from operator.
