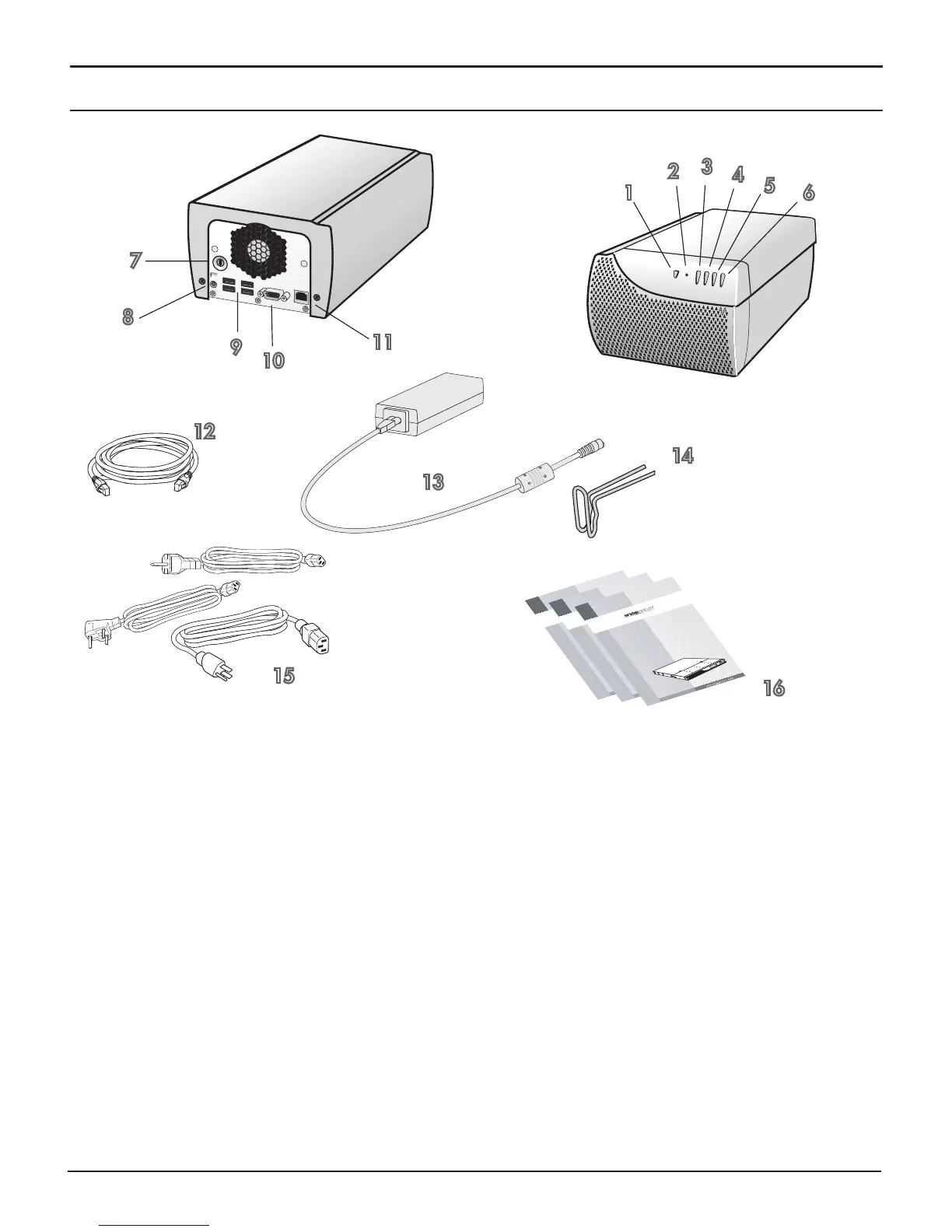

Hardware Features
1 Power button 9 USB ports (4)
2 Reset button 10 Service connector
3 Power LED 11 Ethernet port
4 Status LED 12 Ethernet cable
5 Network LED 13 Power supply
6 Disk LED 14 Power connector retention clip
7 Kensington Lock connector 15 Power cables (1 US, 1 UK, 1 EU))
8 Power connector 16 Quick Start Guides and User CDs (3)
Note The USB connectors on the back of the Snap Server cannot be used for administrative purposes. Snap Servers
are managed via the browser-based Administration tool.
