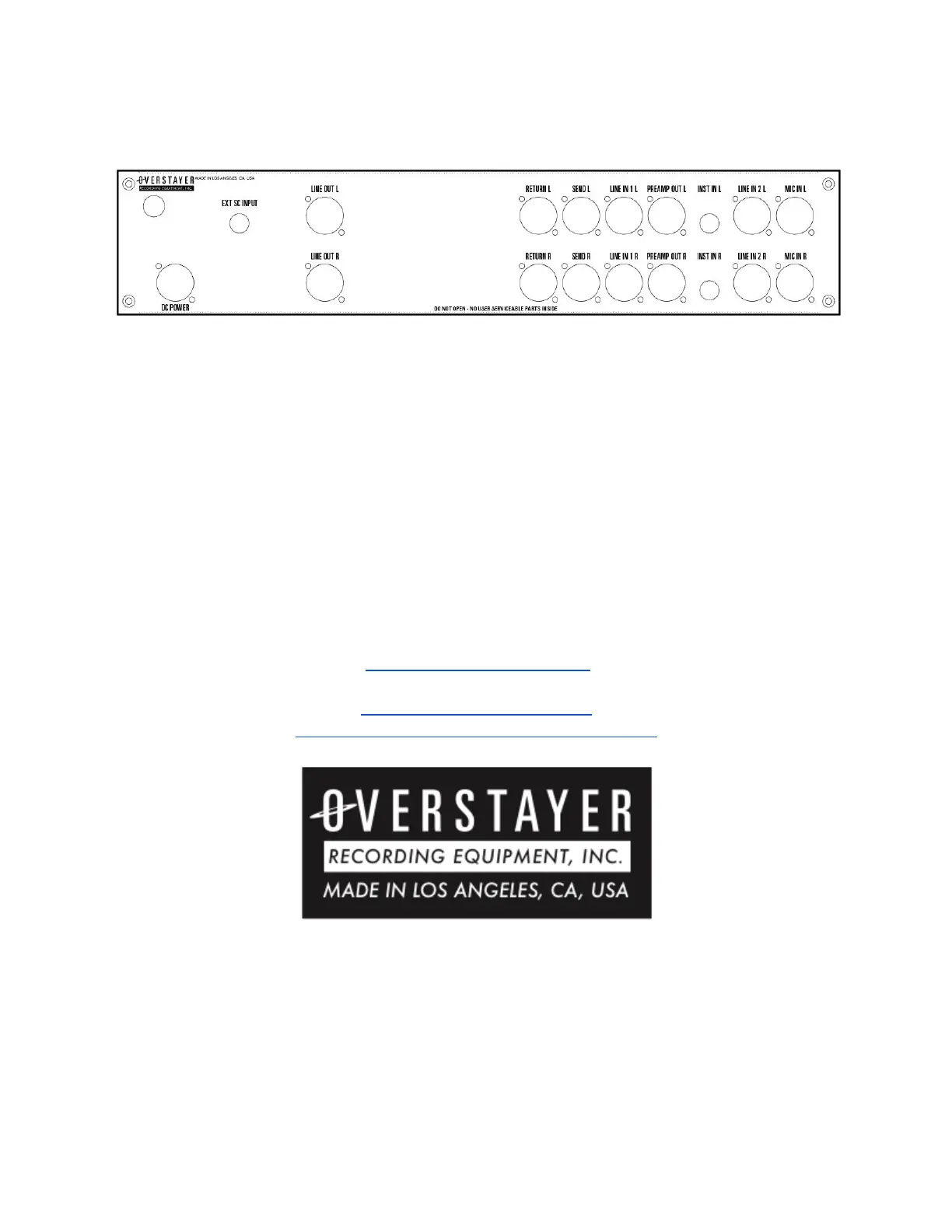

REAR PANEL
MIC IN L/R (8755DM only) - Transformer coupled microphone input
LINE IN 2 L/R (8755DM only) - Balanced line input that feeds the input transformers
INST IN L/R - High impedance unbalanced TS inputs that feed directly into the preamps
PREAMP OUT L/R - Direct output of the preamps
LINE IN 1 L/R - Balanced line input
SEND L/R - Insert send, post COMPRESSOR
RETURN L/R - Insert return, pre DRIVE
OUT L/R - Balanced line output, leave pin 3 floating when driving unbalanced loads
EXT SC IN - External sidechain feed for the compressor
DC POWER
Please contact us at info@overstayeraudio.com with any questions.
http://overstayeraudio.com
http://www.facebook.com/overstayeraudio
Copyright © 2018, OVERSTAYER RECORDING EQUIPMENT, INC.
Overstayer Recording Equipment, Inc. reserves the right to modify or change any of the features
or specifications of its products without notice or obligation.
Copyright © 2018, Overstayer Recording Equipment, Inc..
All rights reserved. All features and specifications are subject to change without notice.
