MERCURY ELITE PRO DUAL
DEVICE SETUP
5

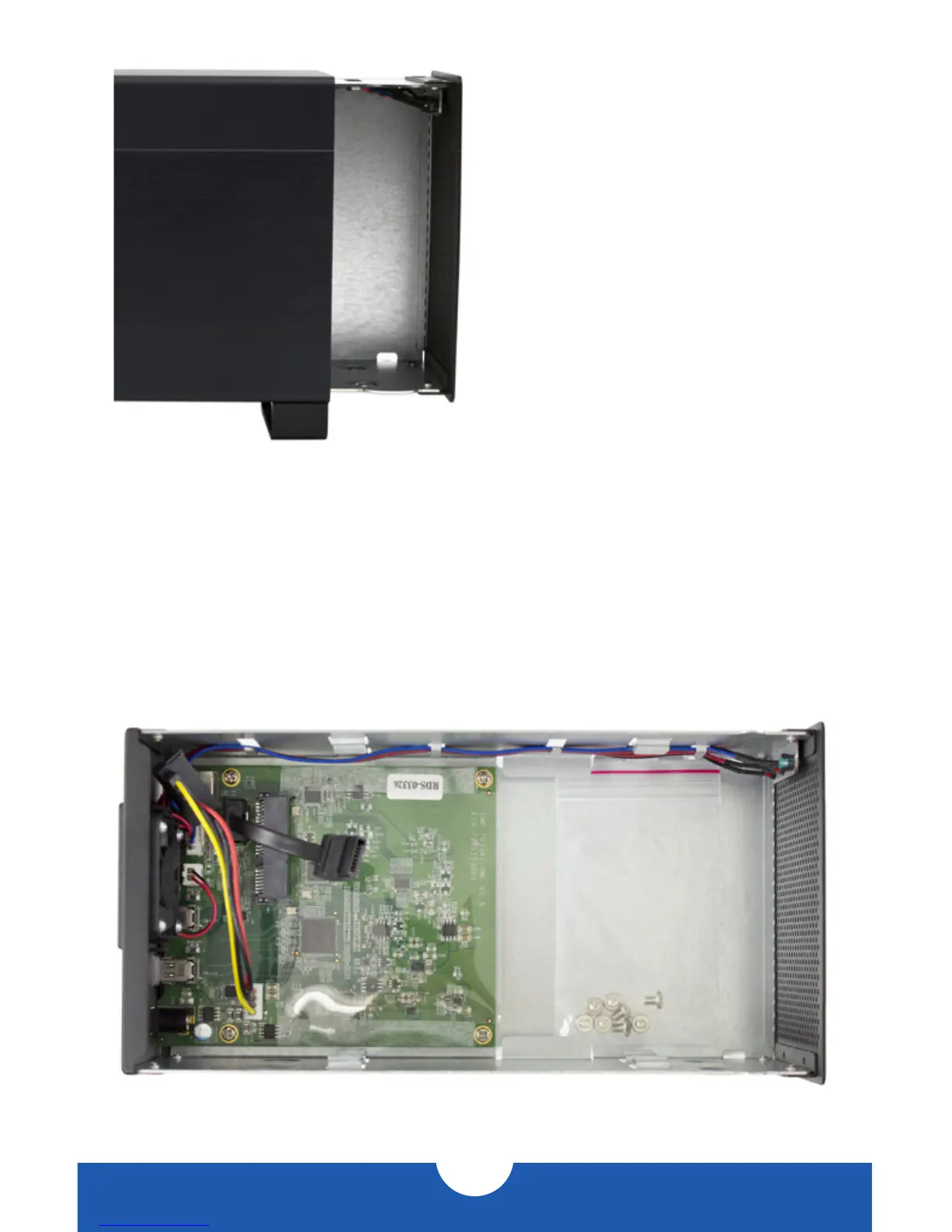

2. Once the two screws have been removed,
slide the inner chassis out of the front of the
outer enclosure, as shown to the right. Start
by pushing on the rear of the inner chassis,
then when you are able to get a grip on the
front grill of the inner chassis, pull it the rest
of the way.
3. When removed from the outer enclosure, the inner chassis will appear as shown below.
Remove the packet of screws and use the screws as directed later in the assembly
instructions. Note that the plastic shield over the circuit board is there by design and
should not be removed.
