Oxygen 8 TERRA - Dimensions and Clearance

Terra Installation Manual
7
DX Coil with HGRH

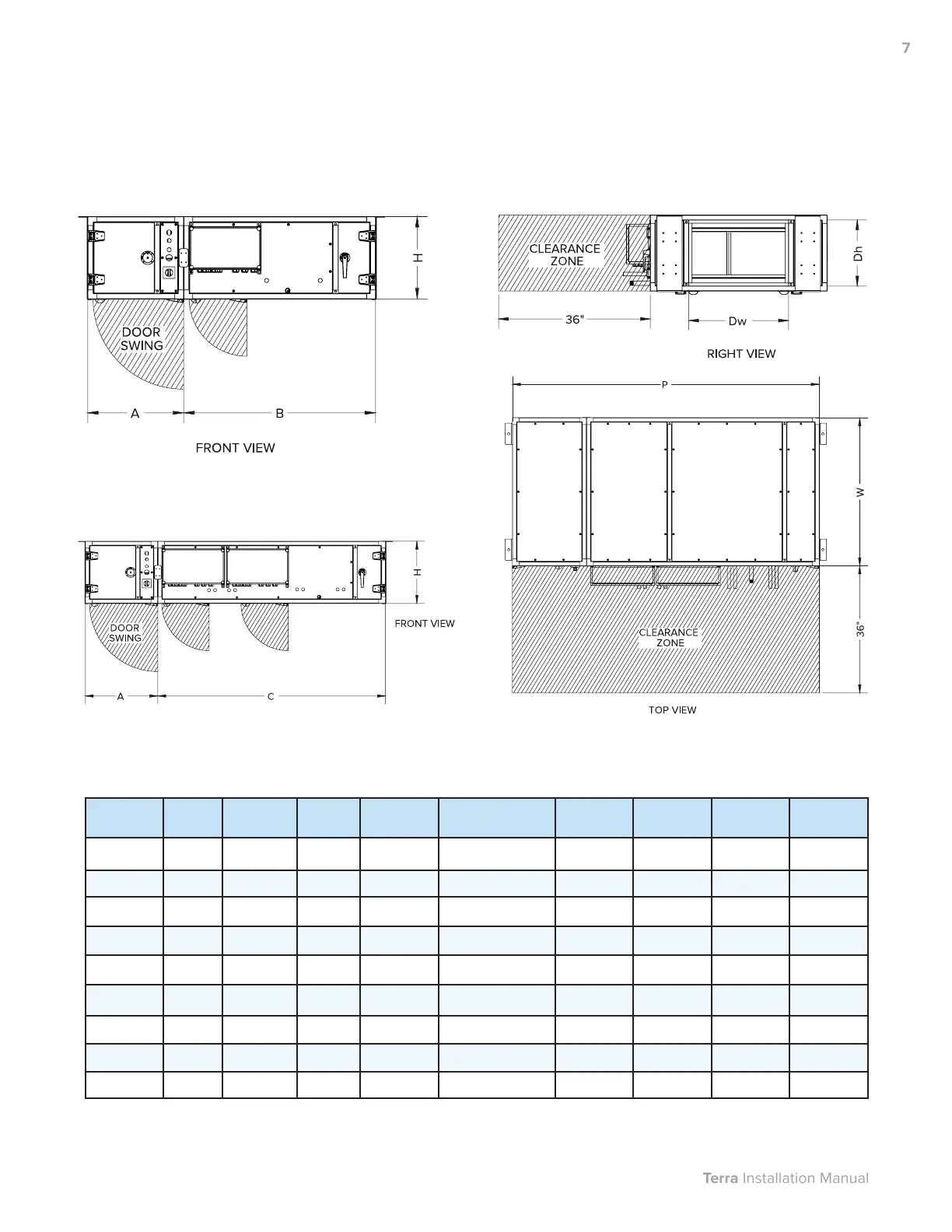

2.4 Dimensions and Clearance
DX Coil General Clearances
A B C L (DX) L(DX+HGRH) H W Dh Dw
T06 21 42 66 63 87 18 30 15 ⅝ 11 ⅜
T09 21 42 66 63 87 18 36 15 ⅝ 17 ⅜
T12 21 42/48 66 63/69 87 18 42 15 ⅝ 23 ⅜
T15 21 42/28 66 63/69 87 18 48 15 ⅝ 29 ⅜
T18 24 42/48 66 66/72 90 21 48 18 ⅝ 29 ⅜
T24 24 42/48/66 66 66/72/90 90 21 60 18 ⅝ 41 ⅜
T32 30 48 66/84 30 96/114 30 48 27 ⅝ 29 ⅜
T40 30 48 66/84 30 96/114 30 60 27 ⅝ 41 ⅜
T48 24 48 66/84 24 90/108 30 72 27 ⅝ 53 ⅜
Dimensions are in inches. DX and HGRH section lengths depend on number of circuits, driven by coil capacity.
Electric heater accessory lengths vary and are not included above.
