GLASS LINE A1
TECHNICAL SPECIFICATIONS
DD-72-147 R(16) 2 / 2 Y.T.04.04.2017
System Features & Operation
: Microprocessor controlled, bi-directional DC motor driven mechanism with torque and
speed adjustments. The system opens the wing in either direction upon receiving
contact to allow passage. Glass wing automatically retreats when it pushes against an
obstacle and goes into alarm after a second attempt.
Emergency Mode : In case of emergency input, the wing opens in either direction (pre-set direction by
internal dip-switch) and the system stays in open position until the emergency input is
removed.
Wing can be pushed open manually in either direction in case of a power failure.
Wing Speed : Wing speed is controlled by adjustable PWM controlled motor driver system.
For 900mm Passage Width Tempered Glass Wing:
-Wing Opening Speed: ~3,0 seconds by default, ~2,5 – 3,5 sec. adjustable.
-Wing Closing Speed: ~3,0 seconds by default, ~2,5 – 3,5 sec. adjustable.
For 550mm Passage Width Tempered Glass Wing:
-Wing Opening Speed: ~2,7 seconds by default, ~2,5 – 3,5 sec. adjustable.
-Wing Closing Speed: ~2,7 seconds by default, ~2,5 – 3,5 sec. adjustable.

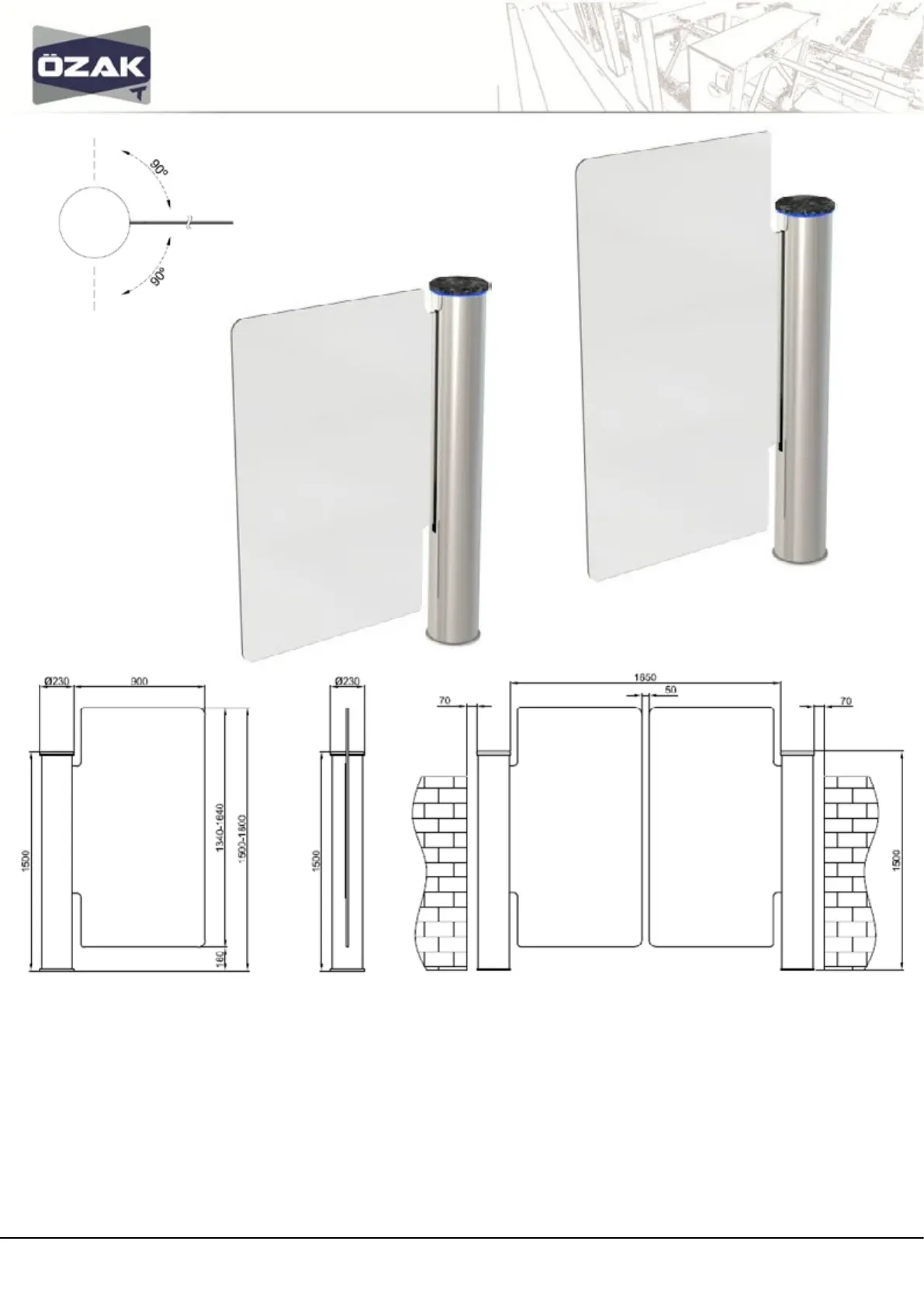

90° movement from original position,
Standard Features : Natural granite top lid (Star Galaxy Black), RGB LED indicator.
Optional Accessory and Applications
: Remote control unit, interface unit for PC, RS485, RS232 and LAN, counter, audio-
messaging system, base plate, different top lids, separator, card reader pole.
*Design and specifications are subject to change without notice.
