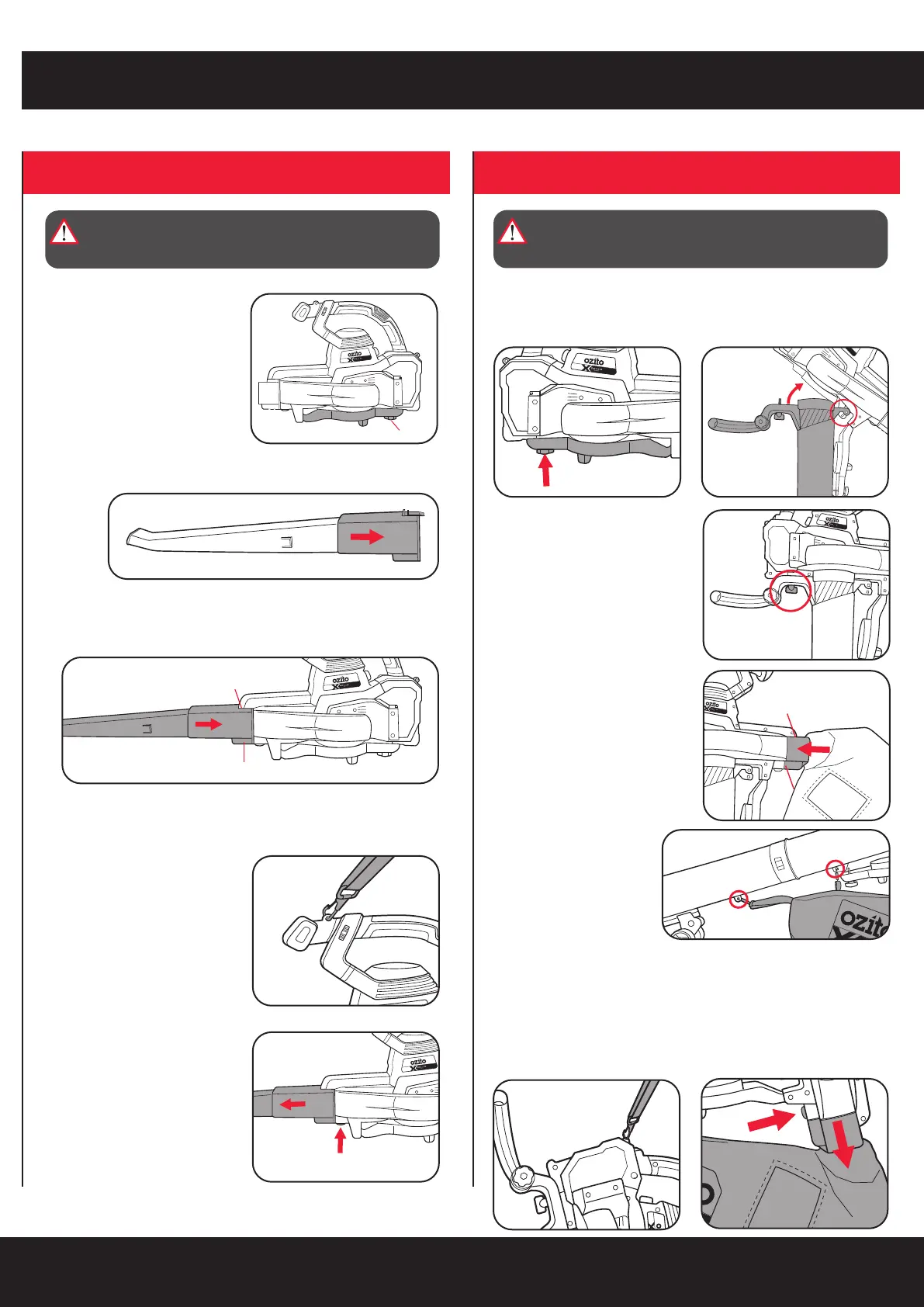

SETUP & PREPARATION
2. BLOWER MODE SETUP
3. VACUUM-MULCHER MODE SETUP
2. Pull the sleeve to the top end of the blower tube.
Knob
“CLICK”
“CLICK”
PUSH
3. Push the blower tube onto the motor housing, it will click in place when
fully inserted.
Knob
“CLICK”
“CLICK”
PUSH
Note: Ensure the blower tube is pushed fully onto the motor housing
otherwise the motor will not start.
4. Attach the shoulder strap to the top
of the motor housing.
To use the shoulder strap simply slide
the strap over your shoulder so that
some of the weight of the blower can
be taken by your shoulder.
Knob
“CLICK”
“CLICK”
PUSH
5. To remove blower tube, press the
release button and pull the blower
tube away from the motor housing.
Knob
“CLICK”
“CLICK”
PUSH
Knob
“CLICK”
“CLICK”
PUSH
1. The air intake cover must be in
position on the suction opening
when using as a blower.
Note: Ensure the locking knob is
fully tightened otherwise the motor
will not start.
1. To install the vacuum tube
assembly, undo the air intake cover
knob and open the intake cover.
PUSH
UNDO
“CLICK”
“CLICK”
PULL
PUSH
UNDO
“CLICK”
“CLICK”
PULL
2. Attach the vacuum tube
assembly and hinge it onto the
motor housing as shown.
3. Secure the vacuum tube assembly
in place by tightening the thumb
screw into the body of the motor
housing.
Note: Ensure the thumb screw is
fully tightened otherwise the motor will
not start.
Note: The intake cover is spring
loaded and simply rest under tension
against the vacuum tube.
4. Attach the collection bag onto the
motor housing, it will click in place
when fully inserted.
Note: Ensure the collection bag is
pushed fully onto the motor housing
otherwise the motor will not start.
PUSH
UNDO
“CLICK”
“CLICK”
PULL
5. Hang the two bag fastening
hooks onto the vacuum tube
bag holding points.
PUSH
UNDO
“CLICK”
“CLICK”
PULL
6. Attach the shoulder strap to the
top of the motor housing.
To use the shoulder strap simply
slide the strap over your shoulder
so that some of the weight of the
blower vac can be taken by your
shoulder.
PUSH
UNDO
“CLICK”
“CLICK”
PULL
PUSH
UNDO
“CLICK”
“CLICK”
PULL
7. To remove the collection bag, rst
unfasten hooks from the vacuum
tube holding points, then press
the release button and pull the
collection bag away from the
motor housing.
PUSH
UNDO
“CLICK”
“CLICK”
PULL
WARNING!: ENSURE THE TOOL IS OFF AND THE
BATTERIES REMOVED BEFORE PERFORMING ANY OF
THE FOLLOWING OPERATIONS.
WARNING!: ENSURE THE TOOL IS OFF AND THE
BATTERIES REMOVED BEFORE PERFORMING ANY OF
THE FOLLOWING OPERATIONS.
