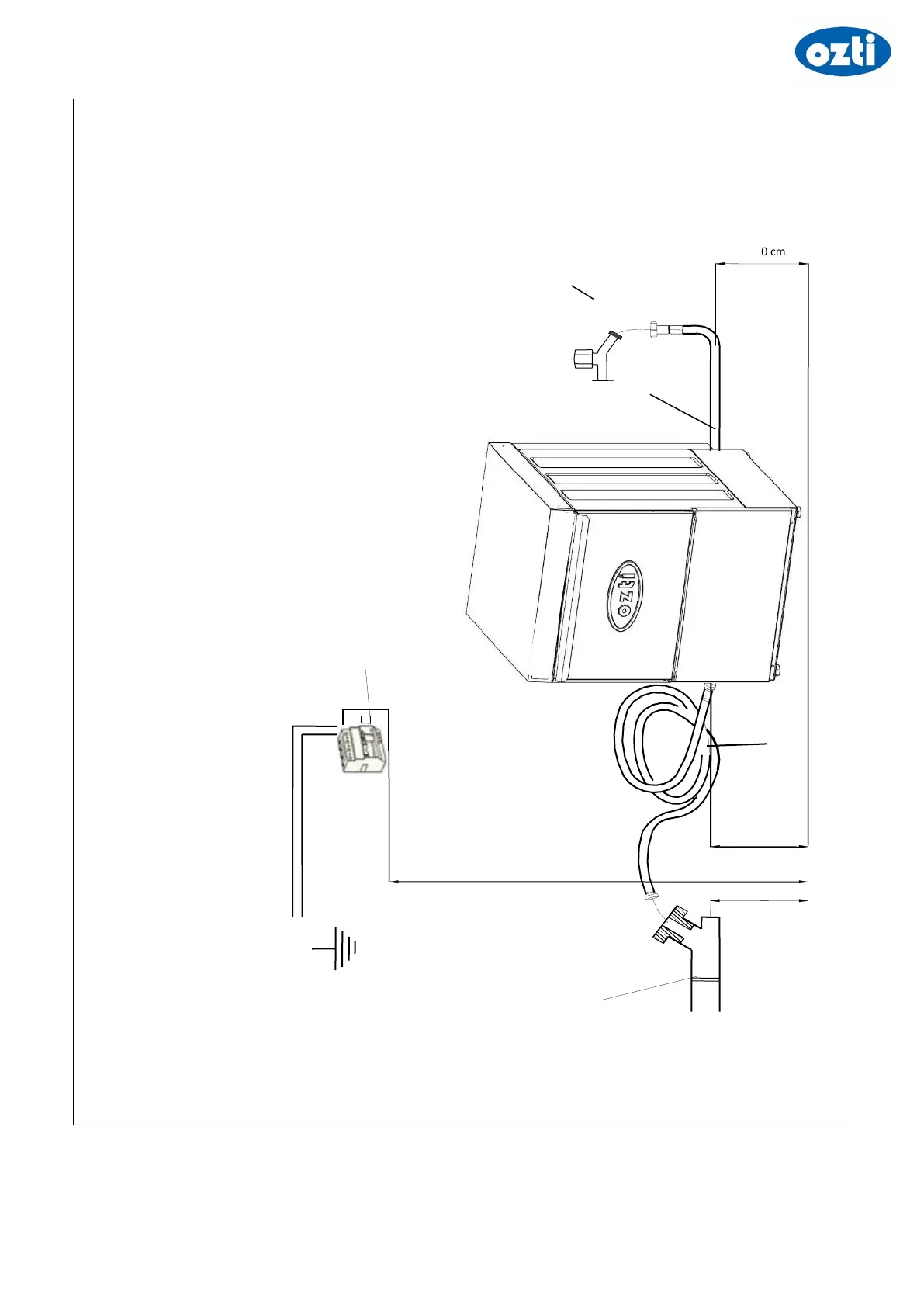

4.2 Installation Diagram
Min. 20 cm
Max.
1X32A
1.1-1x32A Fuse
3
Fuse Box
2.5
mm² Grounding
Cable
3x2.5 mm² ANTİGRON
CABLE
Drainage
Ø
50
Fresh Water Inlet
3
4
"
120 cm.
1-Fuse Box
1.2- 3x2.50 cable
2- Fresh water inlet;
3-Drainage;
1.1
2
3
Max. 5 cm.
5 cm.
1.2
REQUIRED ESTABLISHMENT OF THE MACHINE
