4- TRANSPORTING AND MOVING
 The machine should be placed vertically on a palette by manpower.
 Transportation should be carried out by inserting the forklift forks under the machine.
 If the transported distance is far, the machine should be moved slowly and fixed to the palette or supported
by another personnel to prevent jolt, if necessary.
 Do not hit or drop the machine when moving.
 Producer company is not responsible for the damage occurring during transportation of the machine.

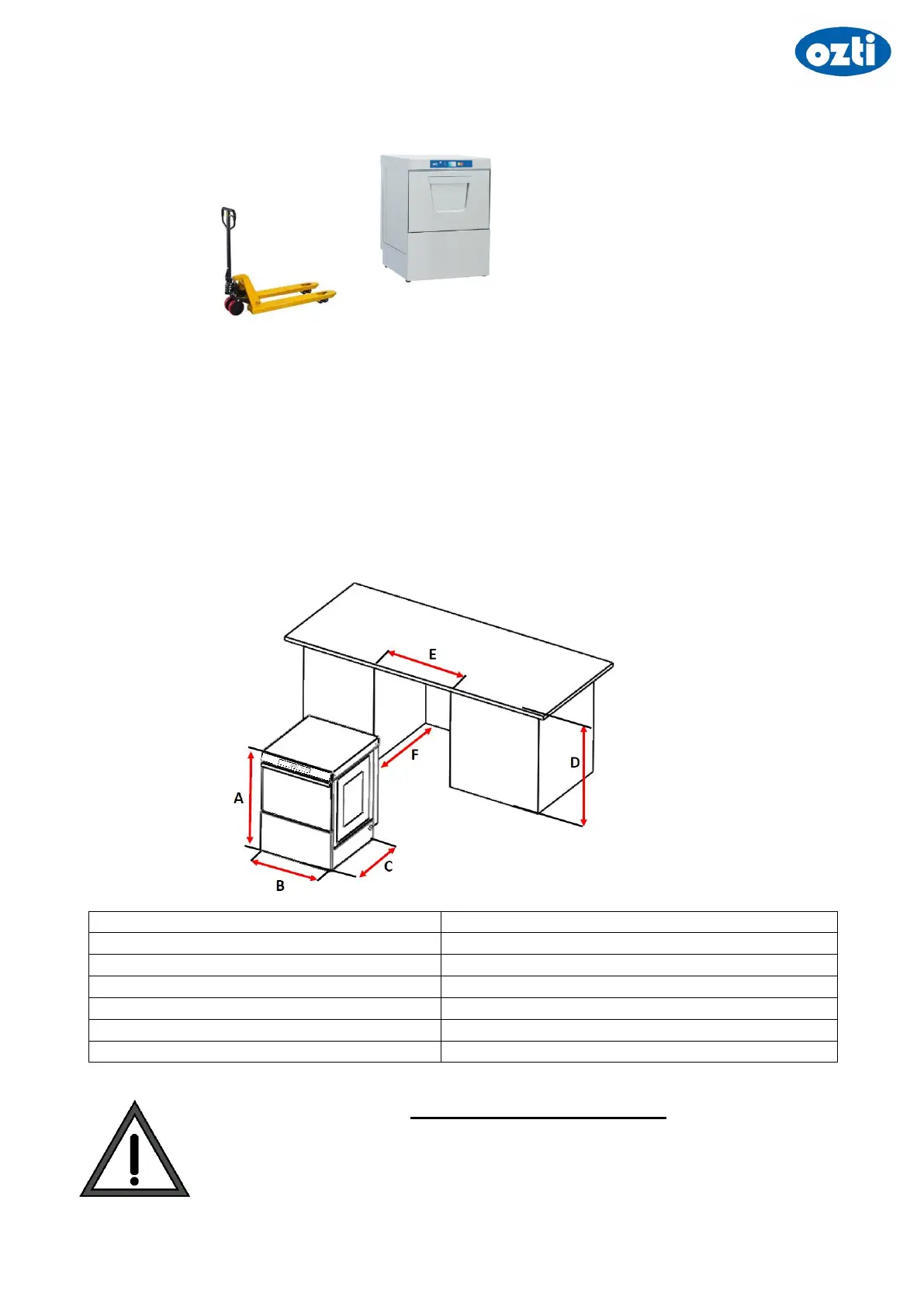

4.1 Assembly Place :
Dimensions:(mm)
OBY 40D / 500D
Height (A)
765 / 830
Width (B)
475 / 600
Depth (C)
550 / 655
Installation Place Height (D)
785 / 850
Installation Place Width (E)
480 / 605
Installation Place Depth (F)
580 / 685
CHANGING THE LOCATION ;
Machines installed by an authorized service CANNOT BE MOVED
ELSEWHERE, ITS CONNECTION HOSES AND CABLES CANNOT BE
EXTENDED OR REPLACED except by an authorized service.
