The lights’ devices NE230, called knots (picture 50), allow to manage the switching on/off of the lights
inside the motorhome; they are distinguished by the software coding with the letters A and B.
From each knot we can control up to 5 outputs and each knot can be connected to a maximum of three
little keyboards NE263 (picture 51). From some little keyboards pressing for a long time the buttons
it is possible to change the intensity of the corresponding light points. A 4 canals remote control in
equipped too(picture 52) with a determined frequency and a “rolling code” coding to avoid being cloned;
the smallest button is not controlled, while the other three, from the biggest to the smallest, control
respectively the switching on of the control panel, the outside light and the unloading tank’s light.

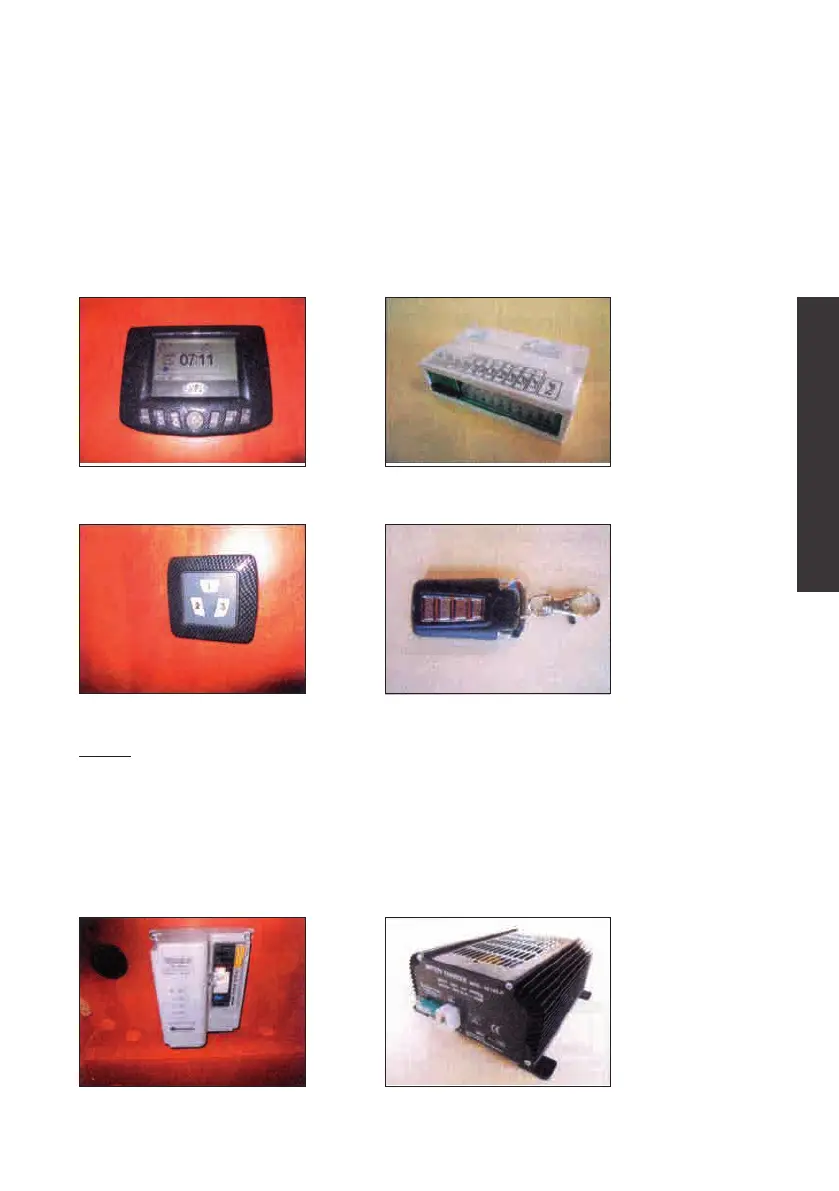

Pict. 49 – light device NE230 Pict. 50 – light device NE230
Pict. 51 – Ne263 little keyboard Pict. 52 – 4 canals’ remote control
Master
With the term master or shunt (picture 53) we identify the component that controls all outputs(lights,
aux, pump, 12V, little keyboards) against the entrance current coming from the battery charge(picture
54); in well visible position there are also the fuses for the safety of the circuit elements of the
system. This device is able to switch off automatically all loadings if the service battery stays under
9,5V for a longer time than one minute; in case that situation occurs, you must press the corresponding
buttons to give again tension.
Pict. 53 – Master Pict.54 – battery charger/feeder
