P.L.A. Plasy - Tyres pressure

Operating and maintenance manual – ENGLISH
44

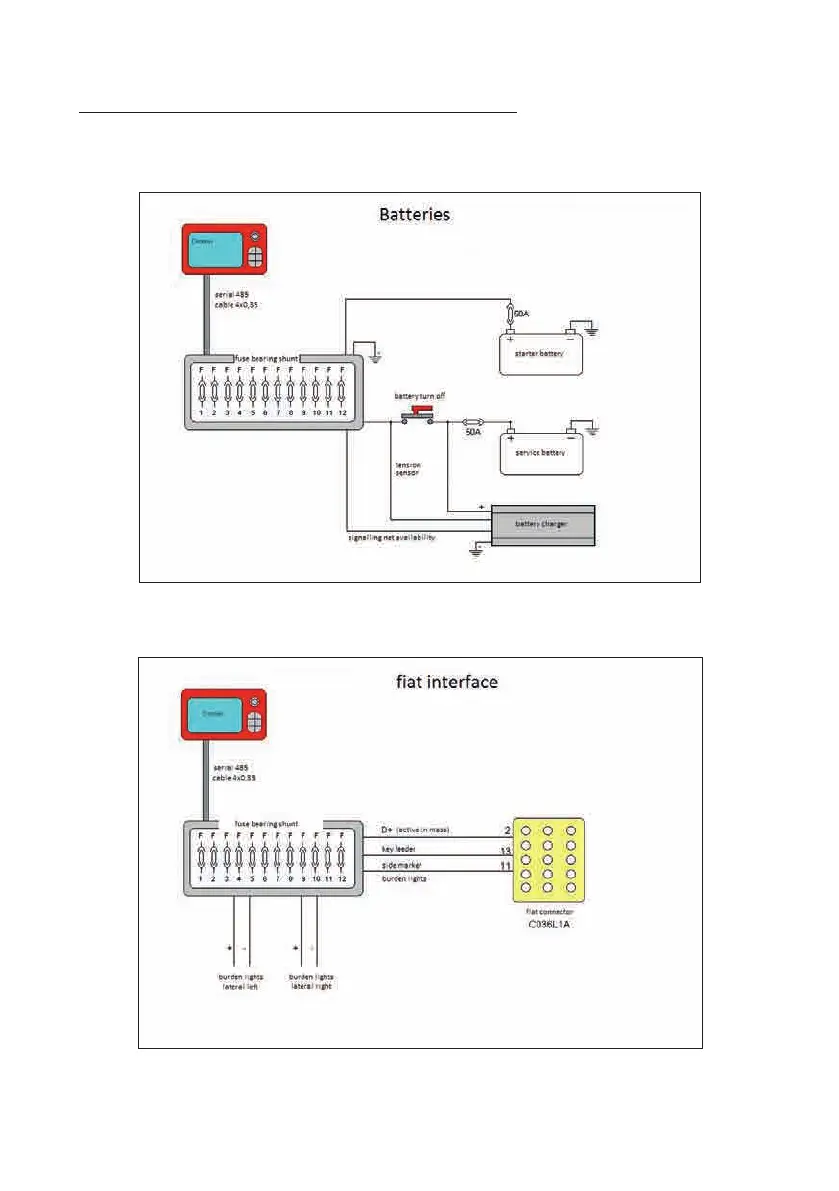

Electrical scheme of a traditional system(general principles)
Below you nd the electrical connections between fuse bearing shunt and the main electrical outputs;
in particular:
Pict. 01
Pict. 02
