15 MAN 9054233_9054739_9058170 DK V4
P. Lindberg A/S Sdr. Ringvej 1 www.p-lindberg.dk
Tlf: 70212626 DK-6600 Vejen e-mail: salg@p-lindberg.dk
Samlevejledning til metalskærme
Vigtigt! Boltene samles kun løst i trin 1-7 skal ikke strammes! Den endelige
tilspænding af delene foretages først når skærmen er placeret på stellet og er blevet
endeligt tilpasset i trin 11.
Trin 1
Find et godt og stabilt sted til monteringen af skærmene
Læg højre og venstre skærme og U-profilerne ud
Sørg for at hullerne (A) vender den rigtige vej (samme retning).
Trin 2

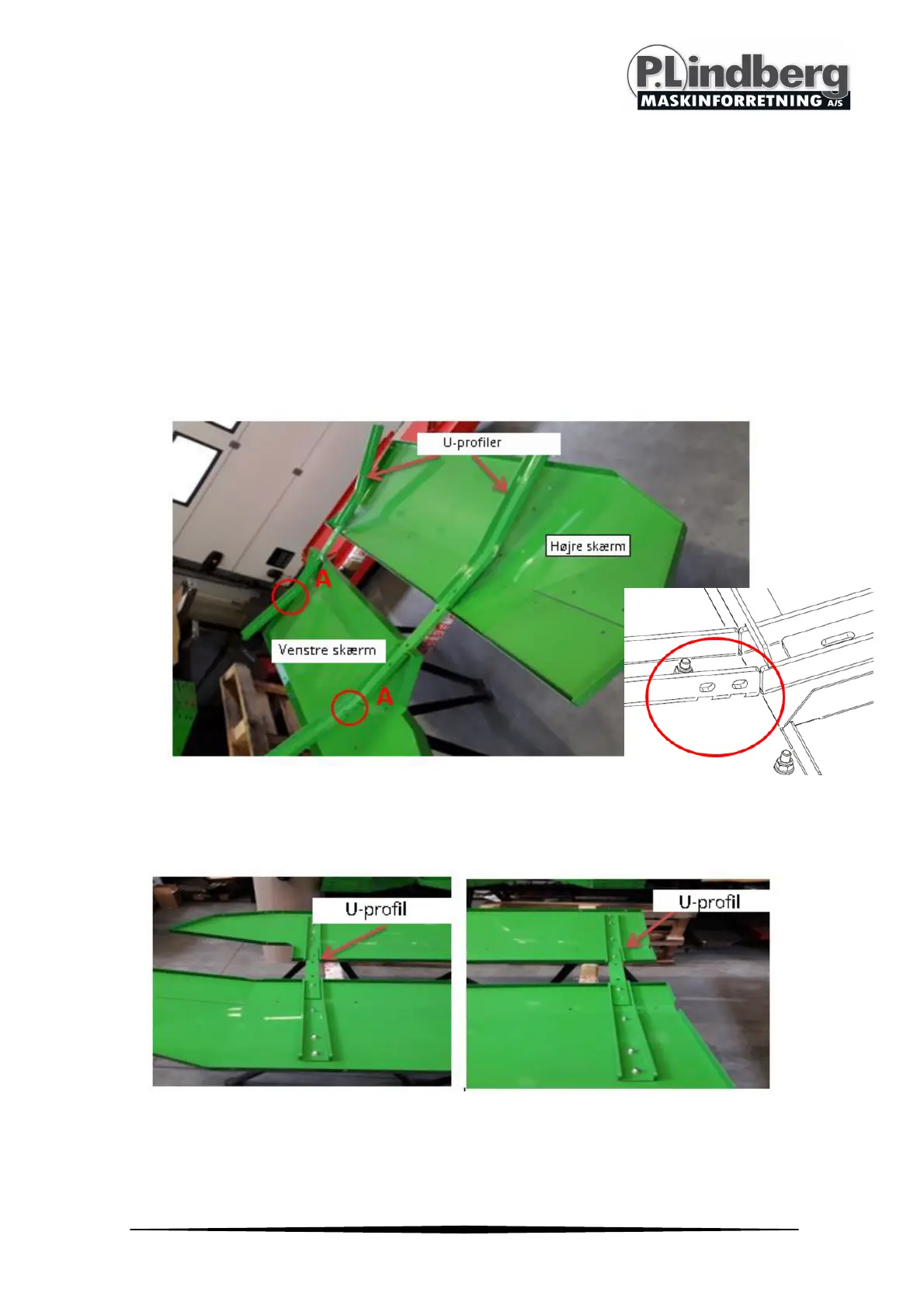

Fastgør de U-profilerne til højre og venstre skærm som vist i nedenstående illustration:
Nedenstående figur viser hvilke bolteelementer der anvendes i trin 2-5:
Detalje A
