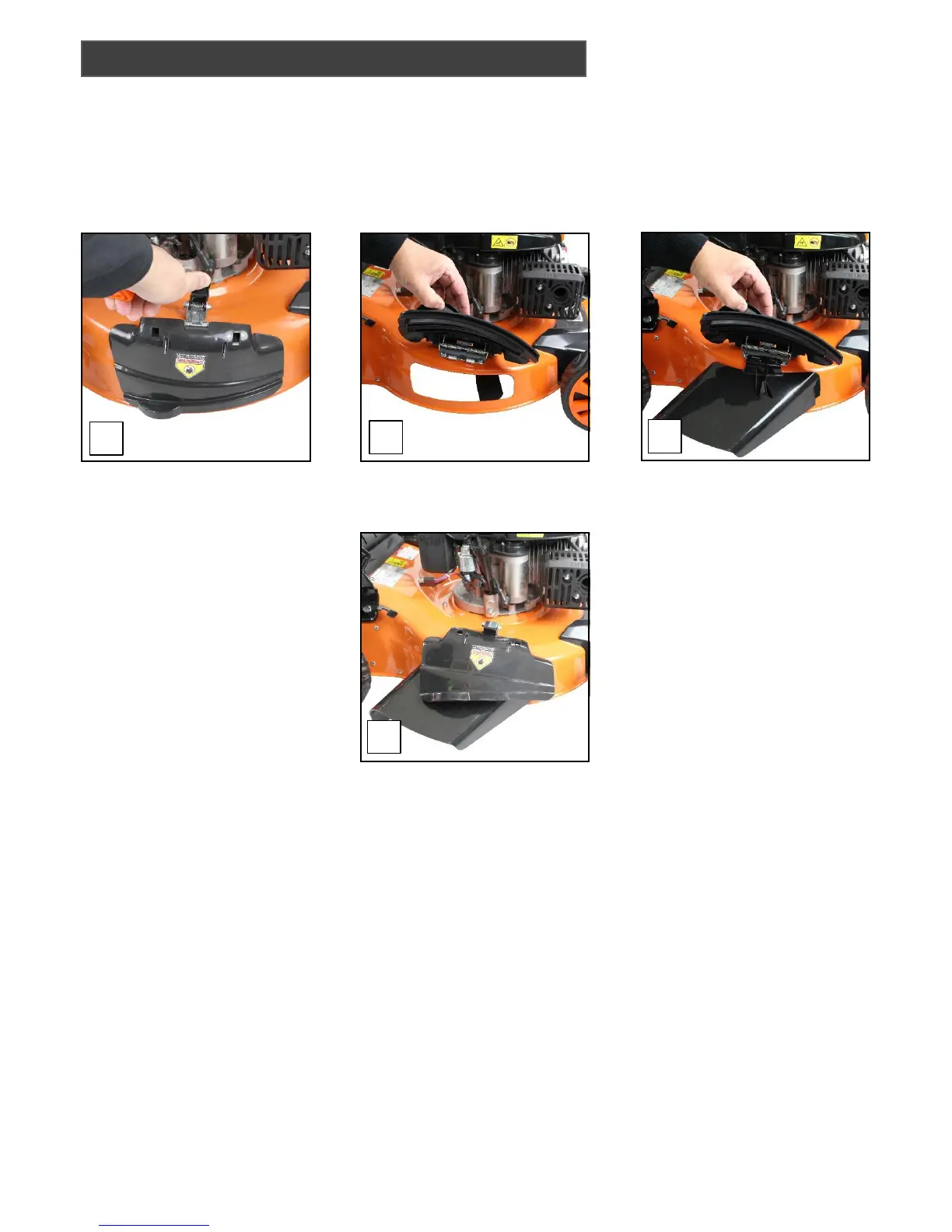

6.28 Lift the locking tab on the side discharge flap (1).
6.29 Lift the side discharge flap to show the two discharge chute tabs (2).
6.30 Hook the side discharge chute over the two tabs (3).
6.31 Lower the side discharge flap so it rests on the top of the side discharge chute (1).
SIDE DISCHARGE MOWING
1
2
3
1
