Paccar MX-11 Programming Guide

PEC017
5/3/2018 Page 21 of 105
EIST Shutdown on the Driver Display

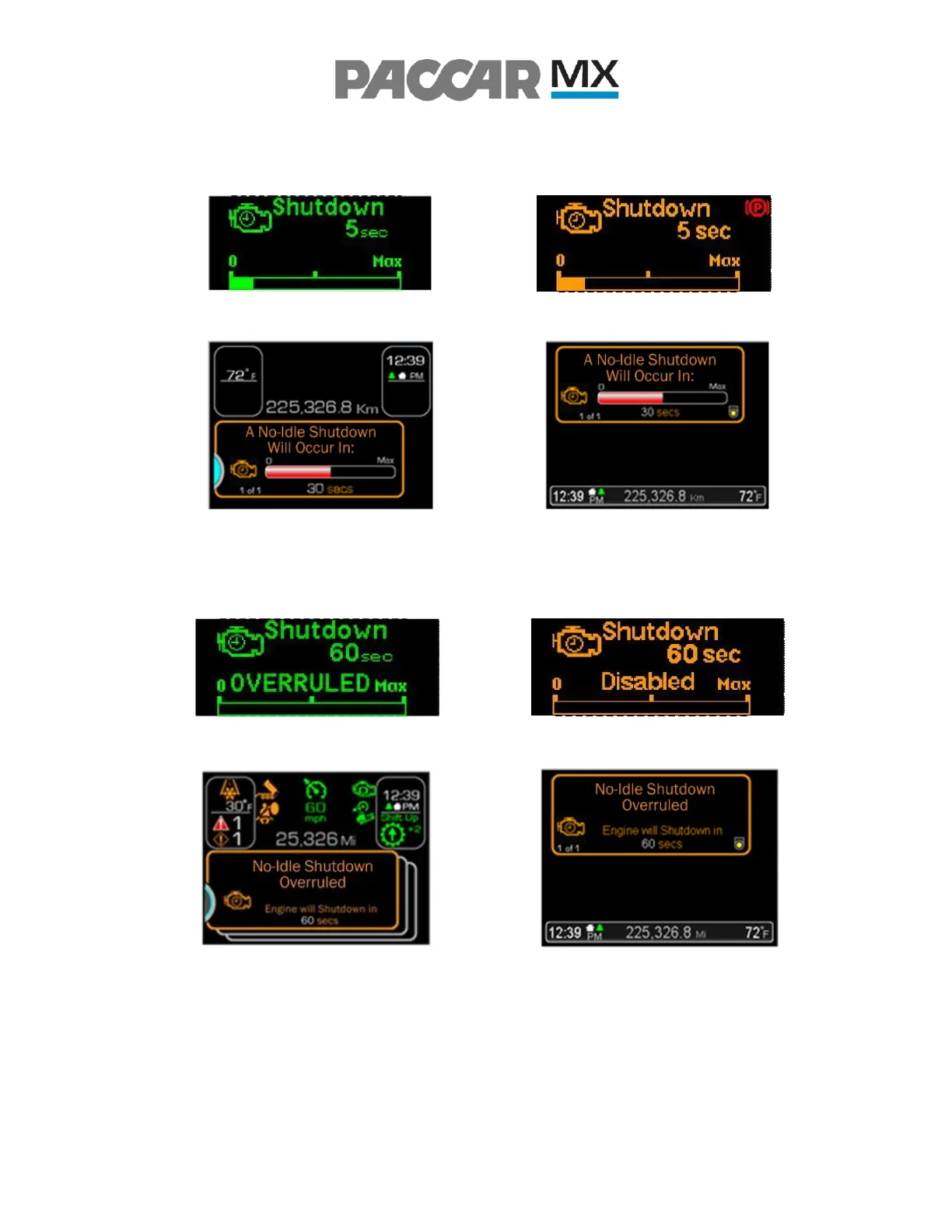

Figure 6.2 and Figure 6.3 show examples of indication screens after the engine is
about to be shutdown by the EIST.
Figure 6.2 – Small Display: Left:Kenworth, Right: Peterbilt
Figure 6.3 – Large Display: Left:Kenworth, Right: Peterbilt
Figure 6.4 and Figure 6.5 show examples of indication screens when the EIST is
overruled.
Figure 6.4 – Small Display: Left:Kenworth, Right: Peterbilt
Figure 6.5 – Large Display: Left:Kenworth, Right: Peterbilt

Paccar MX-11 Specifications

General

Engine Type	Diesel
Displacement	10.8 liters
Configuration	Inline 6-cylinder
Torque Range	1250-1700 lb-ft
Bore	123 mm
Stroke	152 mm
Fuel System	Common rail
Compression Ratio	17.5:1
Emission Standard	GHG17
Aspiration	Turbocharged
Emissions	SCR
Weight	2200 lbs
Coolant Capacity	40 liters
