3. Turn the screw cap clockwise to
unlock the centrifuge base.

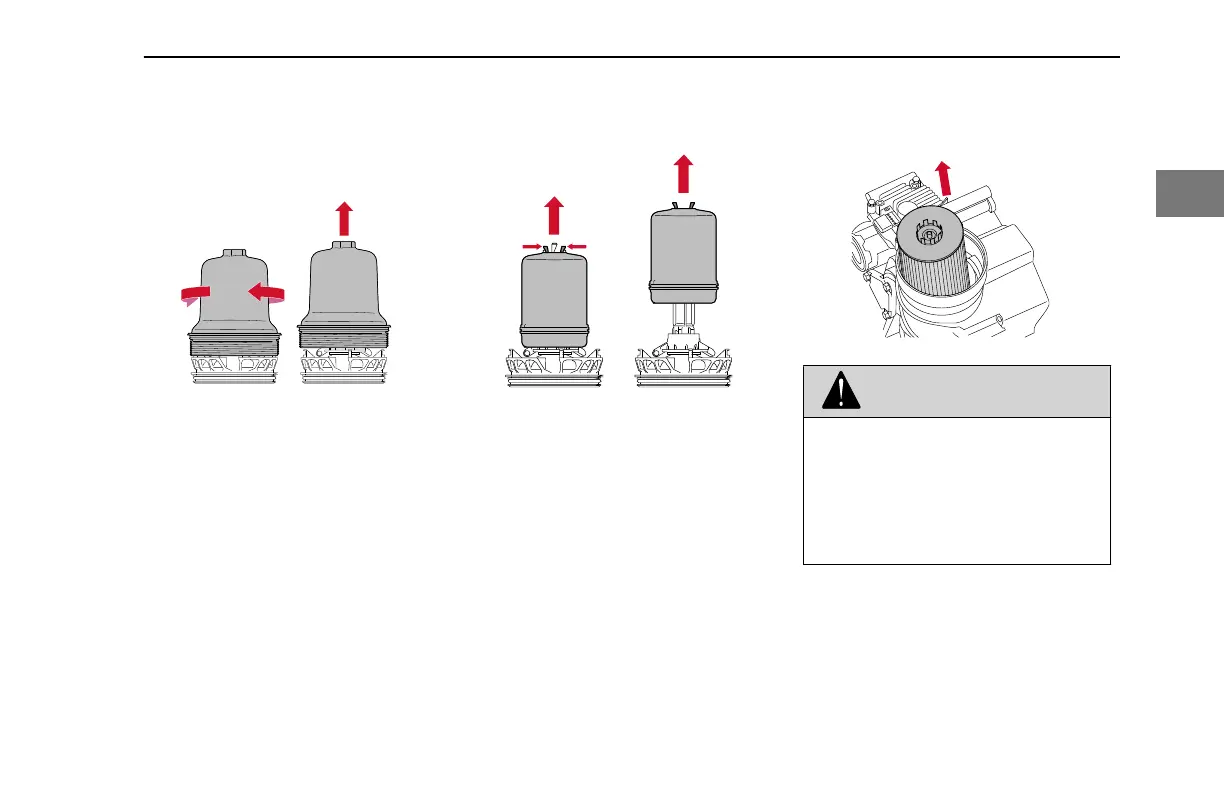

Unlocking the Centrifuge Base
4. Press the clips (1) and dismount
the centrifugal oil filter element
from the centrifuge base.
Removing Centrifugal Oil Filter
5. Remove the O-rings from the
screw cap and centrifuge base.
6. Turn the lower cap 1/4 turn to
release the cap.
7. Remove the O-ring from the lower
cap.
8. Remove the full-flow oil filter from
the oil module.
Removing Full-flow Oil Filter
WARNING
Lubricating oil can cause skin irritation
or skin injury. To prevent skin injury,
avoid unnecessary contact with the lu-
bricating oil. Wear protective clothing,
eye wear, and gloves when handling
lubricating oil. Failure to comply may
result in personal injury.
ENGINE MAINTENANCE - Maintenance Procedures
Y53-1166-1M1 (10/2020) 71
