- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲ INSTRUCTION MANUAL

3601 E. 34th St. Tucson, AZ 85713 USA Tel. +1 520-882-6598 Fax +1 520-882-6599 email: pace@metallographic.com Web: http://www.metallographic.com

Please read this instruction manual carefully and follow all installation, operating and safety guidelines.

NANO 2000T Polisher

1.4 Features

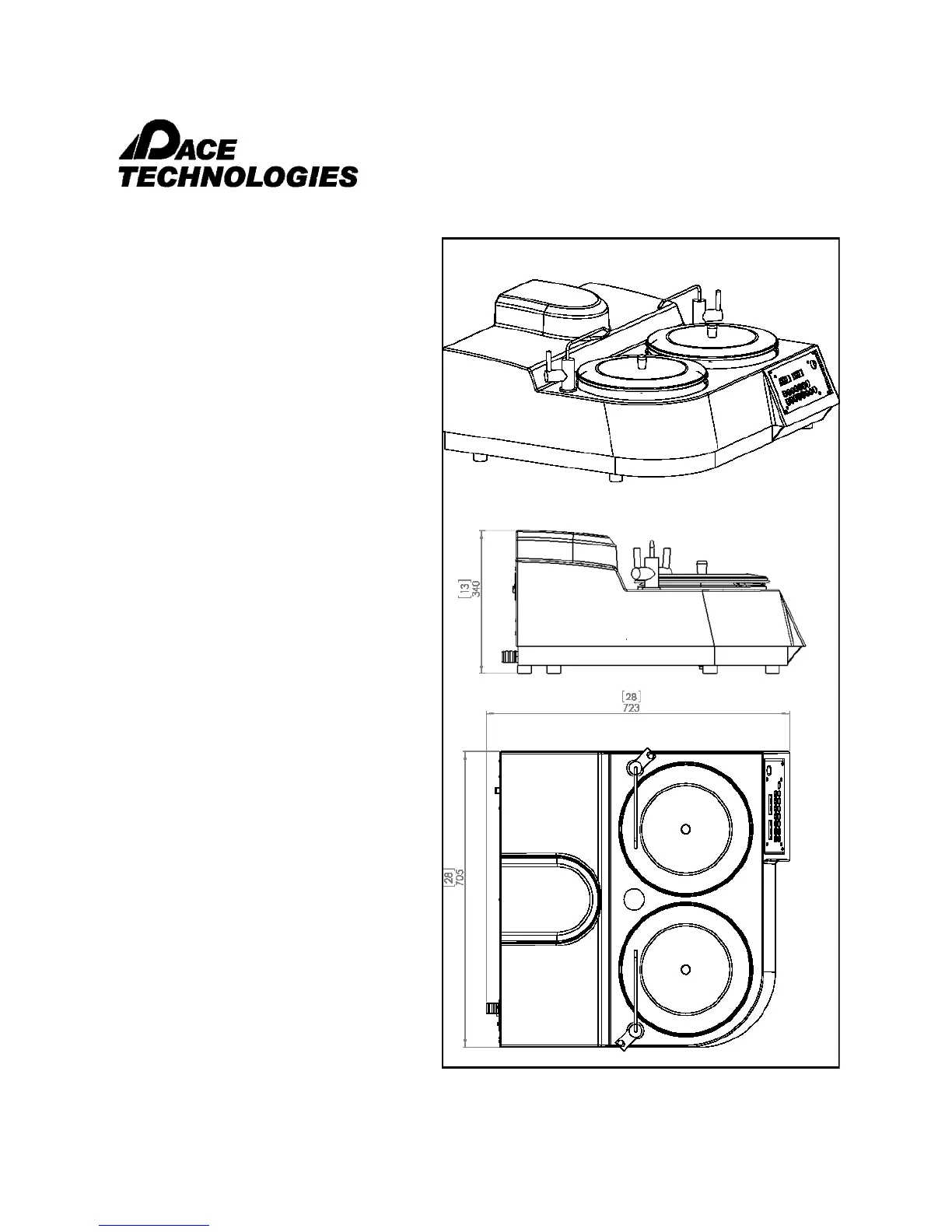

1.3 Mechanical Schematic

Note: Installation of the NANO 2000T

should be on a flat sturdy surface, with

easy access to drain, water and

electrical connections.

The NANO 2000T is equipped with a

powerful motor, connected to the polishing

wheel through a maintenance-free V-belt.
