Pace Technologies TERAPRESS TP 7500S - Electrical and Mechanical Drawings

59 pages

To Next Page

To Previous Page

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲ INSTRUCTION MANUAL

TERAPRESS TP 7500S

Mounting Press

Please read this instruction manual carefully and follow all installation, operating and safety guidelines.

3601 E. 34th St. Tucson, AZ 85713 USA Tel. +1-520-882-6598 Fax +1-520-882-6599 email: pace@metallographic.com Web: https://www.metallographic.com

9.0 Electrical and Mechanical Drawings

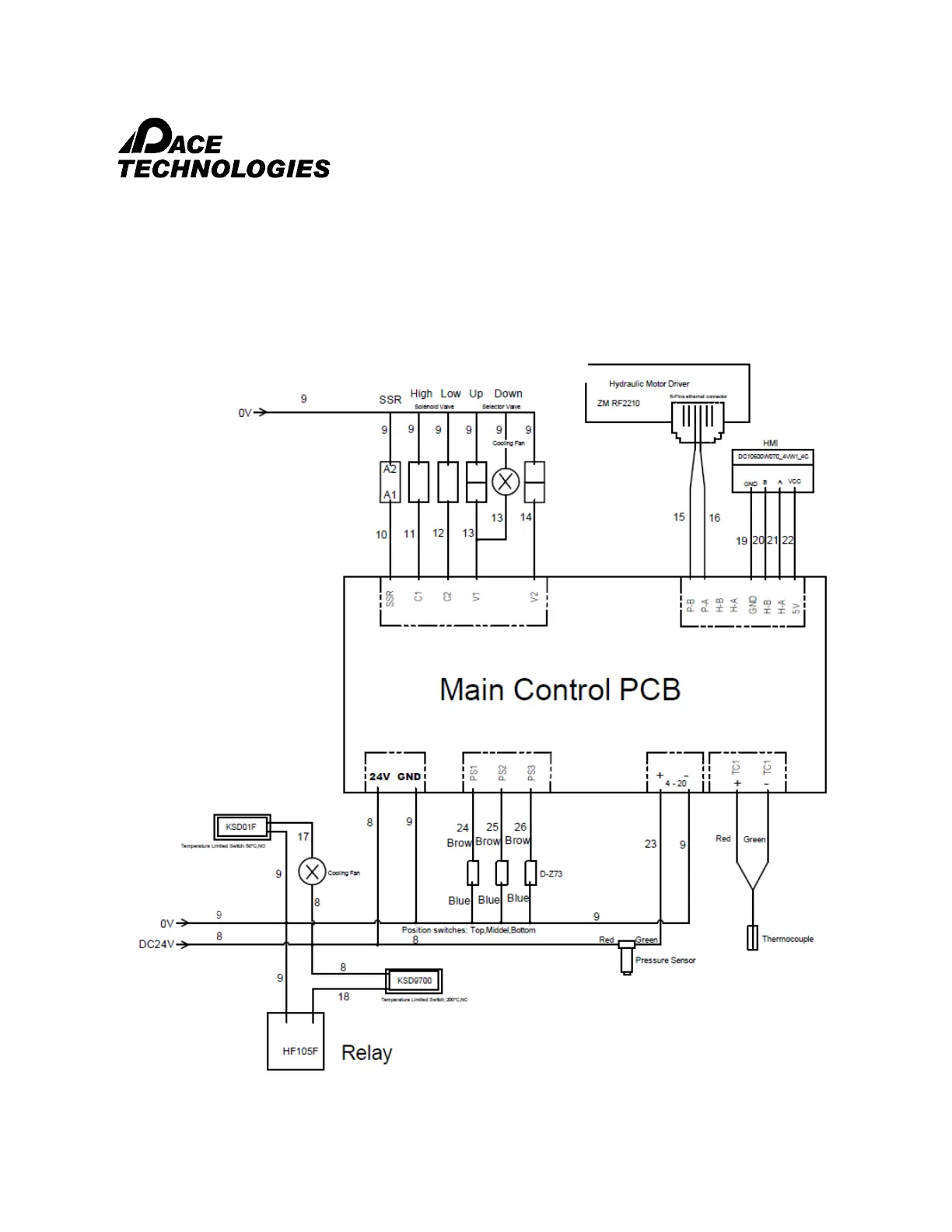

9.1 Wiring Diagram
