Assembly (cont’d)

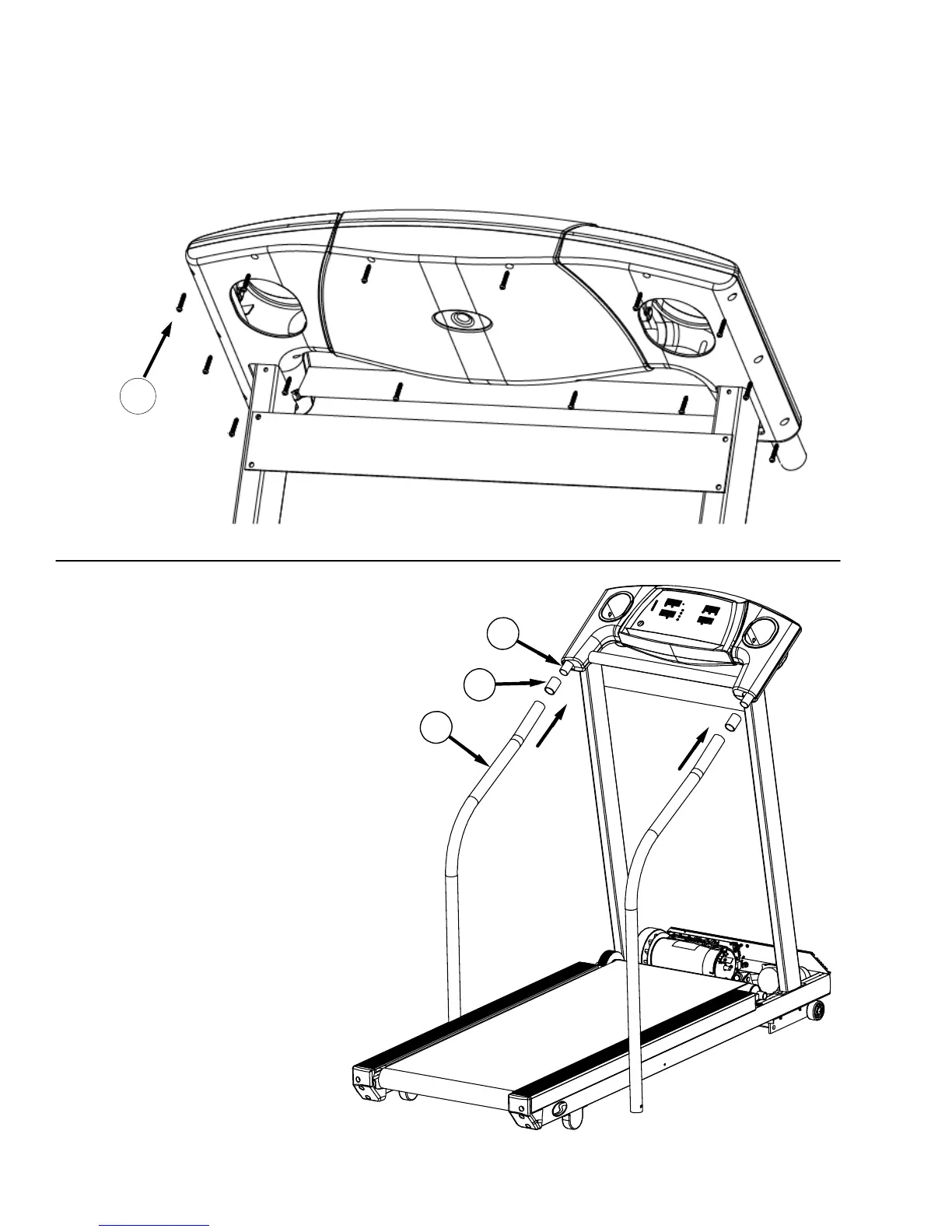

Step Seven:
Screw together the two halves of the control panel using the 14 one inch pan head screws (17). Start with the screw labeled 17 and
proceed in a clockwise tightening sequence.
17
Step Eight:
Insert side rail spacer (18) onto the black
panel support tube (12). Slide side rail (19)
over the spacer. Repeat procedure on
opposite side of the machine.
Note: Make sure the siderail (19) slides all
the way into the panel.
19
18
12
17
