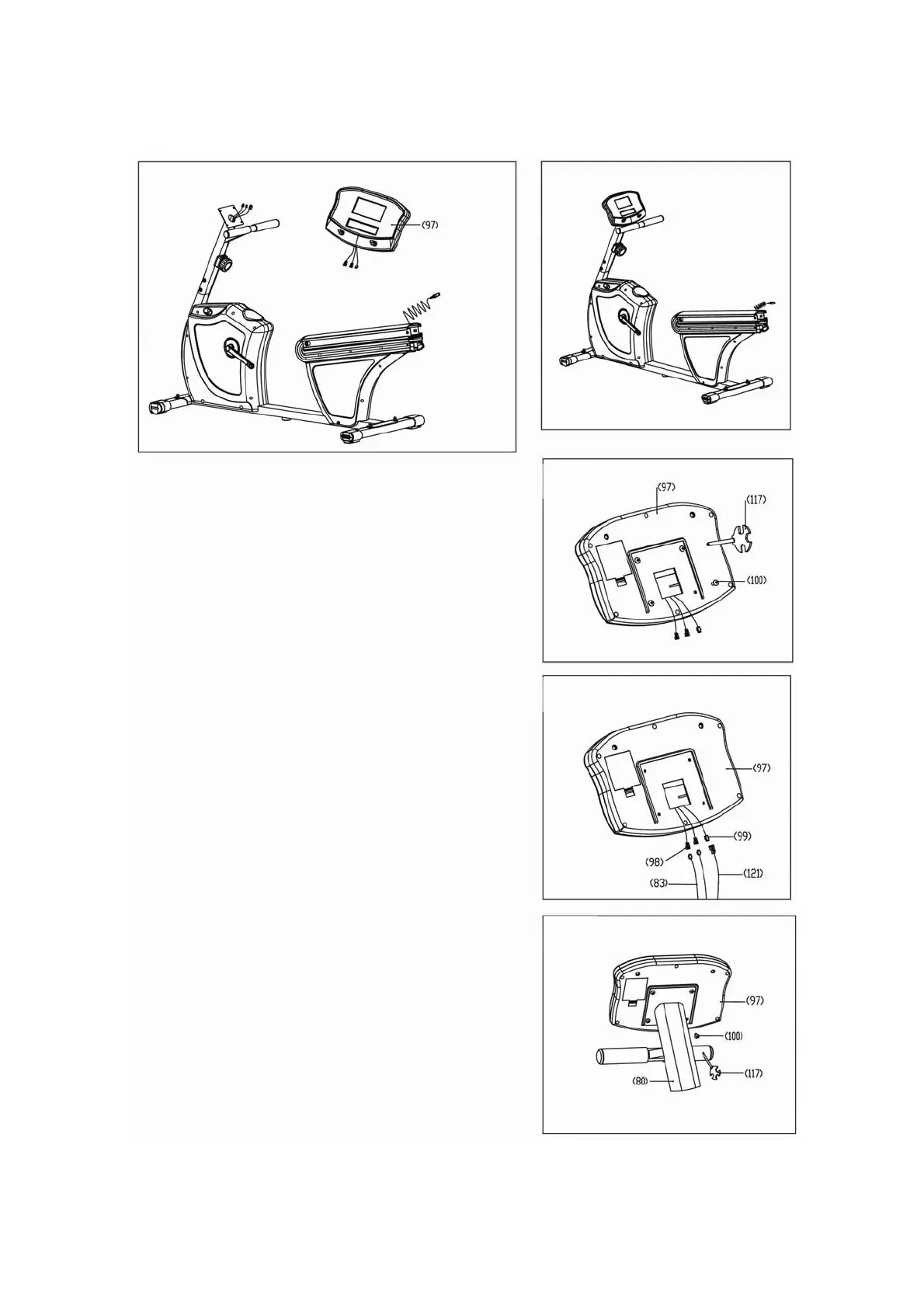

5. To assemble the Computer
Step 5C: Attach the Computer (97) to the Upright (80) with
the 4 Phillips head screws (100) removed in Step A above.
DO NOT PINCH the wires when securing the computer (97)
to the mast (80).
Step 5B: Connect the 2 pairs of contact heart rate wires (98)
to (83) and (99) to (122). Then connect the main power
wires shown in the center of Fig B to the right.
Step 5A: Remove the 4 mounting screws (100) from the
back of the Computer (97) with a Phillips head screw driver.
C
B
A
12
To Next Page
