PaceMaster Bronze XRC - Page 8

1. Assemble the Front Stabilizer
A

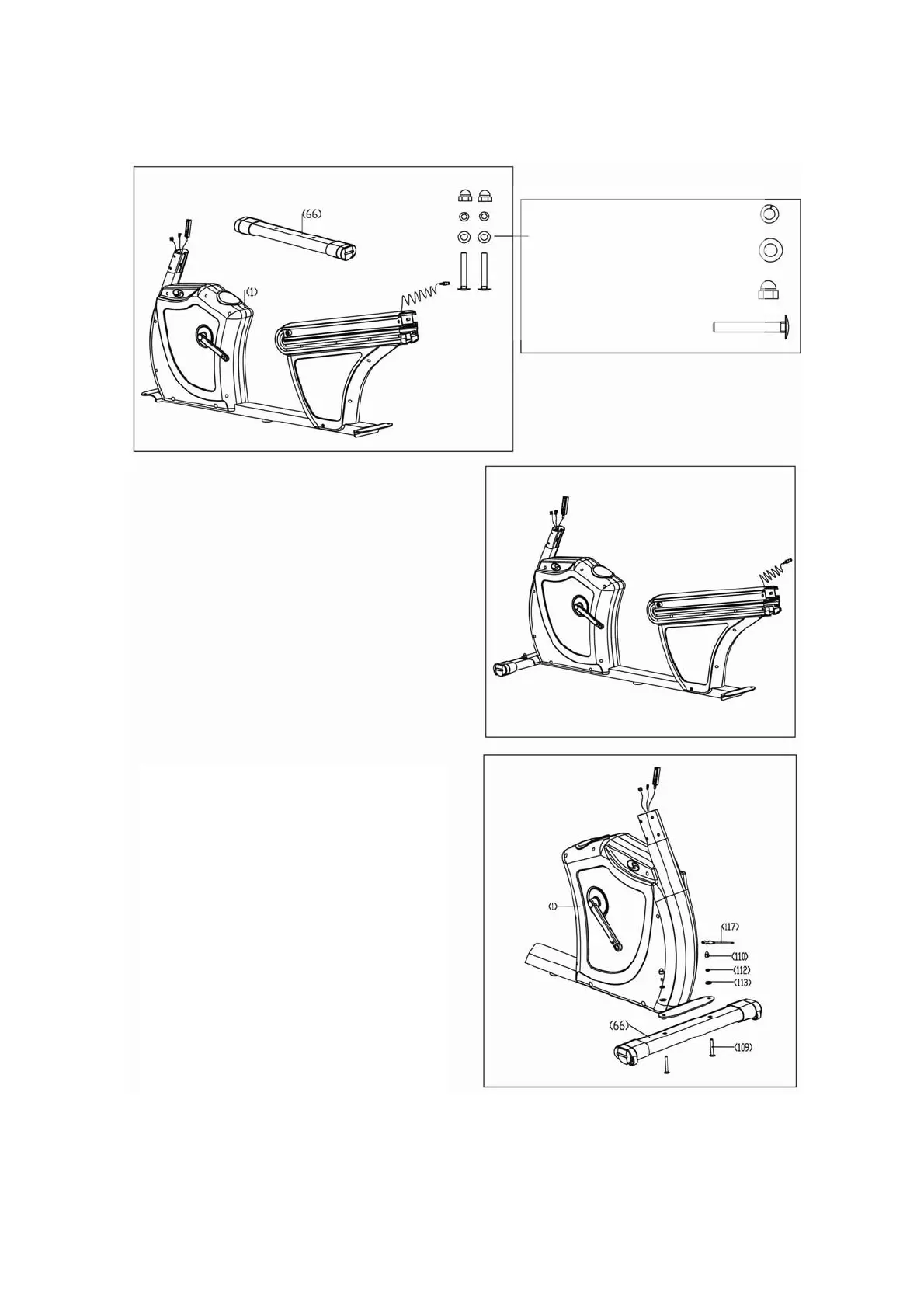

STEP 1A: As shown to the Right, attach the
Front Stabilizer (66) to the Frame (1) with Bolts
(109), Washers (113) (112) and Acorn Nuts (110),
then tighten the nut with the included wrench (117)
or a 13mm wrench or socket.
Note: The front Stabilizer (66) is the one that
has the WHEELS ON IT, AND the wheels must
be towards the front.
Spring washer M8х2.0t—2PCS(112)
Washer 20х9х2.0t—2PCS(113)
M8 Acorn Nut—2PCS(110)
Bolt M8х56—2PCS
(
109
)
8
