33

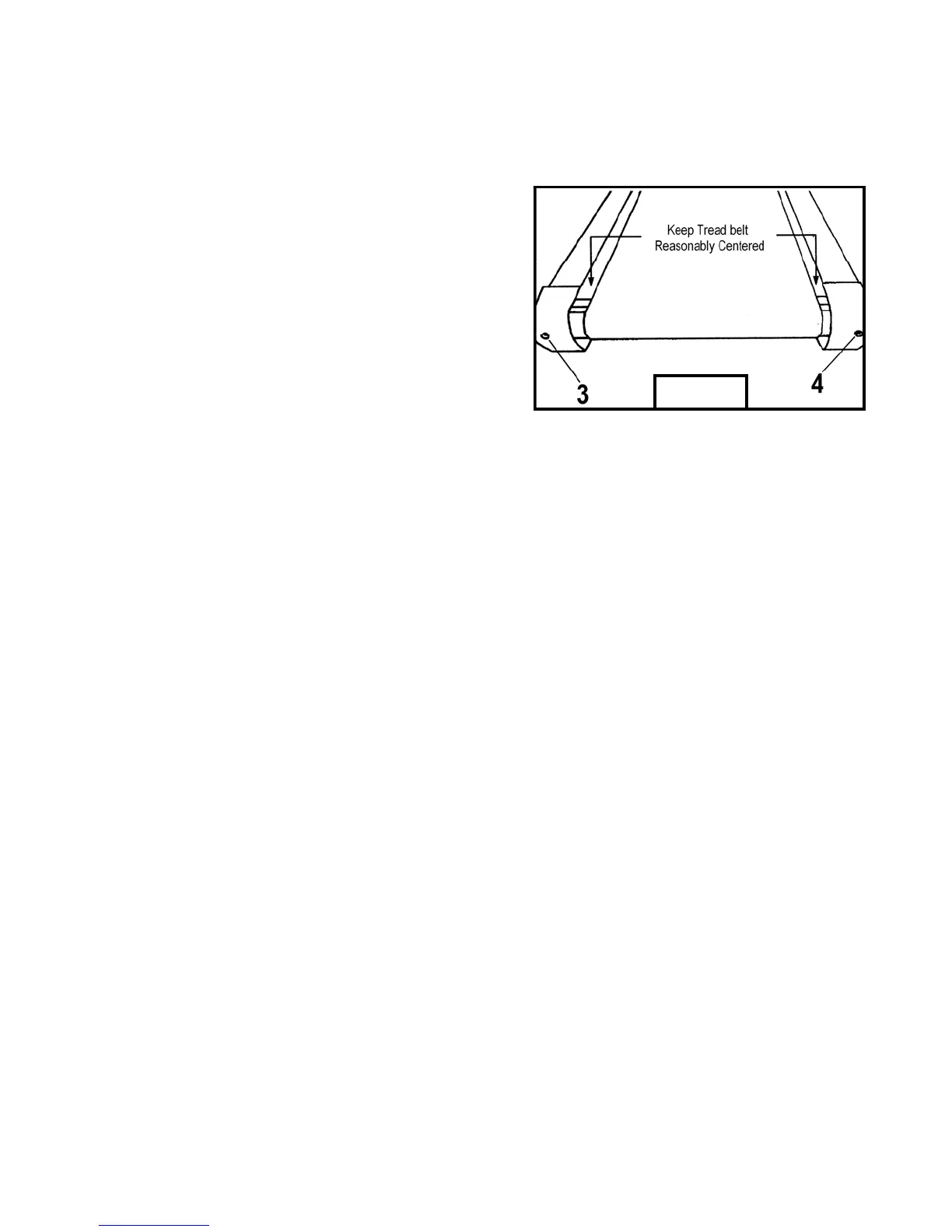

Figure 9
TROUBLESHOOTING (cont’d)
Tread Belt Tension Adjustment
Step One:
Locate the two tread belt adjustment screws (#3 & #4 in fig 9) as shown.
Step Two:
Turn both the left and right tread belt adjustment screws 1/2 turn clockwise.
Step Three:
Walk on the treadmill to see if the adjustment you made decreased the
slippage.
Step Four:
If a significant decrease in slippage was observed, go to step 2. If you
tighten the tread belt 1 1/2 turns per side and slippage is still present, do not
continue to adjust the tread belt tension. Contact your authorized
PaceMaster dealer.
