5. To assemble the Seat, Handrail, Seat Sliding Base, Plastic Cushion
and Rear Covers

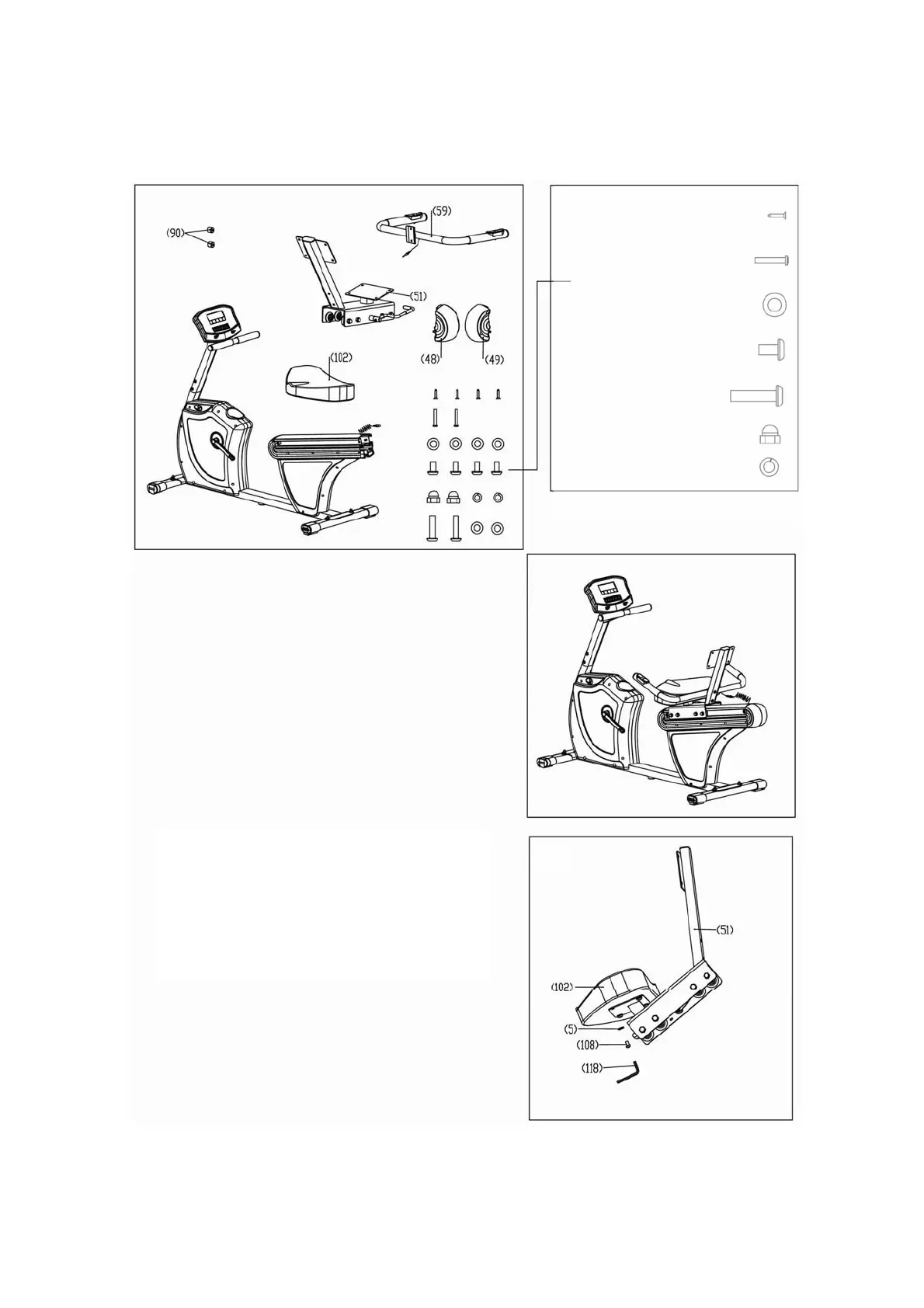

Step 5A:
Attach the Seat (102) to the Seat Base (51)
with Bolts (108), Lock Washers (5) using the
6mm Allen Wrench (118).
A
Self Tapping Screw
ST4.0x25—4PCS (41)
Allen Bolt
M6х35—2PCS(91)
Washer18x9x2.0t—6PCS(5)
Allen BoltM8x15—4PCS(108)
Allen Bolt
M8x45—2PCS(114)
M8 Acorn Nut—2PCS(110)
Spring Washer M8x2.0t—2PCS(112)
12
To Next Page
